Monitoring Critical Links with Port Groups
EPICenter Concepts and Solutions Guide
75

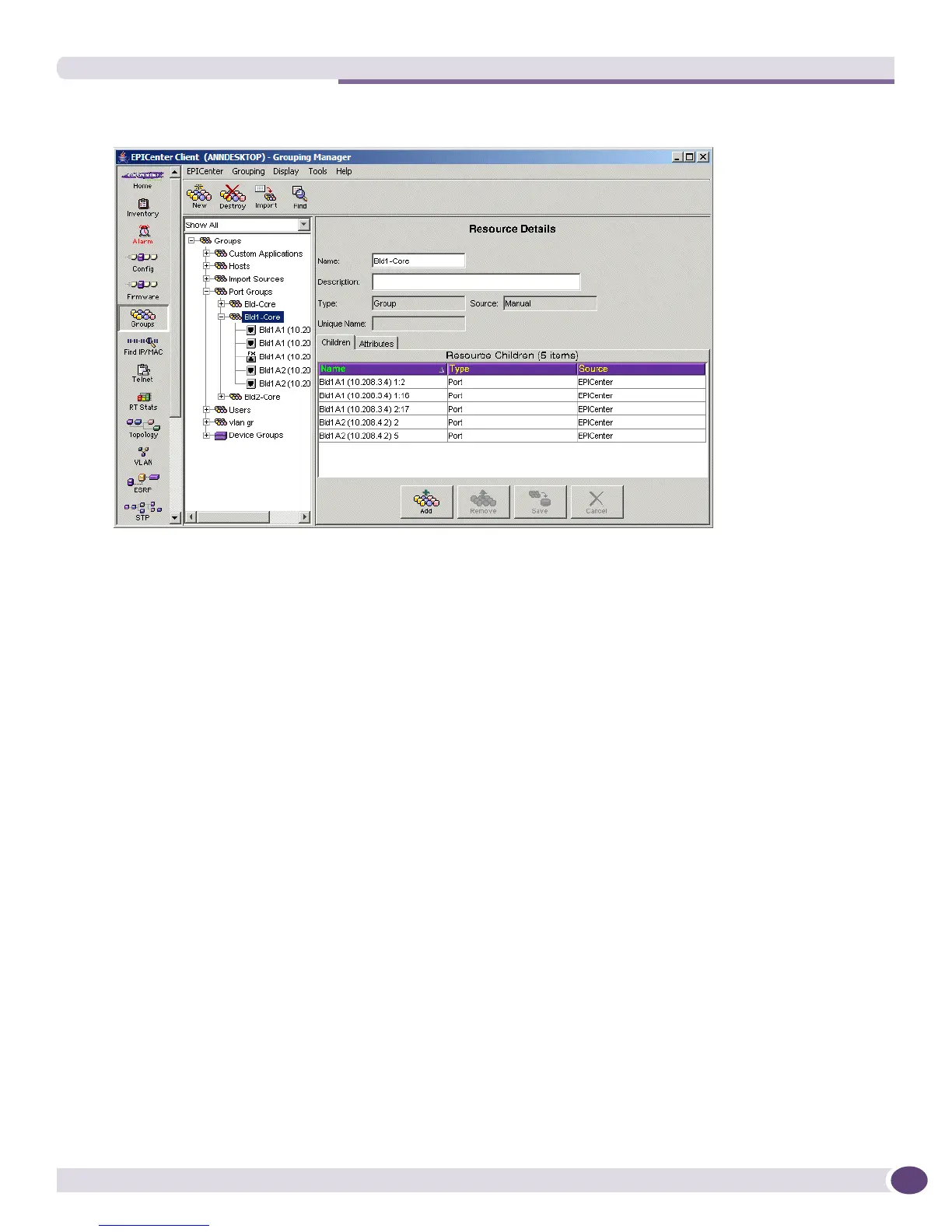

Figure 32: A port group defined in the Grouping Manager
Figure 32 shows a port group as defined in the Grouping Manager for the uplink ports on the core
devices in a specific building.
Figure 33 shows a utilization chart for the ports in the same port group. Even though the ports are on
different devices, they can be grouped into a single statistical display, which makes it very easy to
monitor the status of these critical links.
