DTP CrossPoint 84 Series Matrix Switchers • Matrix Software 119
Selecting a building block
Select a hand-held microphone configuration as follows:
1. Open the Building Blocks dialog box: Click the Mic Input1 number box (see
figure65,
1
). The Building Blocks dialog box opens.
Click the number.A Building Block dialog box opens.
The modules in the box are dependent on the
device type clicked.
In this example, mic modules are shown
because a mic input was selected.
11
1111
1111
1111
1111

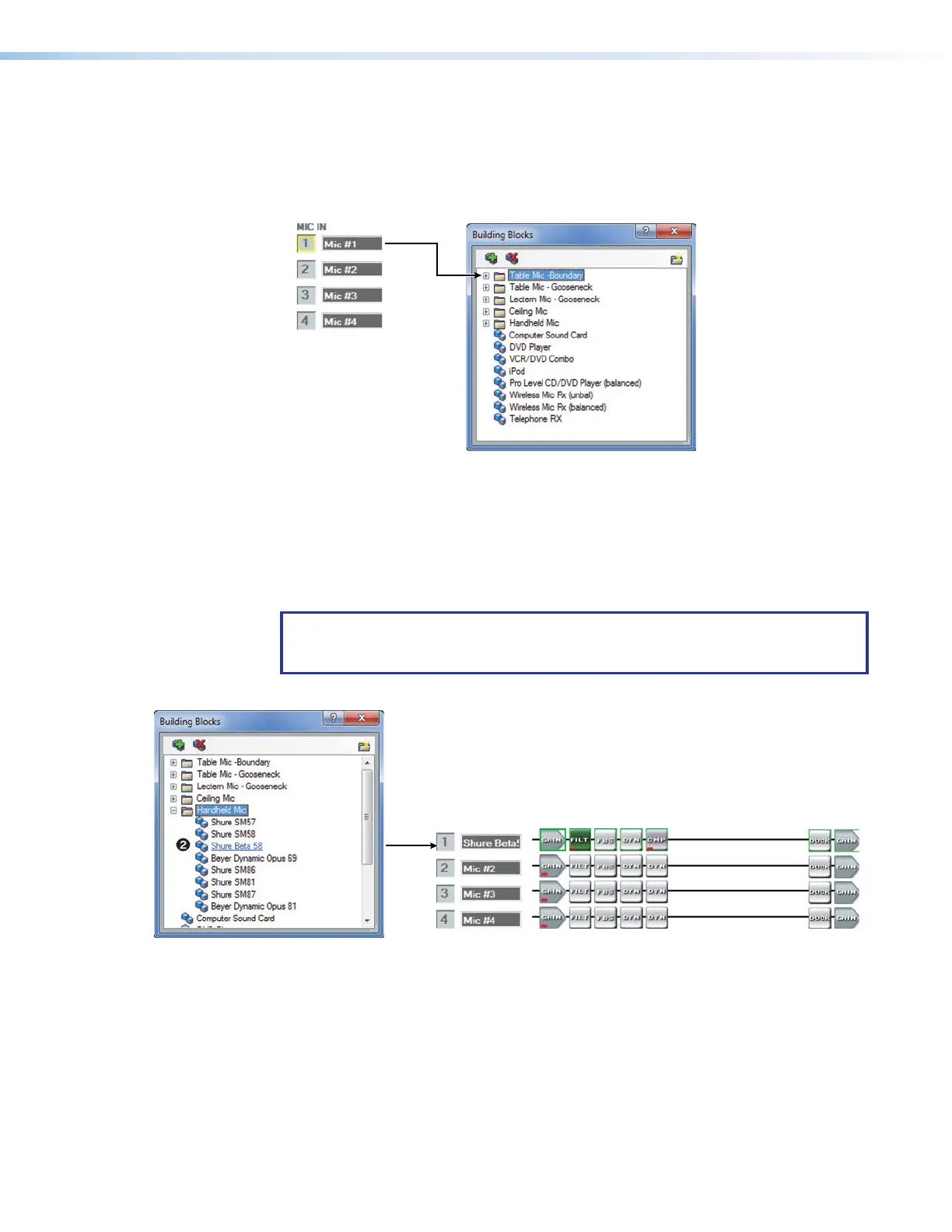

Figure 65. Building Blocks Dialog Box
2.
Select the desir
ed building block: Click Shure Beta 58 (see figure66,
1
). The input
channel loads the pre-configured processor blocks, sets the gain, and renames the
channel Shure Beta 58.
NOTE: Common devices may be grouped in folders. If necessary, click a folder
(Handheld mic in the example below) to open it and make the building blocks
available for selection.
Click the desired input device.
The input device name and the processor chain change to shows the adjustments.
11
1111
1111
1111
1111
Figure 66. Selecting a Building Block
