FieldServer LonWorks ProtoNode - RWF40 or RWF55

Page 21 of 97 PN: 106417-05
3.8 RWF40 or RWF55

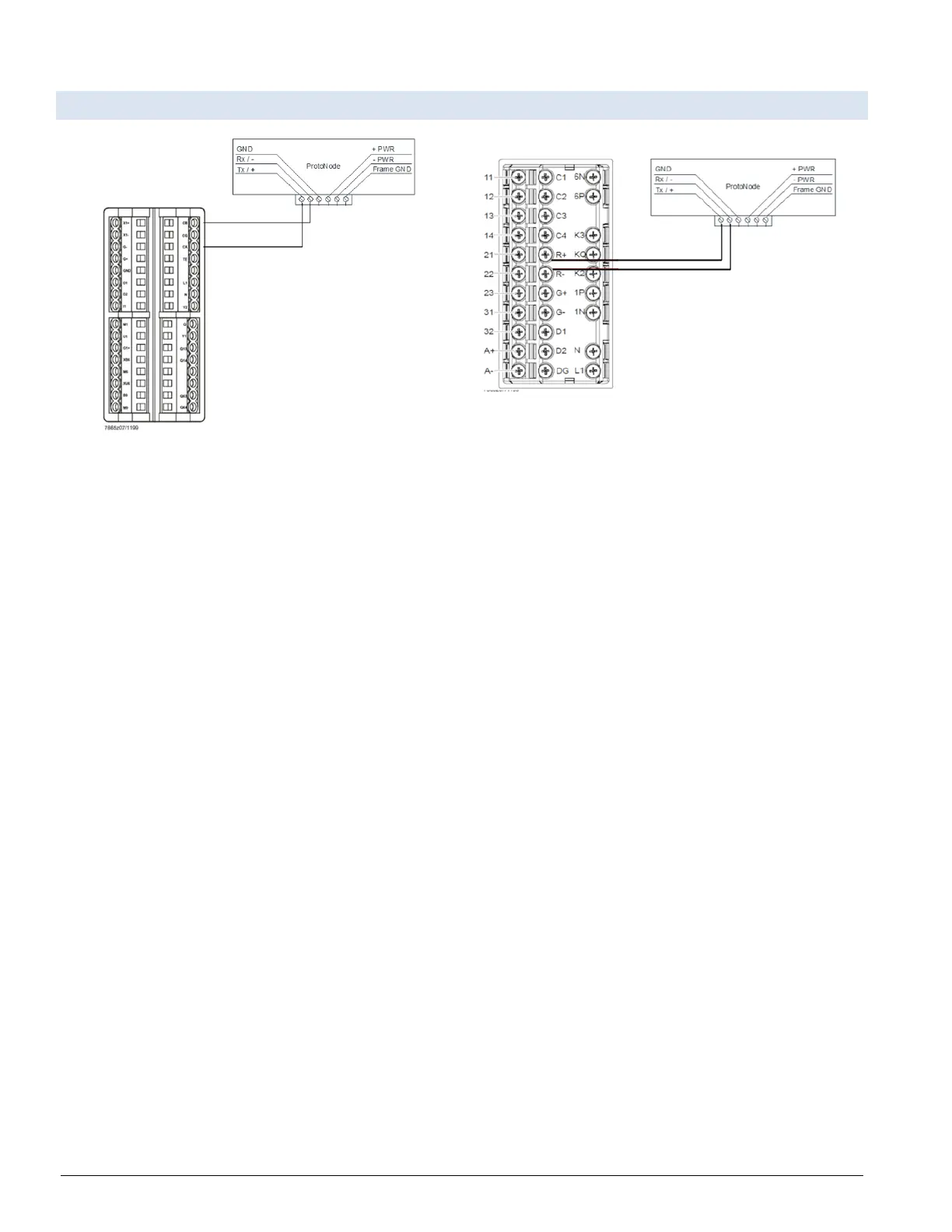

Figure 3-14: RWF40 and RWF55 Modbus RS485 Wiring
NOTICE:
• Connect terminal CA (RWF40) or R+ (RWF55) to Pin 1 (RS-485+) on the ProtoNode.
• Connect terminal CB (RWF40) or R- (RWF55) to Pin 2 (RS-485-) on the ProtoNode.
• CG (Ground) terminal does not need to be grounded to the RS-485 Ground port of ProtoNode.
RWF40 Wiring
RWF55 Wiring
