3.3 Thermal Solutions Boiler Control (TSBC) and Sage Boiler Control (SBC)
• The Modbus communication connects to the same RJ11 port that is used by the boiler-to-boiler
communication.
• Connect one end of the RJ11 cable to the TSBC and cut off the other end of the cable to access the individual
wires of the RJ11 cable. Wire the RJ11 cable as shown above.
O+
O+
O-
O-
R+
R+
R-
R-
DP
LR
RO
SI
C
C
C-
C+
RJ45
RJ11
ProtoNode
RS485 GND
RS485 -
RS485 +
+ PWR
- PWR
FRAME GND
1
2
3
TSBC:
RJ11 6-wire
1 –> Pin 2 or Pin 5
2 –> Pin 3 or Pin 4
3 – Unused
T
T
Multiple Boilers
Outside Air and Remote
Temperature Sensor
Sharing
Spare Input
Remote ON/OFF (Enable) Input
Local/Remote Input
Domestic Hot Water T-Stat Input
Remote System Temperature
10k Ohm Thermister
Outside Air Temperature
10k Ohm Thermister
Remote Control 0-10 VDC
(Remote SP or Modulation Rate)
RJ11 Wire
TSBC: RJ11 4-wire
1 –> Pin 1 (Black) or Pin 4 (Yellow)
2 –> Pin 2 (Red) or Pin 3 (Green)
3 –> Unused

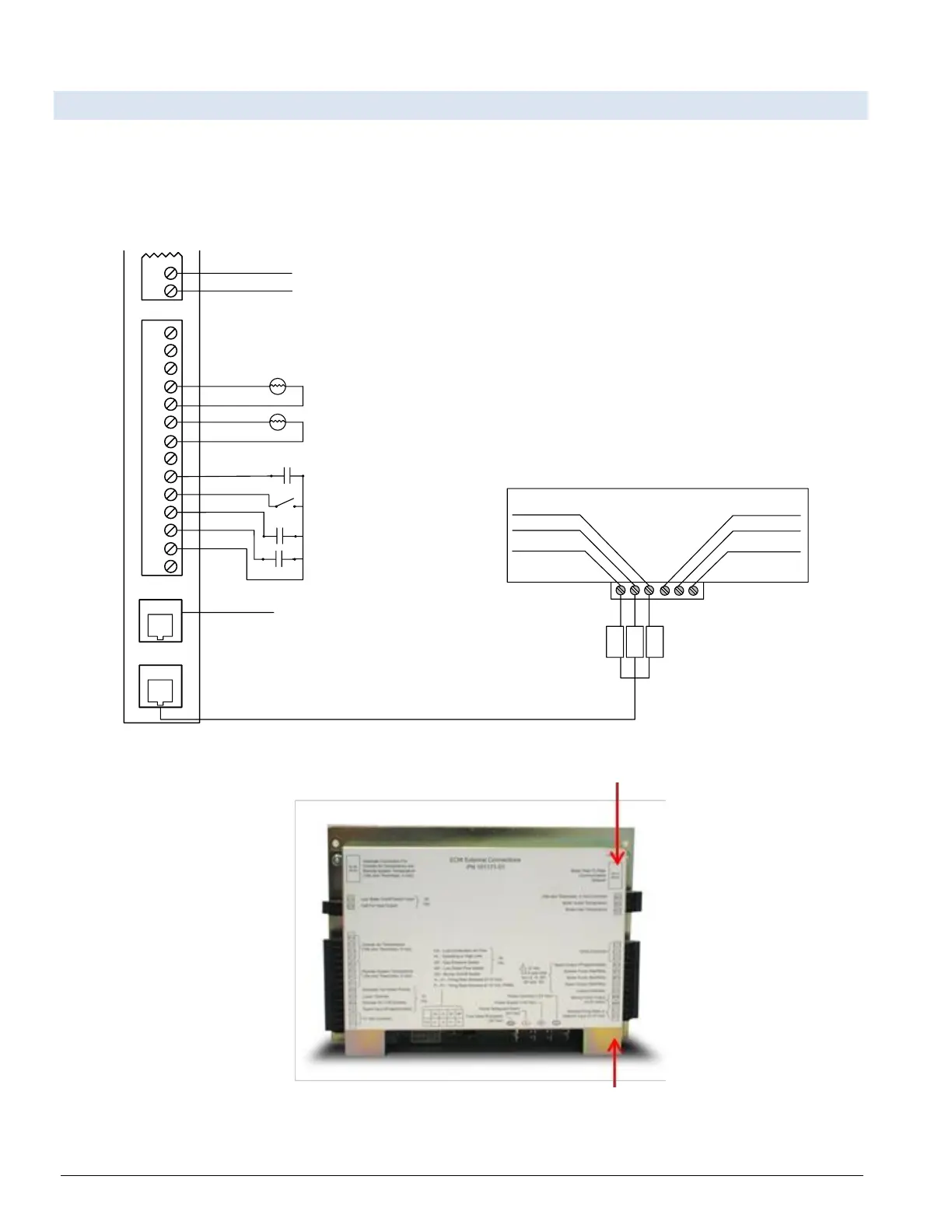

Figure 3-4: RJ11 connection, from the back, on right-hand side of TSBC/SBC Control
Figure 3-5: Jumper LR to C if you are writing to the boiler controls.
