Page 96 of 97 PN: 106417-05

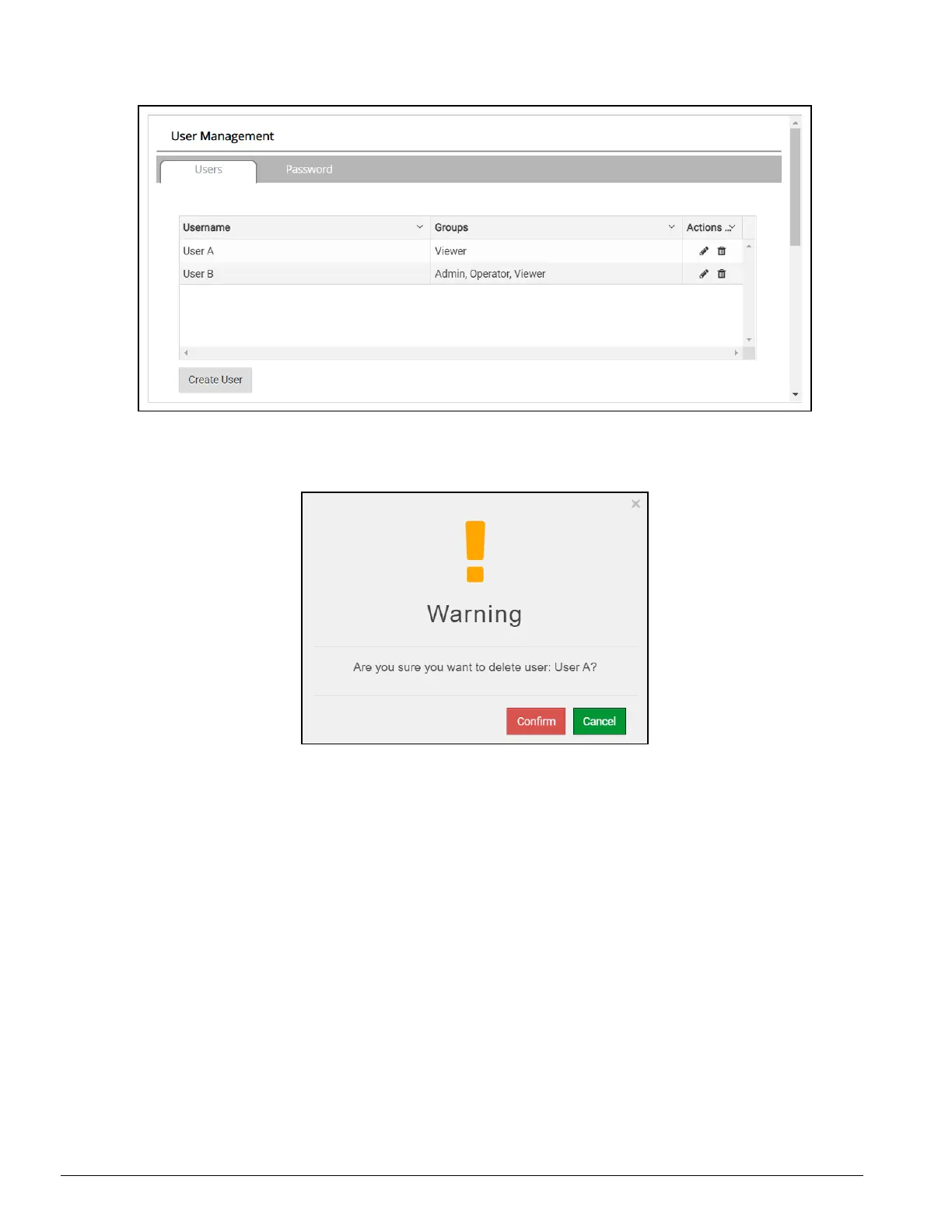

Figure Appendix B-17: Grid User Deletion Page

• When the warning message appears, click Confirm.

Figure Appendix B-18: Grid User Deletion Warning Page
