FIK-RA100 Remote Annunciator Installation Control Panel Installation
FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021 31

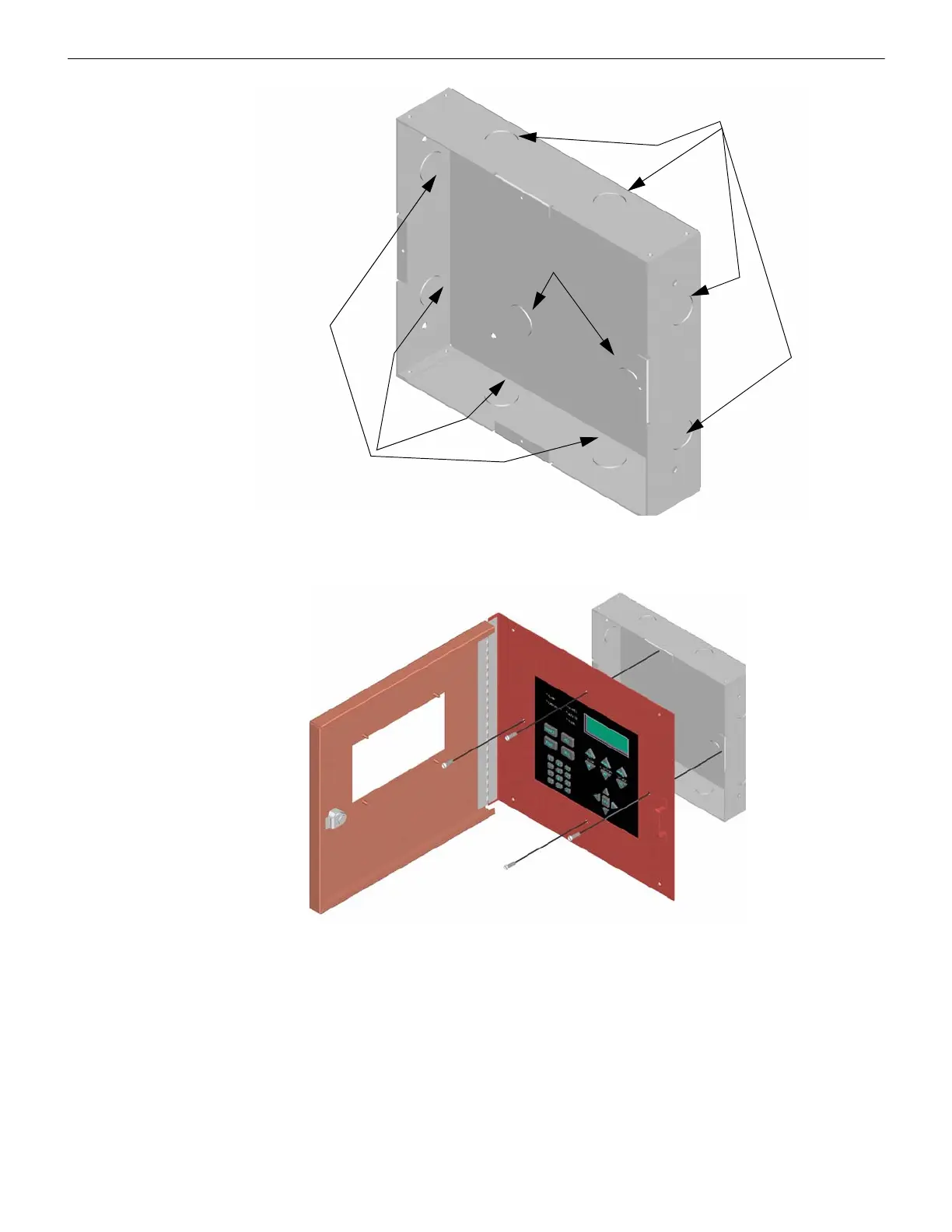

Figure 4.11 Back Box Knockout Locations
8. Wire the Annunciator board to the main control panel. See Figure 4.8.
9. Attach the annunciator and door assembly to back box as shown in Figure 4.12 using the supplied screws.
Figure 4.12 Attaching Annunciator/Door Assembly to Backbox
Surface Mounting
The optional Model FIK-RA100TR Trim Ring Kit is available for use when surface mounting.
1. Remove the desired knock out. See Figure 4.11.
Wire Knockouts
Wire Knockouts
Wire Knockouts
