32 FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021
Control Panel Installation FIK-RA100 Remote Annunciator Installation
2. To properly mount the back box, insert a single screw into the key shaped mounting hole. Do not tighten all the way. See
Figure 4.13. Place a level on top of the back box, with the back box level insert the rest of the mounting screws.

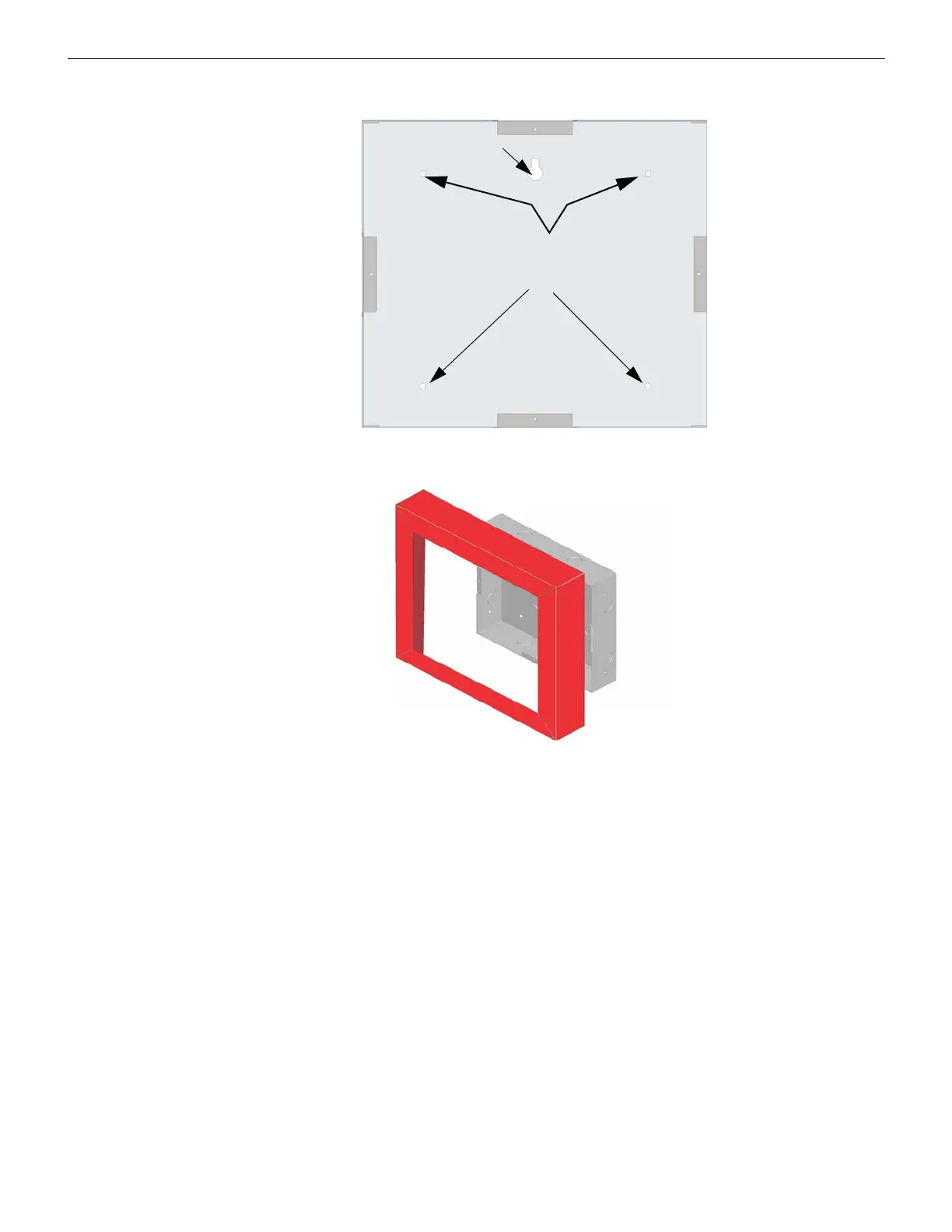

Figure 4.13 Back Box Surface Mount Holes
3. Run wires to the control panel.
4. Place the trim ring over the back box as shown in Figure 4.14.
Figure 4.14 Trim Ring Installation
5. Attach the Door assembly to the back box using screws provided.
6. After the annunciator wiring to the panel has been completed (described in Section Figure 4.5), replace the electronic
assembly in the back box. Place the bezel over the back box and tighten the set screws on the bezel.
Key Shaped
Mounting Hole
Back Box
Mounting Holes
