INVERTER PARAMETERS > Frequency Control: P(f) (Only visible and editable with Admin
Plus privileges)
In the Frequency Control: P(f) sub-menu you can config settings related to the active power derating
as function of grid frequency.
NOTE – D Do not change these parameters if not requested by the grid operator.
INVERTER PARAMETERS > Ramp Control (Only visible and editable with Admin Plus
privileges)
In the Ramp Control sub-menu you can config the parameter related to the active power ramp up at
the start-up and after a grid fault event.
NOTE – D Do not change these parameters if not requested by the grid operator.
INVERTER PARAMETERS > Reactive Power Control (Only visible and editable with Admin
Plus privileges)
In the Reactive Power Control sub-menu you can configure settings related the reactive power
parameters using the following parameters groups:
• Cosphi Set
• Q Set
• Volt/VAr Settings: Q(V)
• Watt/Cosphi Settings: Cosphi(P)
NOTE – D Do not change these parameters if not requested by the grid operator.

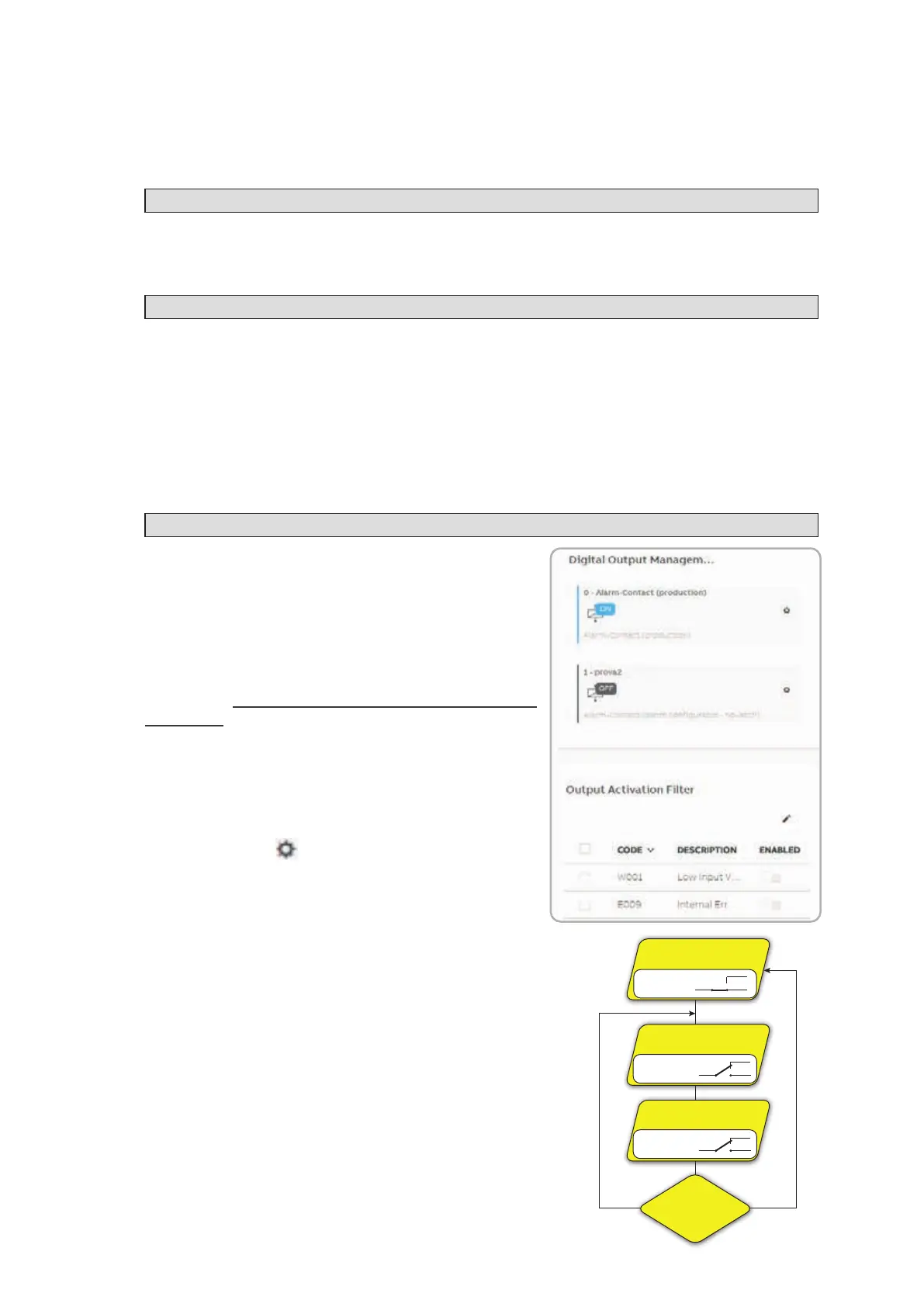

DIGITAL OUTPUTS
In the Digital Outputs menu it’s possible to set the activation
status and to configure customized alarm conditions of the
two configurable relays related to “ALARM” terminal block
(41) (refer to “Multifunction Relay connection (ALARM
and AUX)” paragraph to know how to connect to these
terminal block).
This contact can be used, for example, to activate a siren
or a visual alarm, control the disconnect device of an
external transformer, or control an external device.
Relay switching can be set in different modes by clicking
on the setting icon
: With “Output active filter” you can
select the list of events for which the relays switch.
The available operating mode are:
• Production
The relay is activated (status: switched) whenever the inverter
connects to the grid; as soon as the inverter is disconnected
from the grid (for whatever reason that caused disconnection),
the relay is in its resting position.
INVERTER RUN
- PRODUCTION -
GRID DISCONNECTION
- NO PRODUCTION -
GRID RECONNECTION
t=based on Country Standard
DISCONNECTION
CAUSE IS STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Idle
Relay State: Switched
