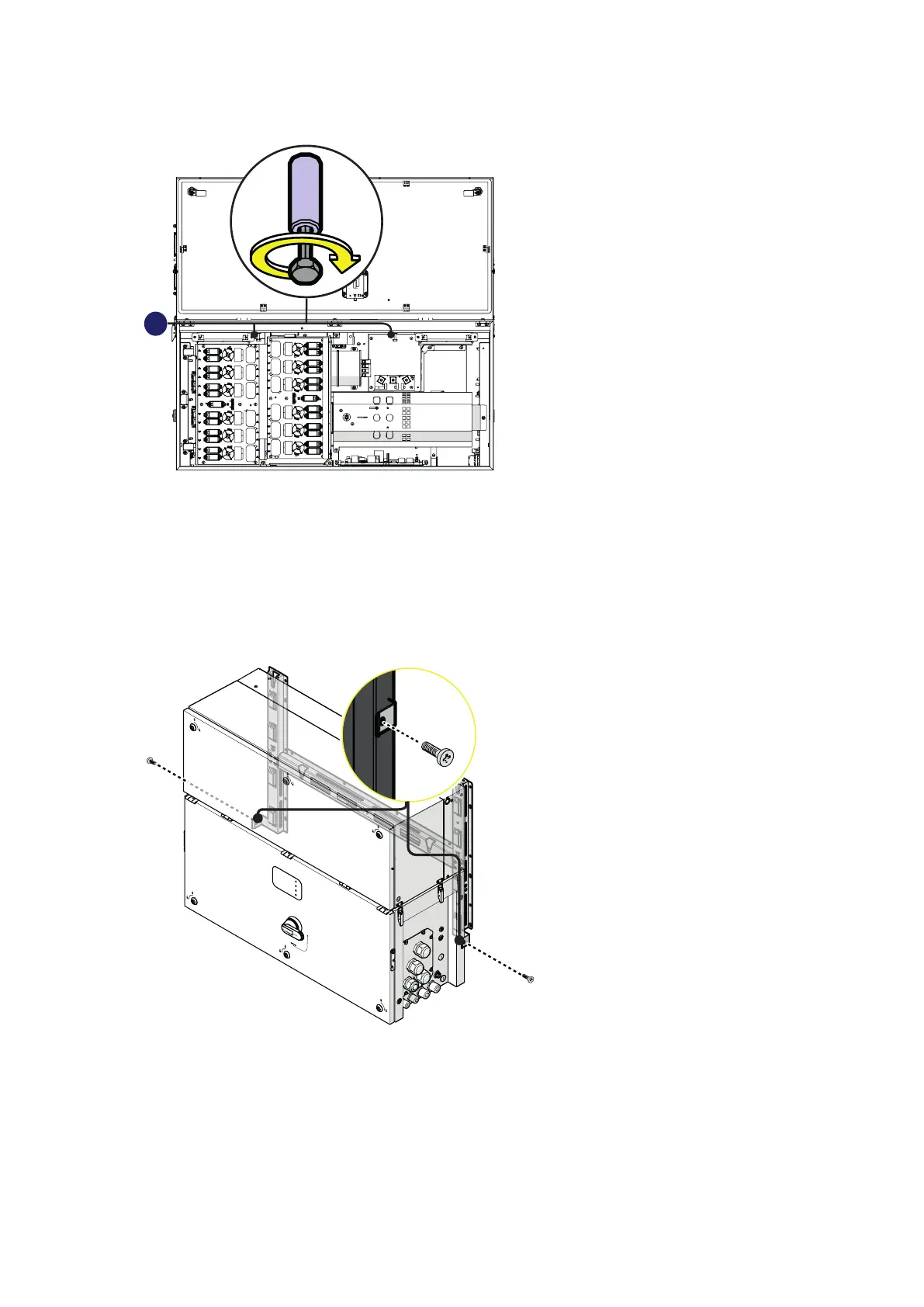

• Tighten the two hexagonal junction screws (20) with a torque of 12Nm.
20
20
20
• Close the DC surge arrester plate (21) using the three M5 screws previously removed with a
tightening torque of 3 Nm.
• Install the cable duct (22) previously removed to the DC surge arrester plate (21).
• Tighten the two side screws (supplied) to torque of 5Nm, to avoid the tilting of the bottom part of the
inverter.
PVS
• Close the Wiring box cover (07).
