Installation Instructions
Seite/Page 100 - Kaptitel/Chapter 6: Installation Instructions 18.12.15

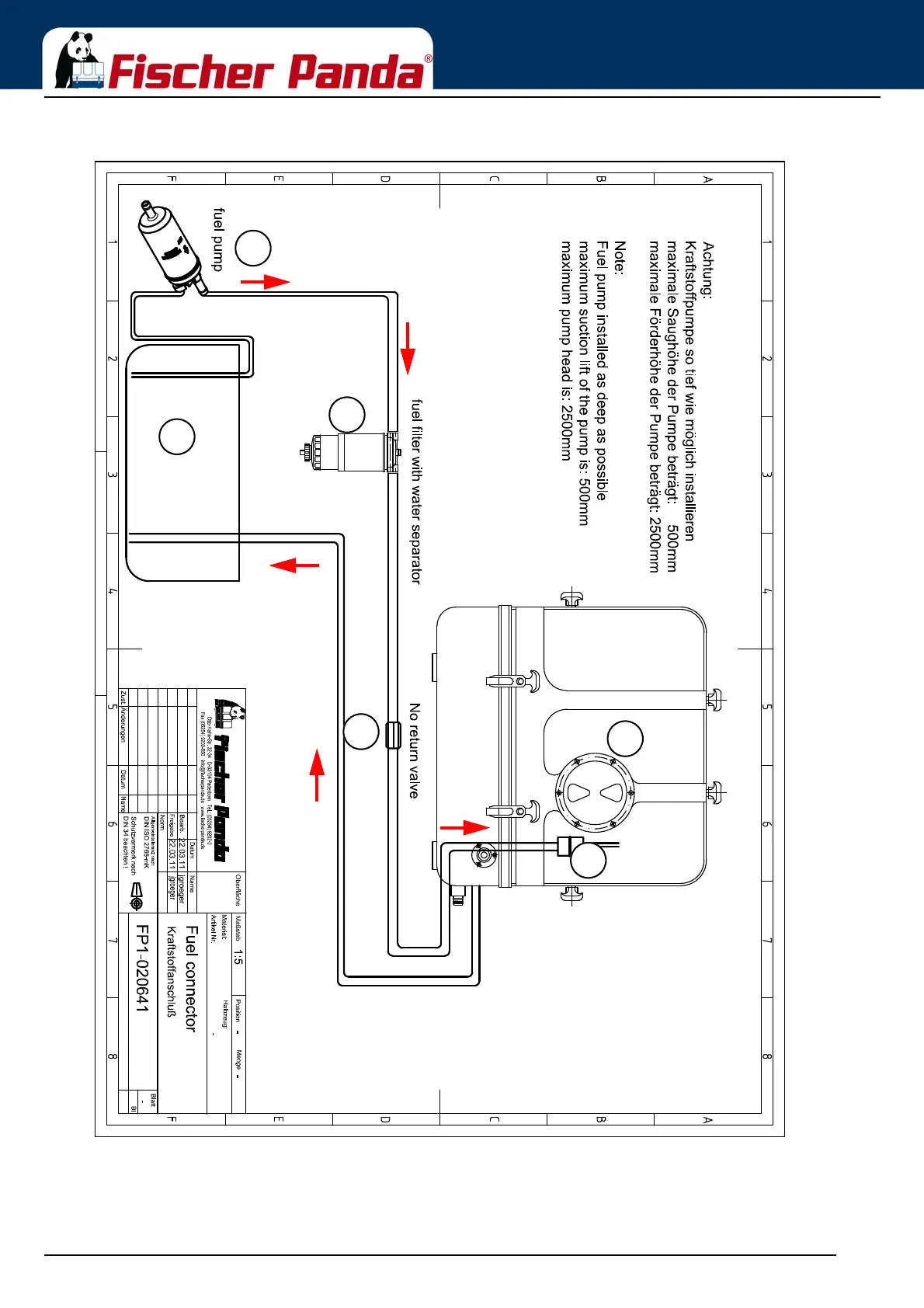

Fig. 6.13.1-2: Fuel system - schema
5
2
3
4
1
6
1. Fuel tank
2. external fuel pump
3. external fuel prefilter with water separator
4. Non return valve
5. Fuel fine filter
6. Generator
