Fig. 11.3.4-4: Overview screen 4 english textThe fourth screen is the „Enter the menu“ screen.
Press the Start/Stop - Enter button to enter the menu
11.3.5 Overview Screens German Text

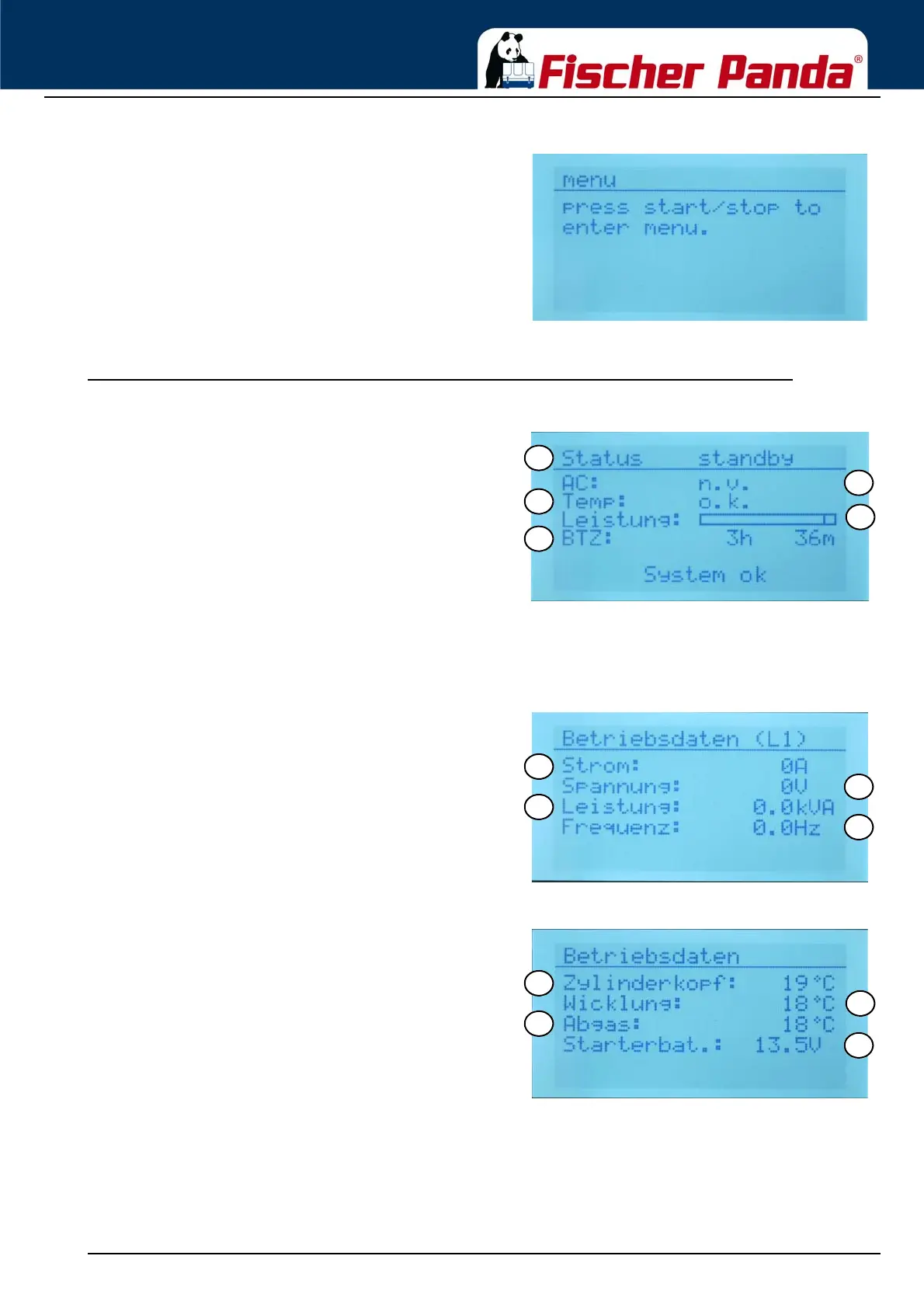

Fig. 11.3.5-1: Overview screen 1 german textWhich screen the display shows (symbolic or english text or
german text) can be set up in the menu.
The first screen shows:
01. Generator status
02. AC present
03. Temperature of the generator ok
04. Percentage of power
05. Operating hours of the generator
Fig. 11.3.5-2: Overview screen 2 german textThe second screen shows
06. Voltage of the generator
07. Current of the generator
08. Power (kVA) of the generator
09. Frequency of the generator
Fig. 11.3.5-3: Overview screen 3 german textThe third screen shows
10. Temperature of the cylinder head
11. Temperature of the generator coil
12. Temperature of the exhaust
13. Voltage of the starter battery
01
02
04
03
05
08
06
07
09
10
12
13
11
