Fischer Panda 18 - Technical Data of the CP-G

Panda xControl
18.12.15 Kapitel/Chapter 11: Panda xControl - Seite/Page 245
11.7.2 Technical Data of the CP-G
Supply unit:
Bus communication:
Miscellaneous:
Accessories:

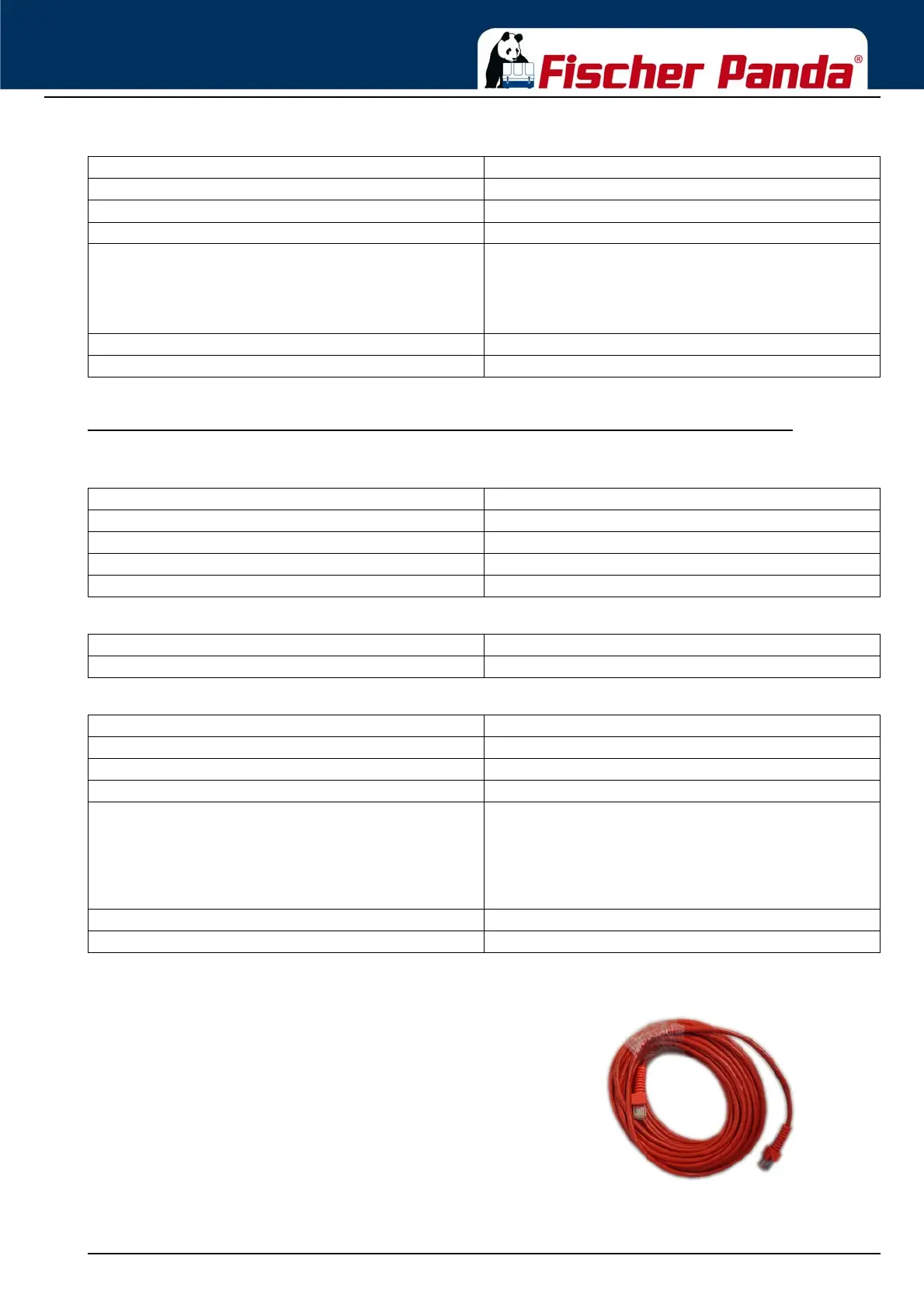

Fig. 11.7-1: FP-Bus connector (15 m): 34.02.02.131HFP-Bus connector (15 m): 34.02.02.131H
Operation mode continuous operation
Mounting position any
Protection class IP12
Weight 0,13 kg
EMV EN 55011:2009 + A1:2010, Group 1, Class B
EN 60945:2002
EN 61000-6-1:2007
EN 61000-6-2:2005/AC 2005
EN 60945:2002
Operating temperature -20 °C – +100 °C
Storage temperature -40 °C – +125 °C
BUS-supply voltage 12 V or 24 V Automotive (12-13,5 V//24-28 V)
BUS-supply voltage-Max 36 V
BUS -current consumption-Max 120 mA (incl. display heater)
Current consumption-Standby/Off 0 A
Current consumption-Nominal < 21 mA @12 V; < 18 mA @24 V (without display heater)
Bus technology CAN
Bus protocol FP-BUS based on SAEJ1939
Operation mode continuous operation
Mounting position any
Protection class IP30 (inserted RJ45 connectors)
Weight 0,11 kg
EMV EN 61000-6-3:2007 + A1:2011
EN 55011:2009 + A1:2010, Group 1, Class B
EN 60945:2002
EN 61000-6-1:2007
EN 61000-6-2:2005/AC 2005
EN 60945:2002
Operating temperature -20 °C – +50 °C
Storage temperature -10 °C – +60 °C
