4.3.4 The operation surveillance system

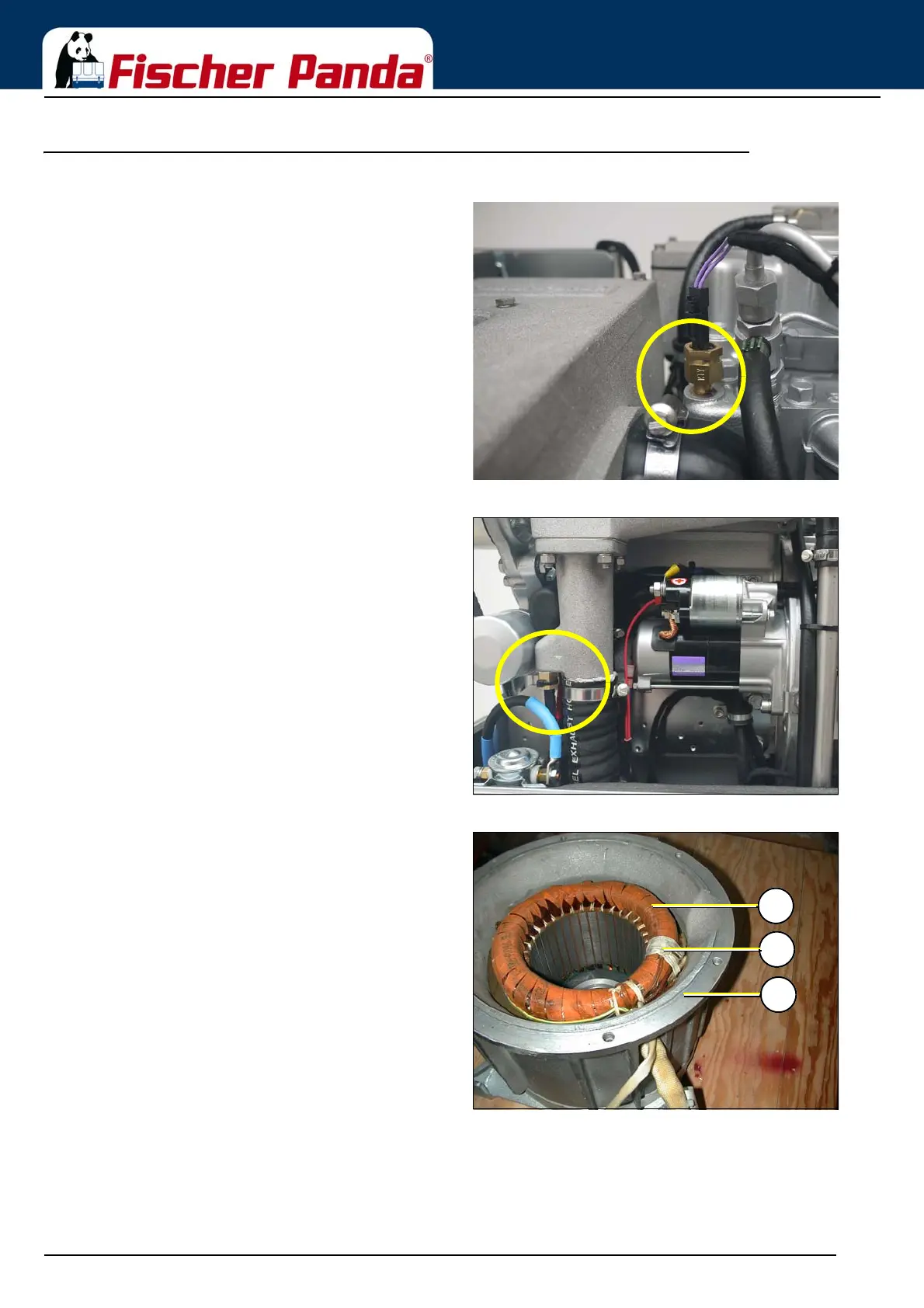

Fig. 4.3.4-1: Thermo-seneor at cylinder headThermo-sensor at cylinder head
The thermo-sensor at the cylinder head serves to monitor the
generator temperature.
Fig. 4.3.4-2: Thermo-sensor at exhaust connectionThermo-sensor at exhaust connection
If the impeller pump stops and delivers no more raw water,
the exhaust connection becomes extremely hot.
Fig. 4.3.4-3: Thermo-sensor in the generator windingThermo-sensor in the generator winding
1. Generator winding
2. Thermo-sensor
3. Housing
A thermo-sensor inside the windings to protect the generator
winding, is installed.
