Maintenance Instructions
18.12.15 Kapitel/Chapter 7: Maintenance Instructions - Seite/Page 167
7.19.1 Replacing the oil pressure sensor (optional component)

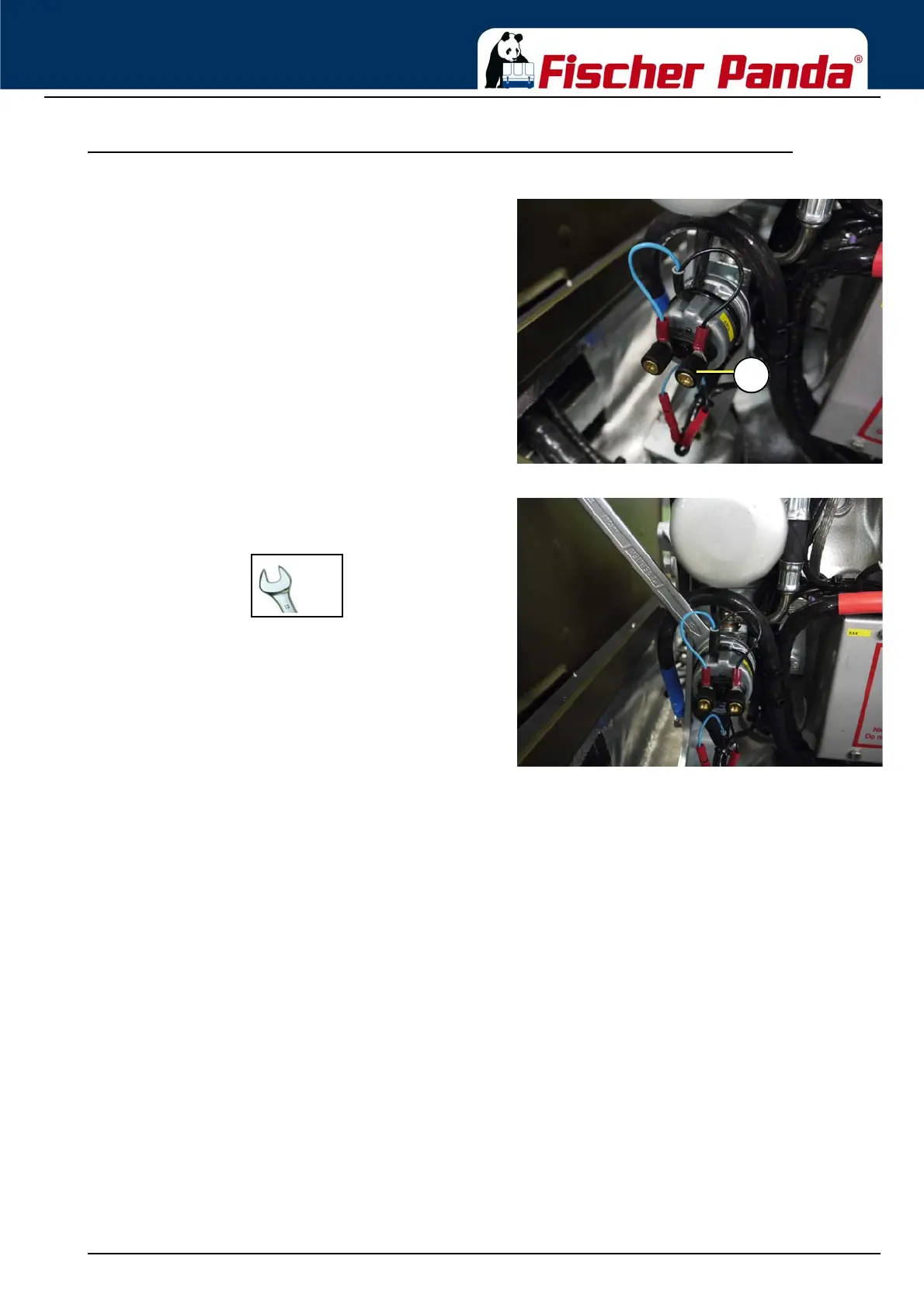

Fig. 7.19.1-1: Oil pressure sensor1. Unscrew both connectors (01) on the oil pressure sensor.
Fig. 7.19-2: Oil pressure sensor2. Loosen and remove oil pressure sensor 6R3 using a
wrench with W.A.F. of 17 mm. A large piece of cloth or
absorbent tissue must be placed under the connection to
prevent escaping oil from running into the capsule.
To reinstall, reverse the order of steps. The sensor is fit-
ted with a tapered thread and requires no special seal.
