Installation Instructions
Seite/Page 102 - Kaptitel/Chapter 6: Installation Instructions 18.12.15
6.13.3 Position of the pre-filter with water separator
Inside the generator capsule itself, there is the fuel filter installed (exception: Panda 4500). Additional fuel filters (with
water separator) must be mounted outside the capsule in easily accessible places in the fuel lines between the tank
intake fuel pump and the diesel motor's fuel pump.

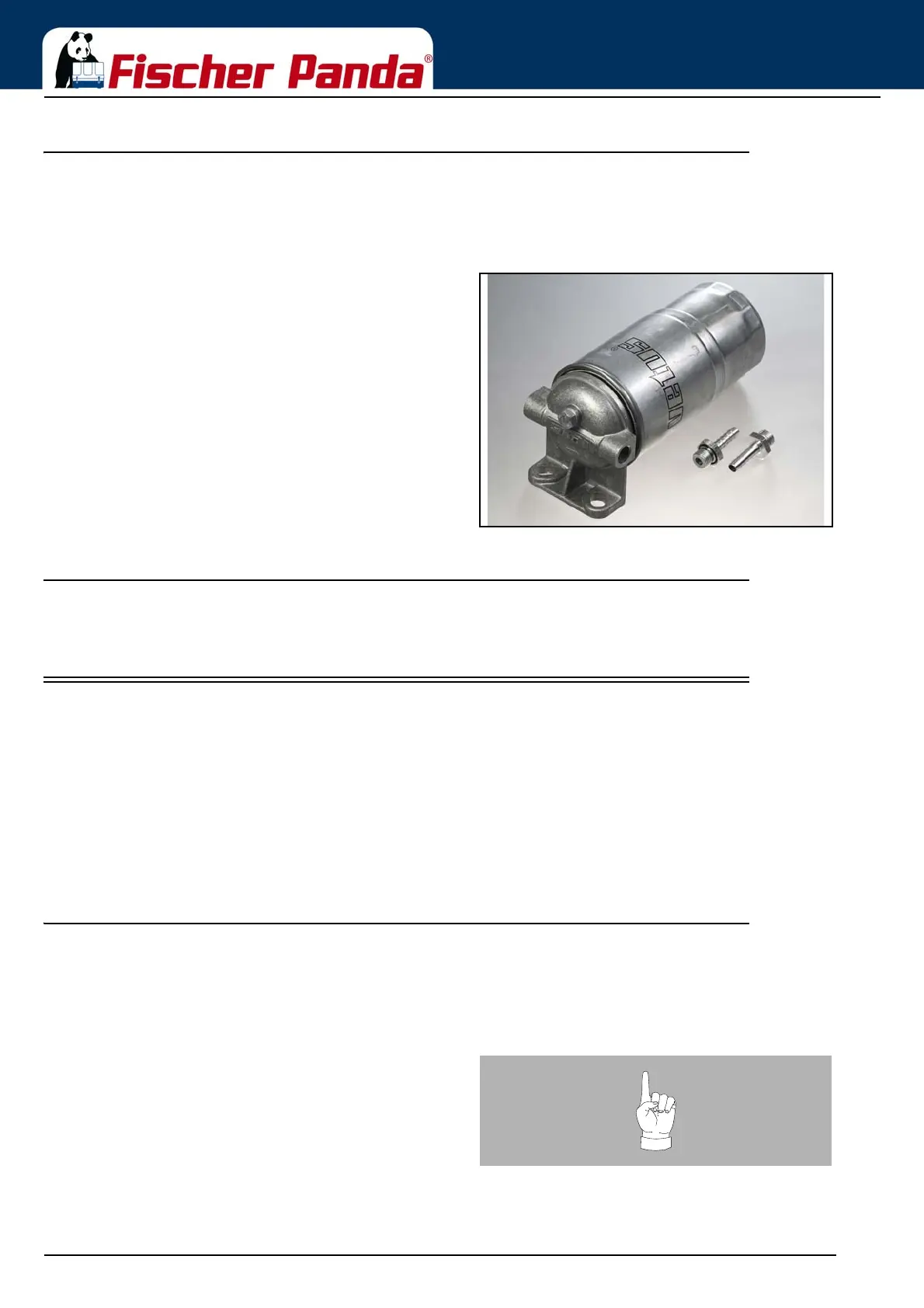

Fig. 6.13.3-1: Pre-filter with water separatorAdditionally to the standard fine filter a pre-filter with
water separator must be installed outside of the sound
insulation capsule in the fuel system line (not included in
the delivery).
representative picture
6.13.4 Ventilating air from the fuel system
See chapter maintenance
6.14 Generator DC system installation
The Panda generators from 6000 upwards have their own dynamo/DC alternator to charge a DC starter battery.
It is recommended to install an additional starter battery for the generator.
The generator is then independent from the remaining battery set. This enables you to start the genset at any time
with its own starter battery even if the other batteries are discharged. A further advantage of a separate starter
battery is that it isolates the generator's electric system from the rest of the boat's DC system, i.e. minus pole (-) is
not connected electrically to Earth/Ground.
The generator is then Earth/Ground free.
6.14.1 Connection of the starter battery block
IAn own separate starter battery must be installed for the generator.
The positive cable (+) of the battery is attached directly at the solenoid switch of the starter motor (position 1). The
negative cable (-) of the battery is attached underneath the starter motor at the engine mount (position 2).
NOTE:Panda Generators Panda 6000 and higher normally
provided with an alternator/dynamo to charge the starter
battery. At generators without alternator/dynamo it is
needed to charge the starter battery with an external
battery charger.
