Installation Instructions
18.12.15 Kapitel/Chapter 6: Installation Instructions - Seite/Page 107

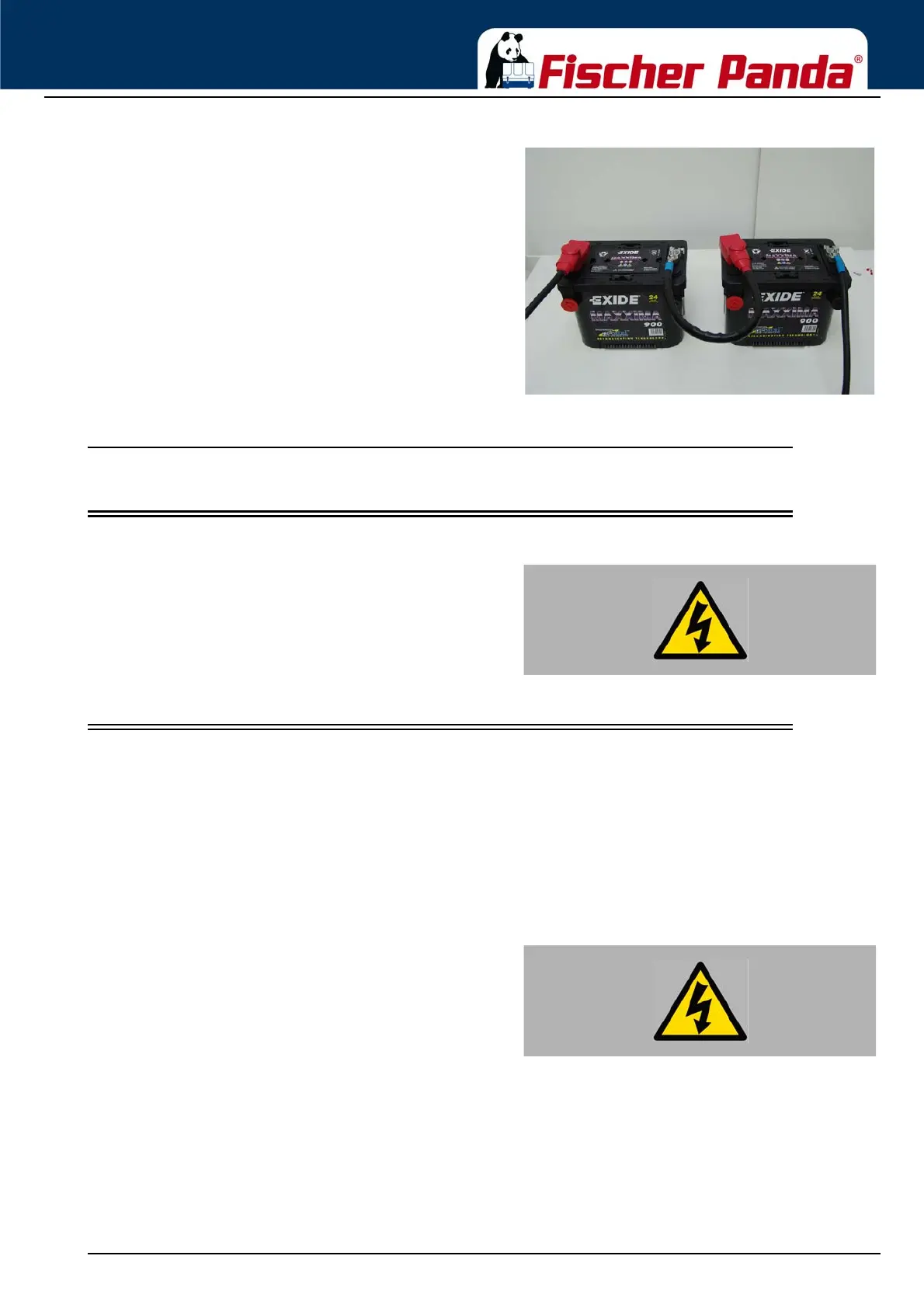

Fig. 6.14.2-4: Installation starter battery4. (-) cable of first battery
5. Disconnect the batteries in reverse procedure.
6.14.3 Connection of the xControl panel - see separate xControl manual
6.15 Generator AC System Installation
Warning!: Electrical Voltage Before the electrical system is installed, READ the
SAFETY INSTRUCTIONS of this manual FIRST!
Be sure that all electrical installations (including all safety
systems) comply with all required regulations of the regional
authorities. This includes lightening conductor, personal
protection switch etc.
6.16 AC-Control box with VCS and starting current limitation
An AC-Control box is necessary for the operation of Panda generators. According to the generator capacity the AC
Control box is variable dimensioned and equipped. It is supplied with a lockable cap.
This cap must necessarily be locked when the generator is running, as at all models during operation, 400 V is
present in the AC control box.
For the excitation of the generator all necessary capacitorsand the starting current limitation (not available at all
models) are stored in the AC Control box. The AC Control box must be connected to the generator with the electrical
lines (230V and 400V).
Danger to life - 400V ACOnly qualified personnel may carry out working at the
AC Control box.
