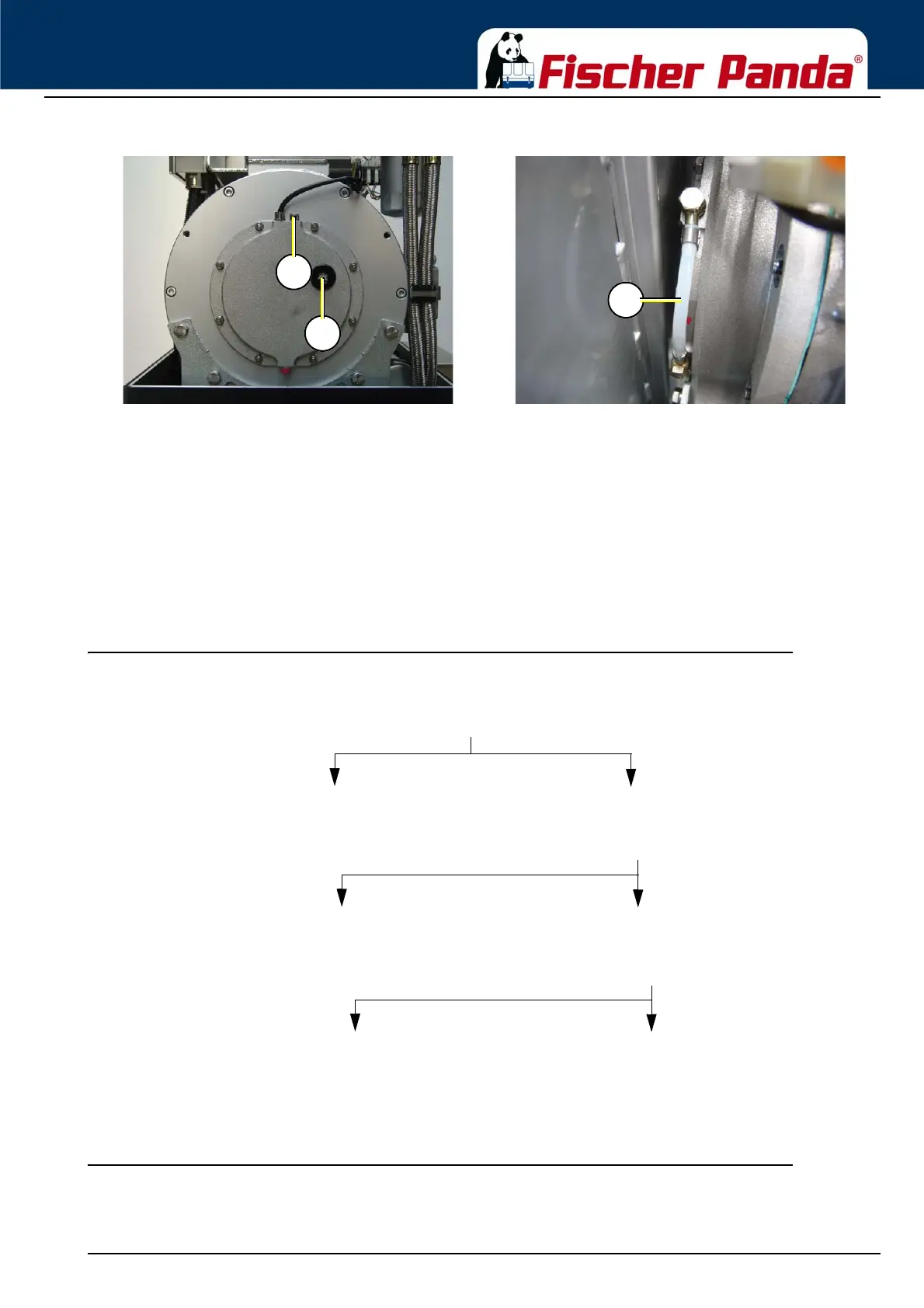

Fig. 7.11-1: Oil check
If your generator does not feature these control modules or if these are not accessable, please refer to your Fischer
Panda distribution partner or to Fischer Panda directly. The correct oil level is at the middle of the sight glass/ sight
hose.
Oil level check is only to be executed when the generator is switched off!
7.11.1 Oil level check
Fig. 7.11-1: Oil level check
7.11.2 Refilling oil
1. Remove the Allen screw M8 at the right side of the sensor cable.
2. Refill some oil by means of a small hopper or a syringe.
01
02
03
Older version Newer version
01. Screw plug
02. Sight glass
03. Sight hose
Oil level check
Oil level is fine:
Generator can be started.
Next check: after 25 hours
Oil level is NOT correct:
Correct the oil level. Let generator
run for 3 minutes
Oil level is fine:
Generator can be started.
Next check: after 5 hours
Oil level still NOT correct:
Do NOT restart generator!
Oil level is fine:
Generator can be started
Oil level still NOT correct:
Refill oil
Let generator run for 3 minutes
