18.12.15 Kapitel/Chapter 11: Panda xControl - Seite/Page 219
11.3.2 The Overview Screens
Which overview screen the display shows (symbolic-english text-german text) can be set up in the menu.
11.3.3 Overview Screens Symbolic

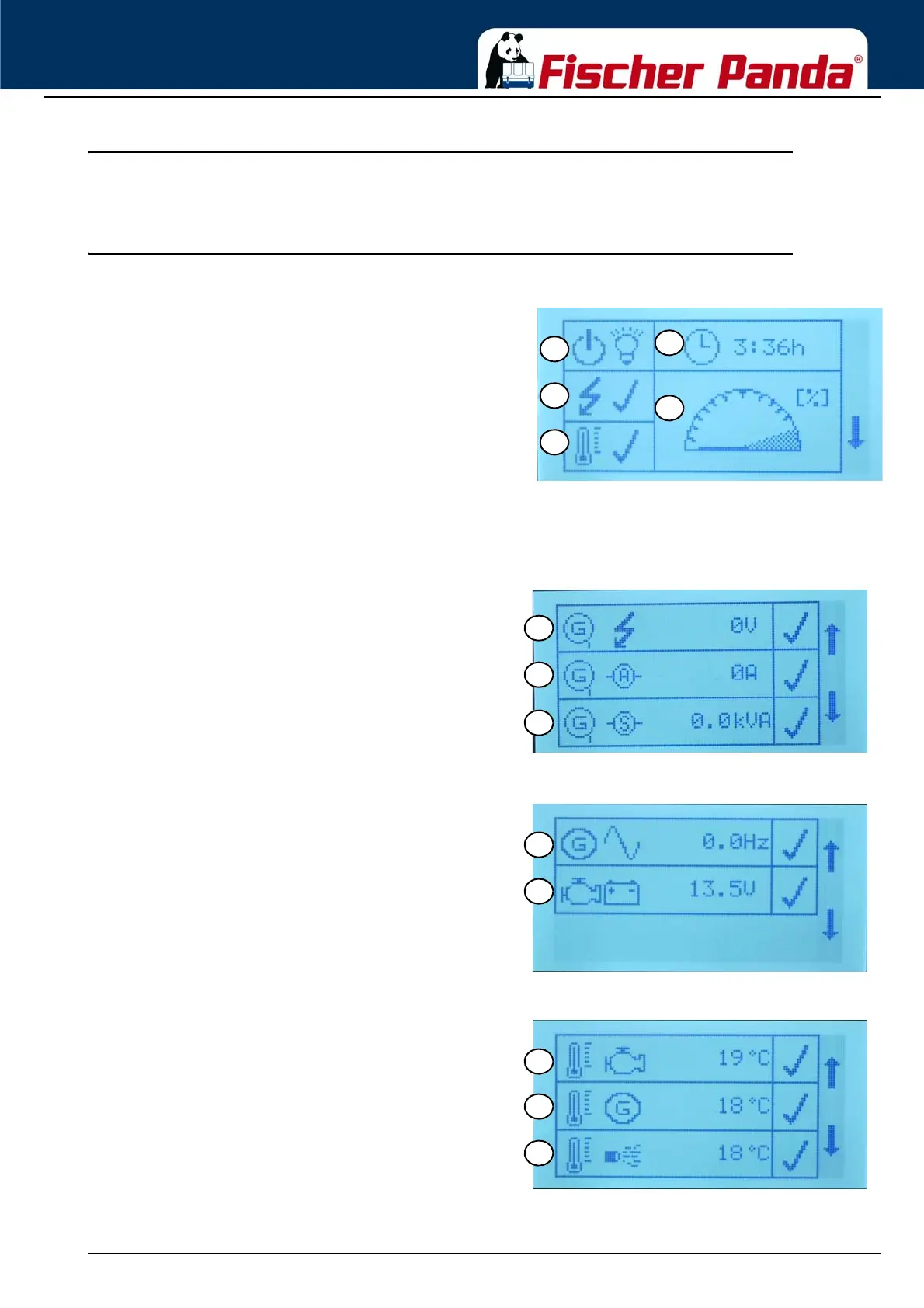

Fig. 11.3.3-1: Overview screen 1 symbolicWhich screen the display shows (symbolic or english text or
german text) can be set up in the menu.
The first screen shows:
01. Generator status
02. AC present
03. Temperature of the generator ok
04. Operating hours of the generator
05. Percentage of power
Fig. 11.3.3-2: Overview screen 2 symbolicThe second screen shows
06. Voltage of the generator
07. Current of the generator
08. Power (kVA) of the generator
Fig. 11.3.3-3: Overview screen 3 symbolicThe third screen shows
09. Frequency of the generator
10. Voltage of the starter battery
Fig. 11.3.3-4: Overview screen 4 symbolicThe fourth screen shows
11. Temperature of the cylinder head
12. Temperature of the generator coil
13. Temperature of the exhaust
01
02
03
05
04
06
07
08
09
10
11
12
13
