Maintenance Instructions
Seite/Page 150 - Kaptitel/Chapter 7: Maintenance Instructions 18.12.15

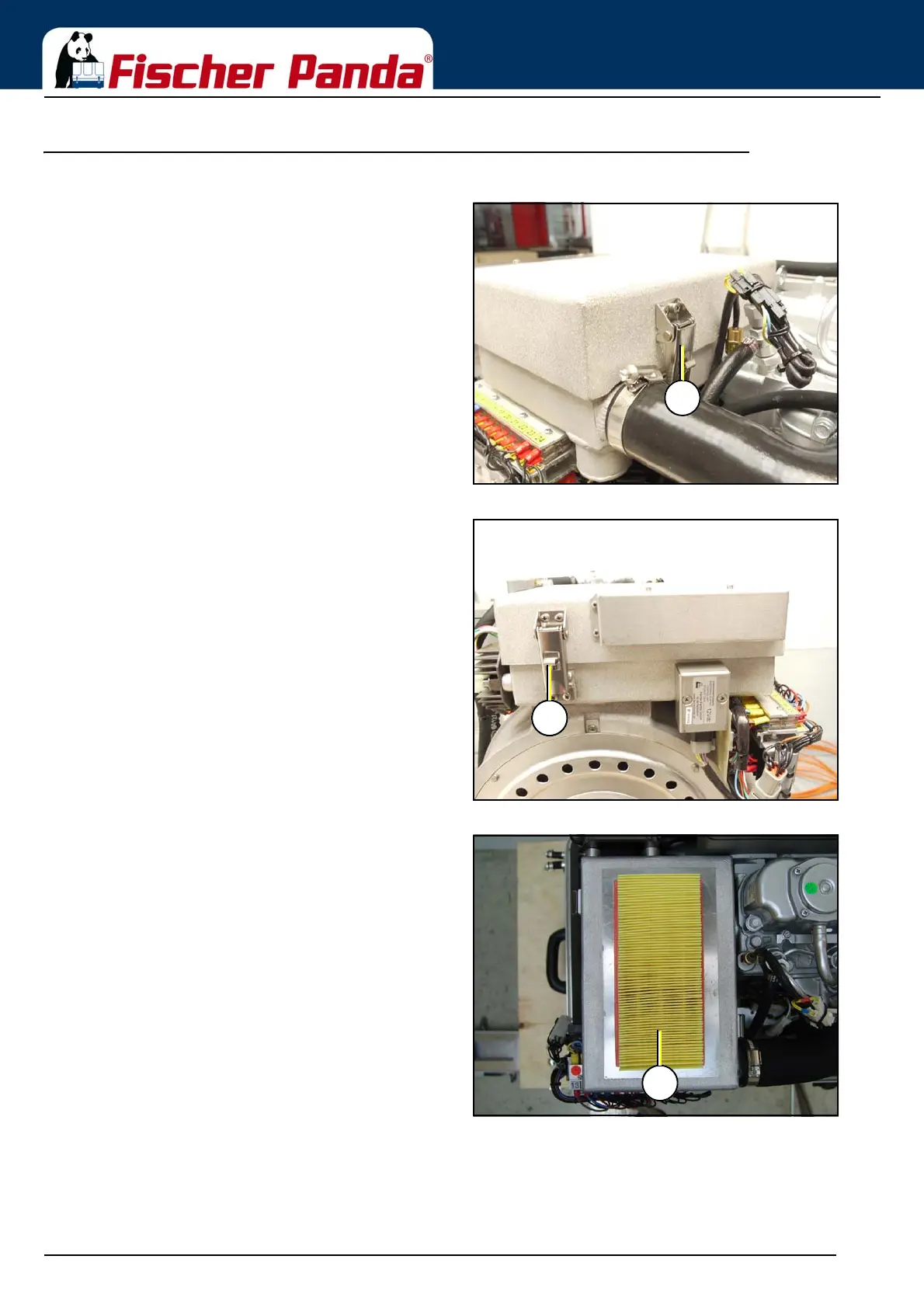

7.14.3 Alternative replacement of the air filter at housing with snap fasteners
Fig. 7.14.3-1: Air suction housing1. Open the combustion air housing by loosening the closure
on the right side of the housing.
01. Closure
Fig. 7.14.3-2: Air suction housing2. Open the combustion air housing by loosening the closure
on the left side of the housing.
01. Closure
Fig. 7.14.3-3: Air suction housing3. Open the air housing by pulling the cover.
4. Lift out the air filter element of the cover of the air filter
housing.
01. Air filter
5. Replace cover in reverse procedure.
