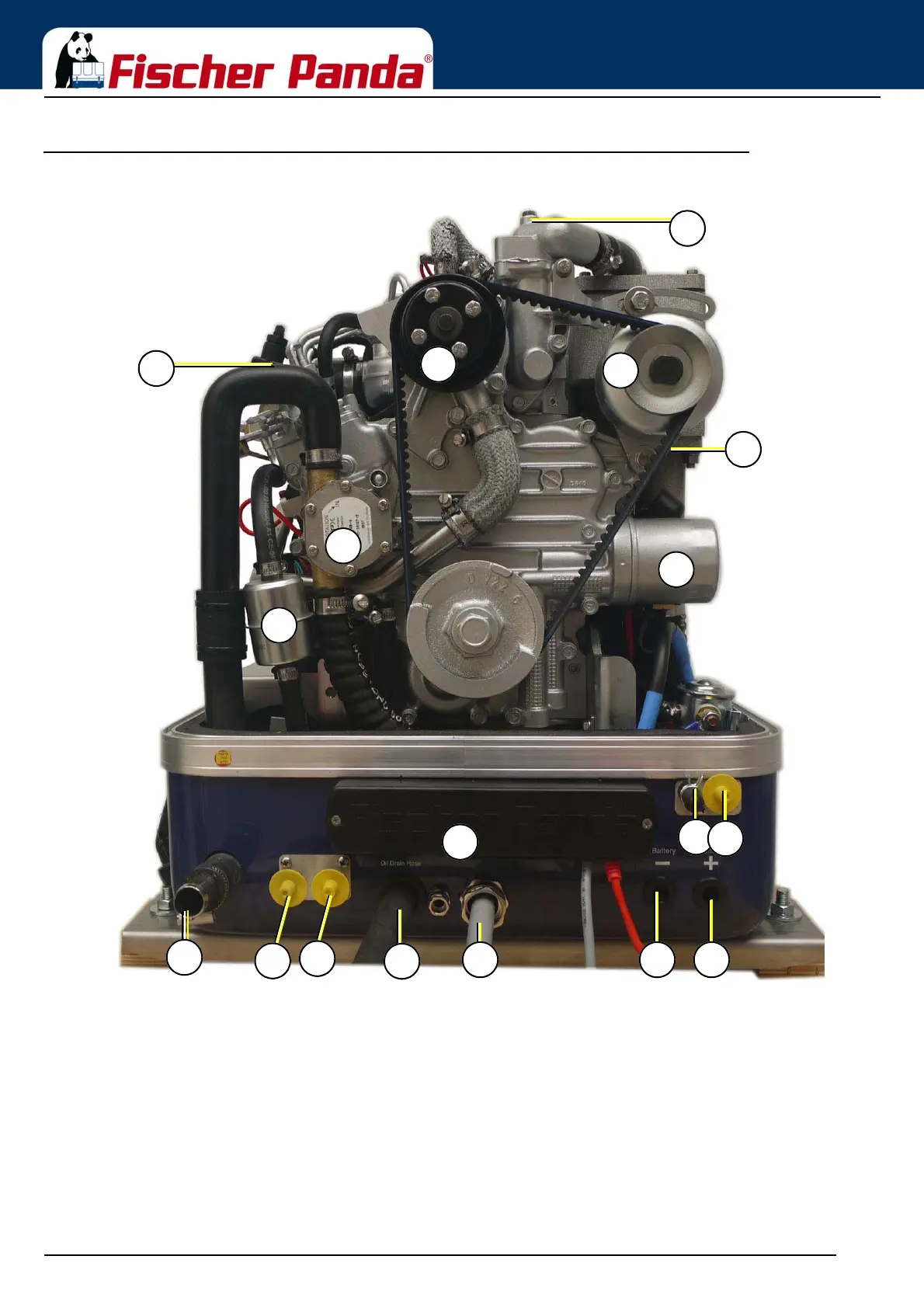

Fig. 4.2.3-1: Front View
01) Ventilation screw thermostat housing
02) Fuel solenoid valve
03) Internal cooling water pump
04) Alternator DC
05) V-belt for DC-alternator and internal cooling water pump
06) Engine oil filter
07) Seawater pump
08) Fuel fine filter
09) Seawater inlet
10) Fuel intake connection (feed line)
11) Fuel backflow connection (return line)
12) xControl connection panel
13) Oil drain hose
14) Power out
15) Passage for battery cable - (negative pole)
16) Intake external cooling water expansion tank
17) Back flow external cooling water expansion tank
18) Passage for battery cable + (positive pole)
