Installation Instructions
Seite/Page 58 - Kaptitel/Chapter 6: Installation Instructions 18.12.15
The electrical connections MUST be carried out according to the respective valid regulations. This also concerns
used cable materials. The cable supplied is meant for laying „protected“ (i.e. in pipe) at a temperature up to a max of.
70 ° C (160 ° F). The on-board circuit must also be fitted with all essential fuses.
ATTENTION! Before working (installation) on the System read the
section „Safety Instructions“ in this Manual.
6.4 Installation of the cooling system - raw water
6.4.1 General information
The genset should have its own raw water (coolant water) inlet and should not be connected to any other engine
systems. Ensure that the following installation instructions are complied with:
6.4.2 Fischer Panda installation kit - raw water
Note:The following additional components will be required for
the specified installation. You can purchase them as an
installation kit or separately at Fischer Panda.

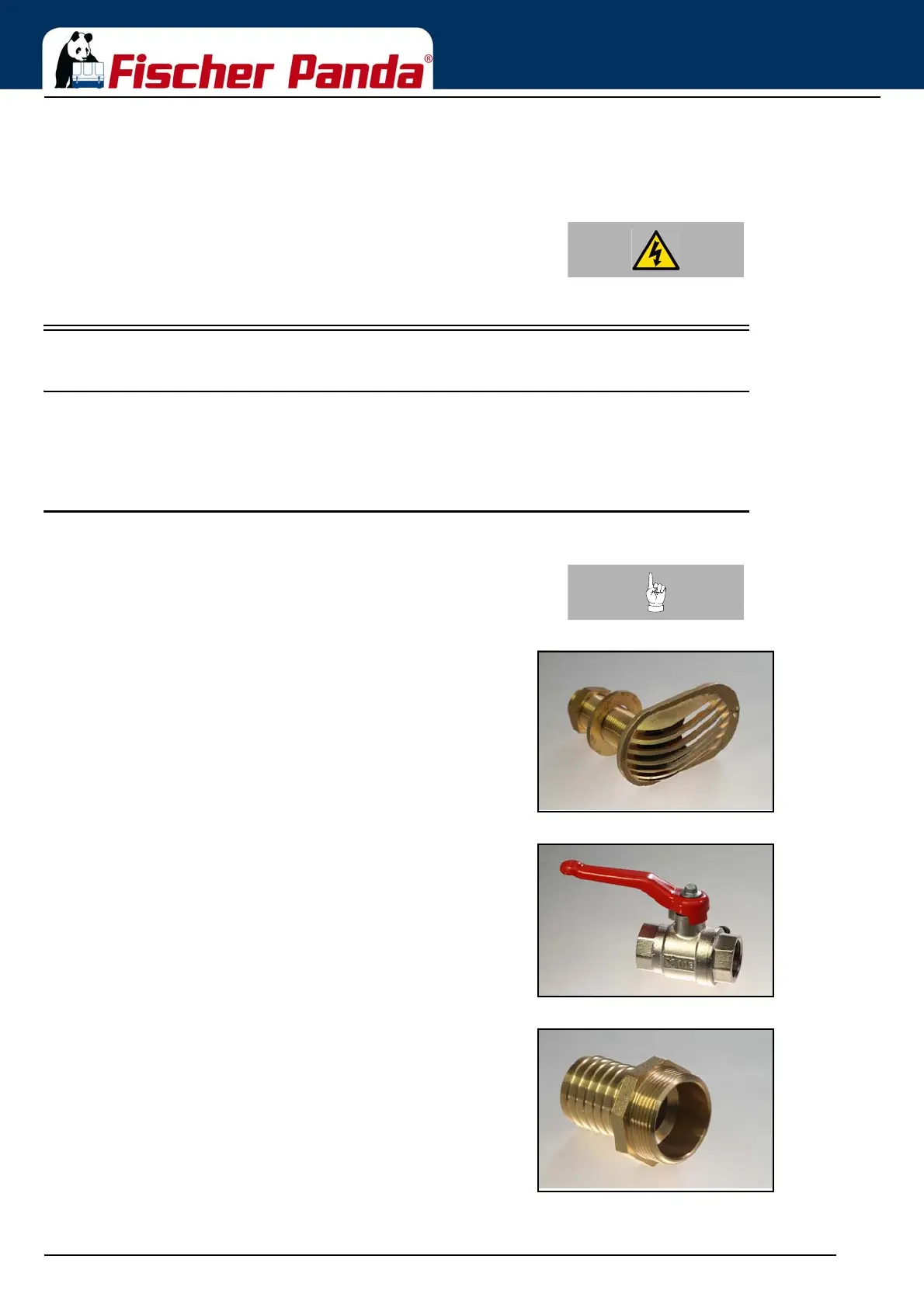

Fig. 6.4.2-1: Thru hull fitting with strainerThrough hull fitting with strainer
Fig. 6.4.2-2: Sea cockSea cock
Fig. 6.4.2-3: AdapterAdapter
