Installation Instructions
Seite/Page 104 - Kaptitel/Chapter 6: Installation Instructions 18.12.15

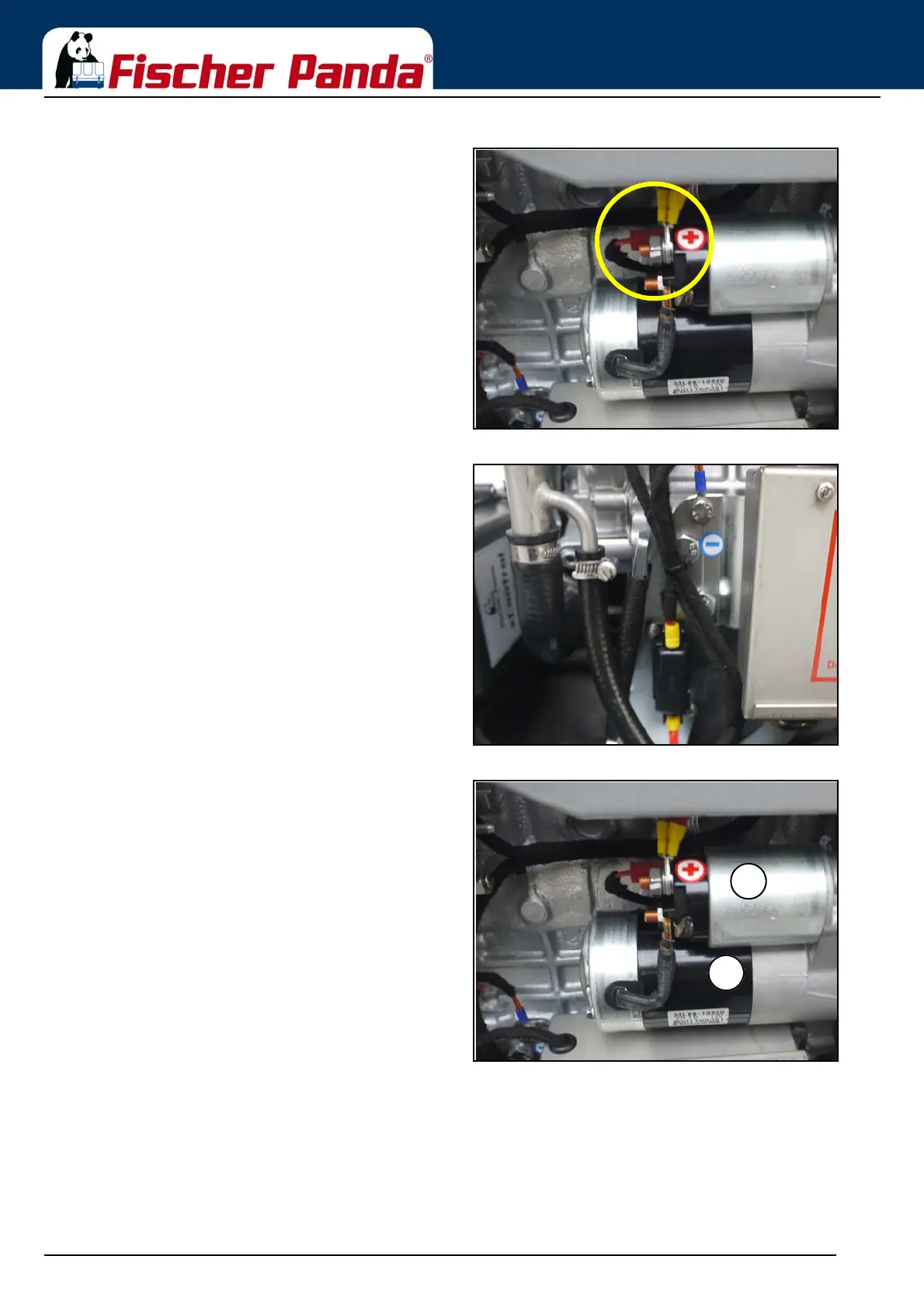

Fig. 6.14.1-1: Positive battery cablePositive battery cable
The positive (+) battery cable is connected directly to the
solenoid switch of the starter.
Fig. 6.14.1-2: Negative battery cableNegative battery cable
The negative (-) battery cable is connected to the engine
foot.
Note! The battery negative pole may not be connected
with the boat ground or with the protective grounding of
the DC installation!
Fig. 6.14.1-3: DC starter motorDC starter motor
All Panda generators are equipped with an independent DC
starter motor.
1. Solenoid switch for starter motor
2. Starter motor
To Next Page
