Maintenance Instructions
Seite/Page 140 - Kaptitel/Chapter 7: Maintenance Instructions 18.12.15

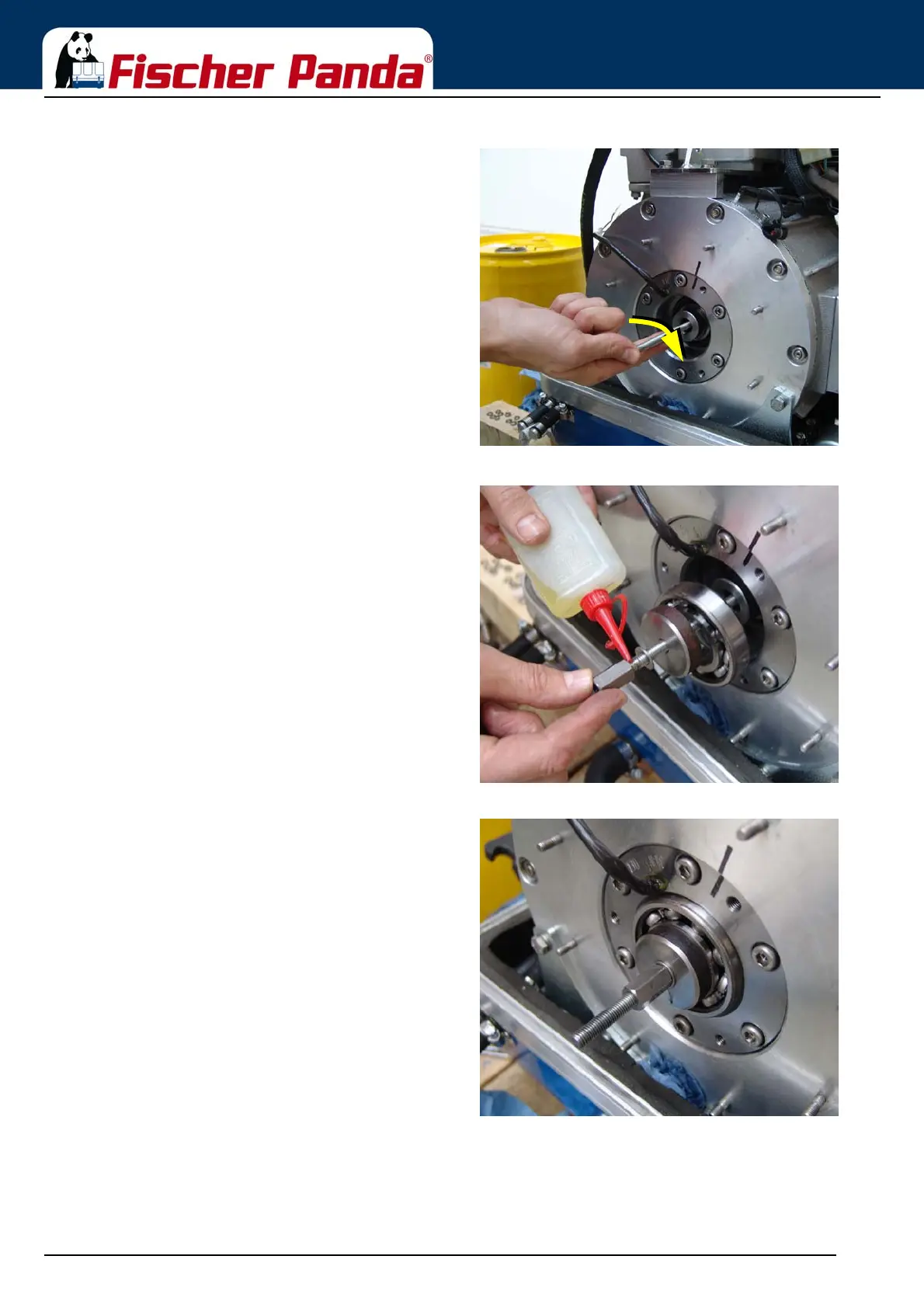

Fig. 7.12.2-25: Mount the thread rodMounting the ball bearing:
Screw the thread rod into the generator shafts’ tap hole as far
as possible.
Fig. 7.12.2-26: Mount the ball bearingPush the ball bearing, the pressure ladle and the washer
up against the shaft, then screw on the hex nuts. Grease/
lubricate the thread rod.
Fig. 7.12.2-27: Mounting the ball bearingGuide the ball bearing with one hand to avoid canting on
the shaft.
Put the screw wrench on the long nut with the other
hand and tighten it slowly.
