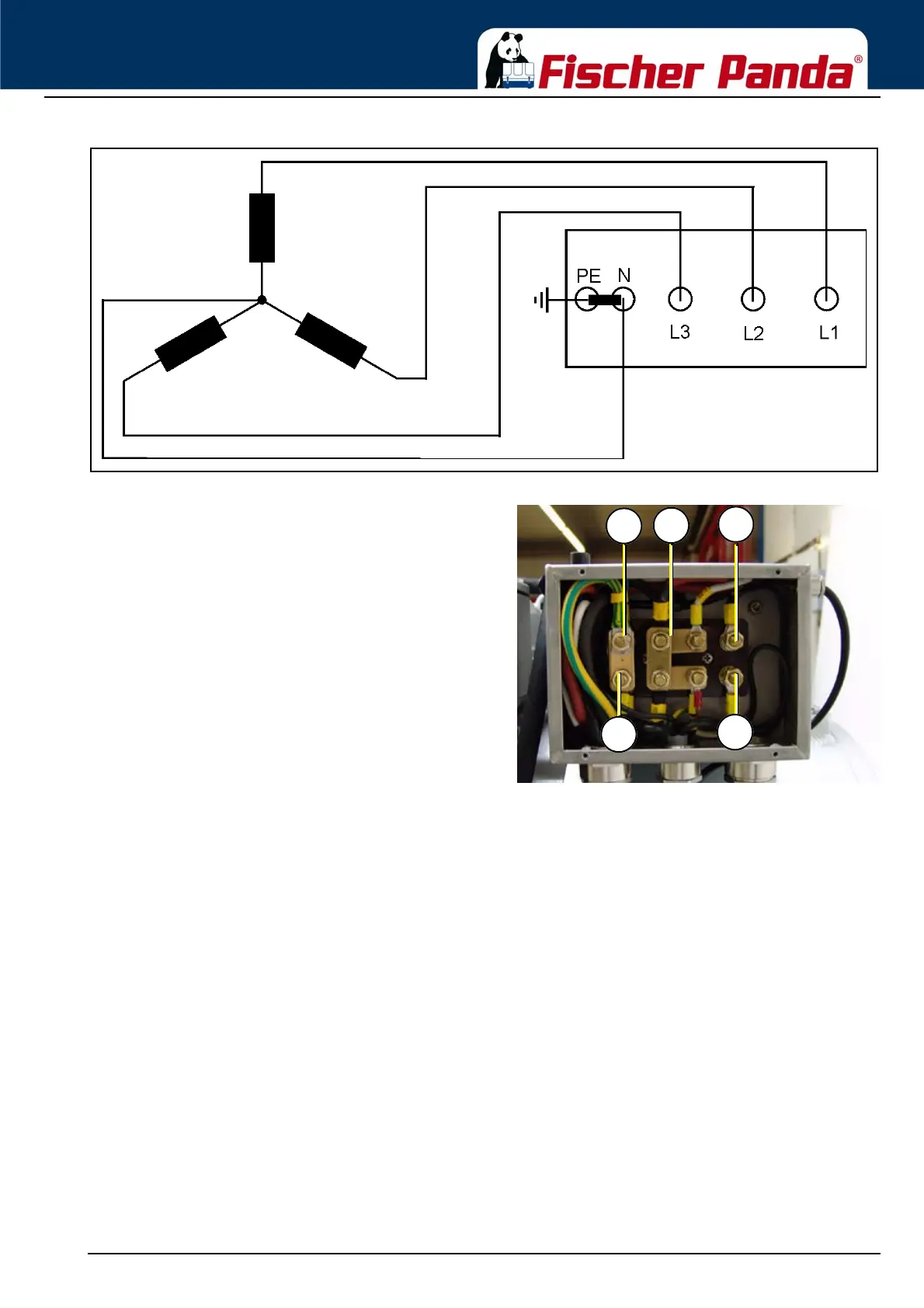

Fig. 8.5.0-4: Wiring diagram HP3 - 400 V / 50 Hz
Fig. 8.5.0-5: Generator power terminal box 120 / 60 Hz
Generator Power Terminal Box 120 V / 60 Hz
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
