Generator Faults
18.12.15 Kapitel/Chapter 8: Generator Faults - Seite/Page 185

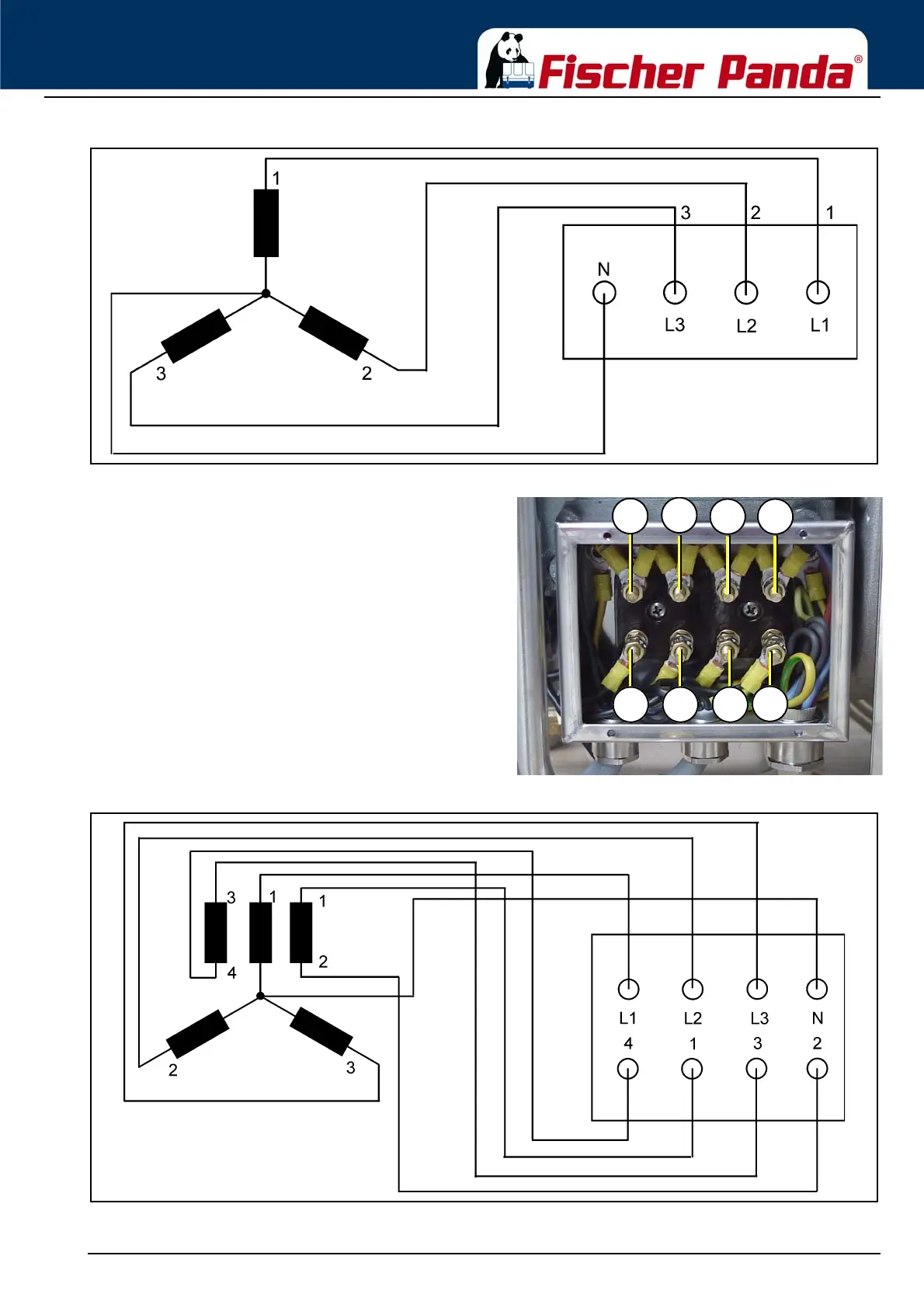

Fig. 8.5.0-8: Wiring diagram HP3 - 240 V / 60 Hz
Fig. 8.5.0-9: Generator power terminal box DVS
Generator Power Terminal Box DVS - 120 V + 240 V /
60 Hz
In these terminal box there are the electrical connection
points for the AC generator. Here is also the bridge for the
protective grounding of the generator. The cover may only be
removed, if it is guaranteed that the generator cannot be
inadvertently started.
Sample Picture
Fig. 8.5.0-10: Wiring diagram DVS - 120 V + 240 V / 60 Hz
4
3
N
1
2
L1 L1 L1
