Installation Instructions
Seite/Page 80 - Kaptitel/Chapter 6: Installation Instructions 18.12.15

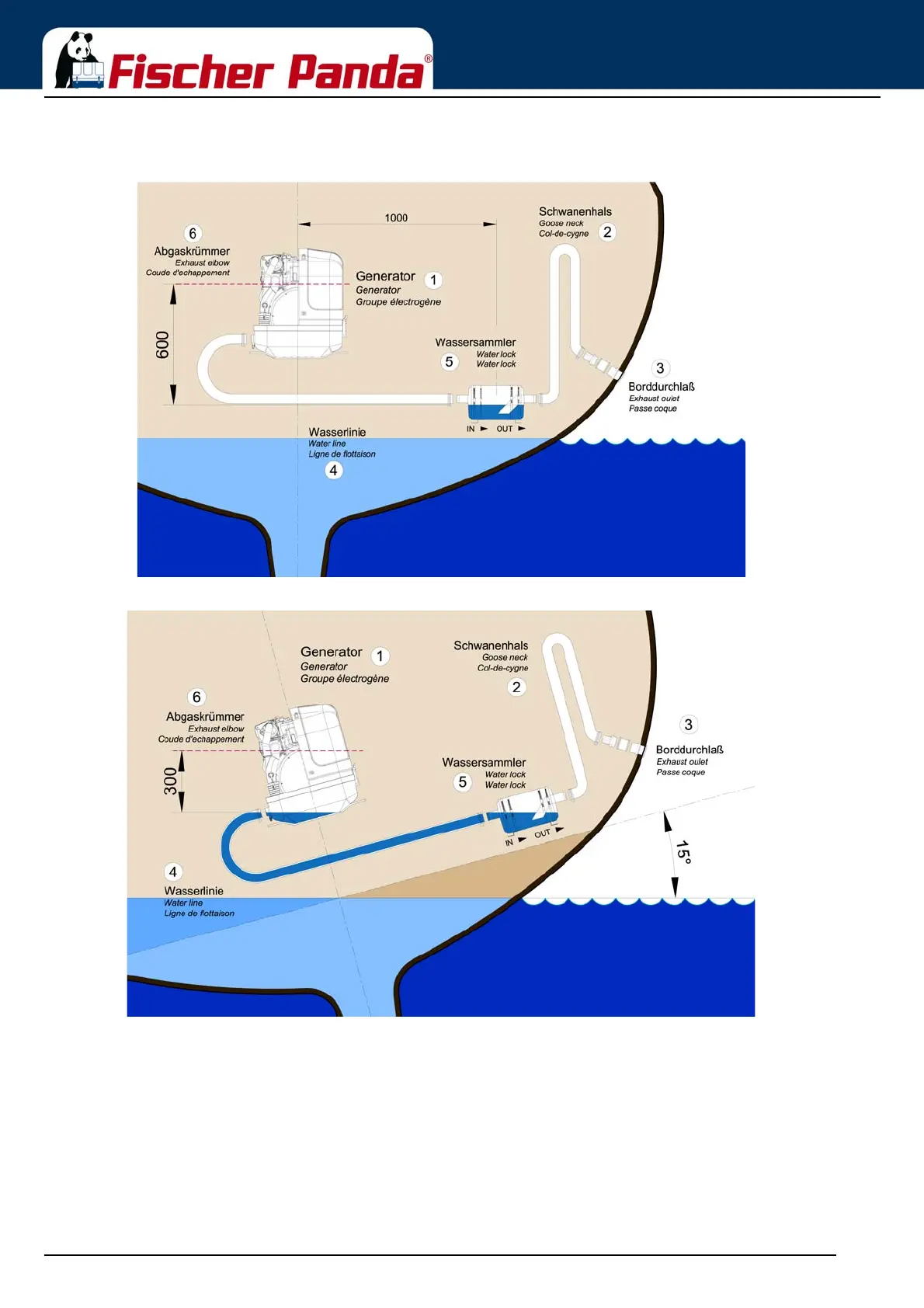

B) Installation distance between waterlock and the generator’s center line 1000 mm
Fig. 6.8.3.2-5: waterlock, 1000 mm next to center line
Fig. 6.8.3.2-6: Tilted position 15 degrees
Tilted position 15 degrees - Fig. 6.11.3.2-6
The distance is, contrary to the original 600 mm, only 327 mm. This is very close to the critical point already.
