Fischer Panda 18 - Page 95

Installation Instructions
18.12.15 Kapitel/Chapter 6: Installation Instructions - Seite/Page 95

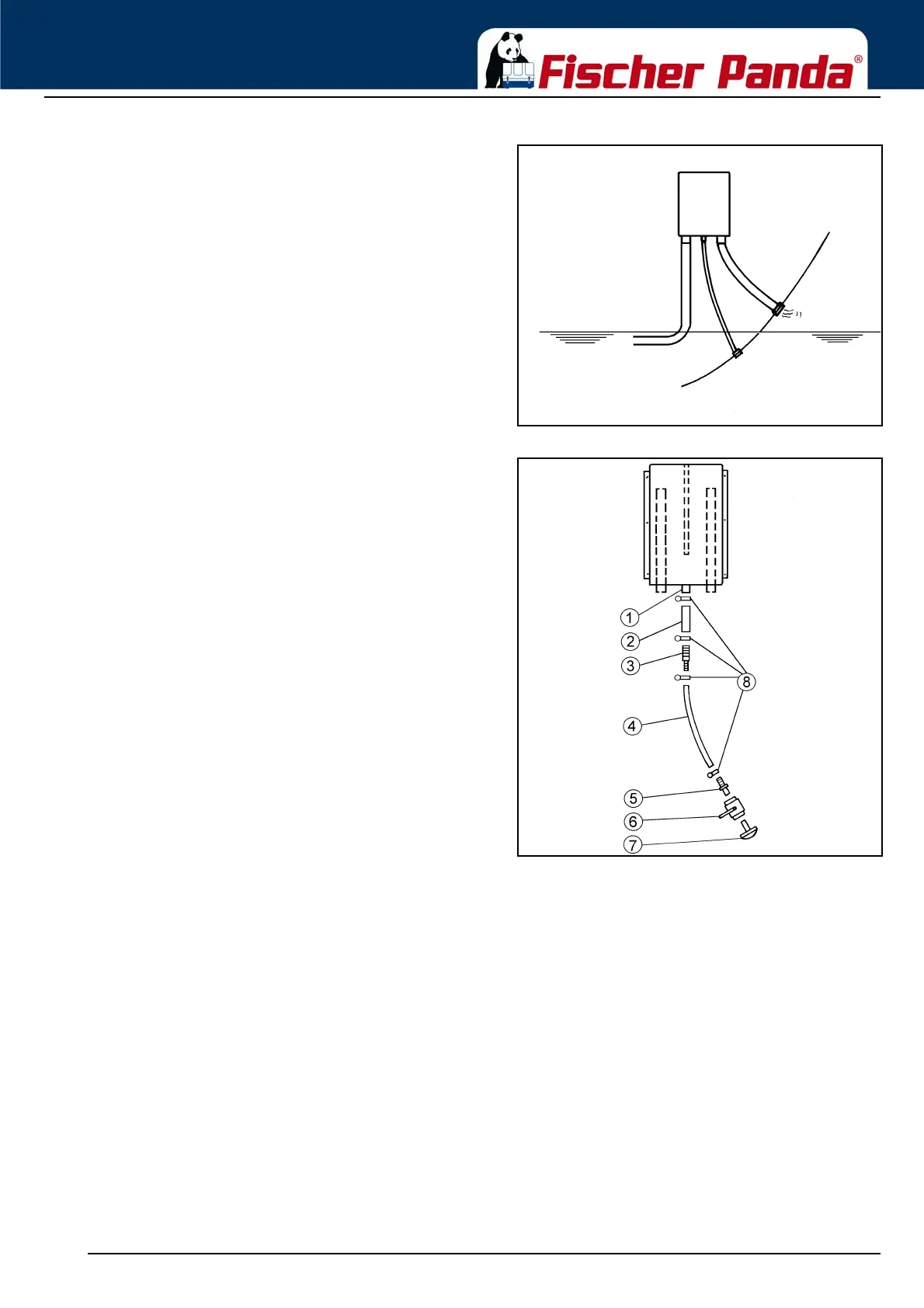

Fig. 6.12.0-1: Water Flow Exhaust Water SeparatorWater flow exhaust water Separator
Fig. 6.12.0-2: Exhaust Water SeparatorWater flow exhaust water Separator
(1) Raw water outlet
(2) Hose connector
(3) Reducer (if required)
(4) Hose
(5) Hose connector
(6) Sea cock
(7) Hull outlet
(8) Hose Clips
