3 General principles

FLUXUS F60* 3.4 Undisturbed flow profile

UMFLUXUS_F60xV5-0EN, 2017-10-16

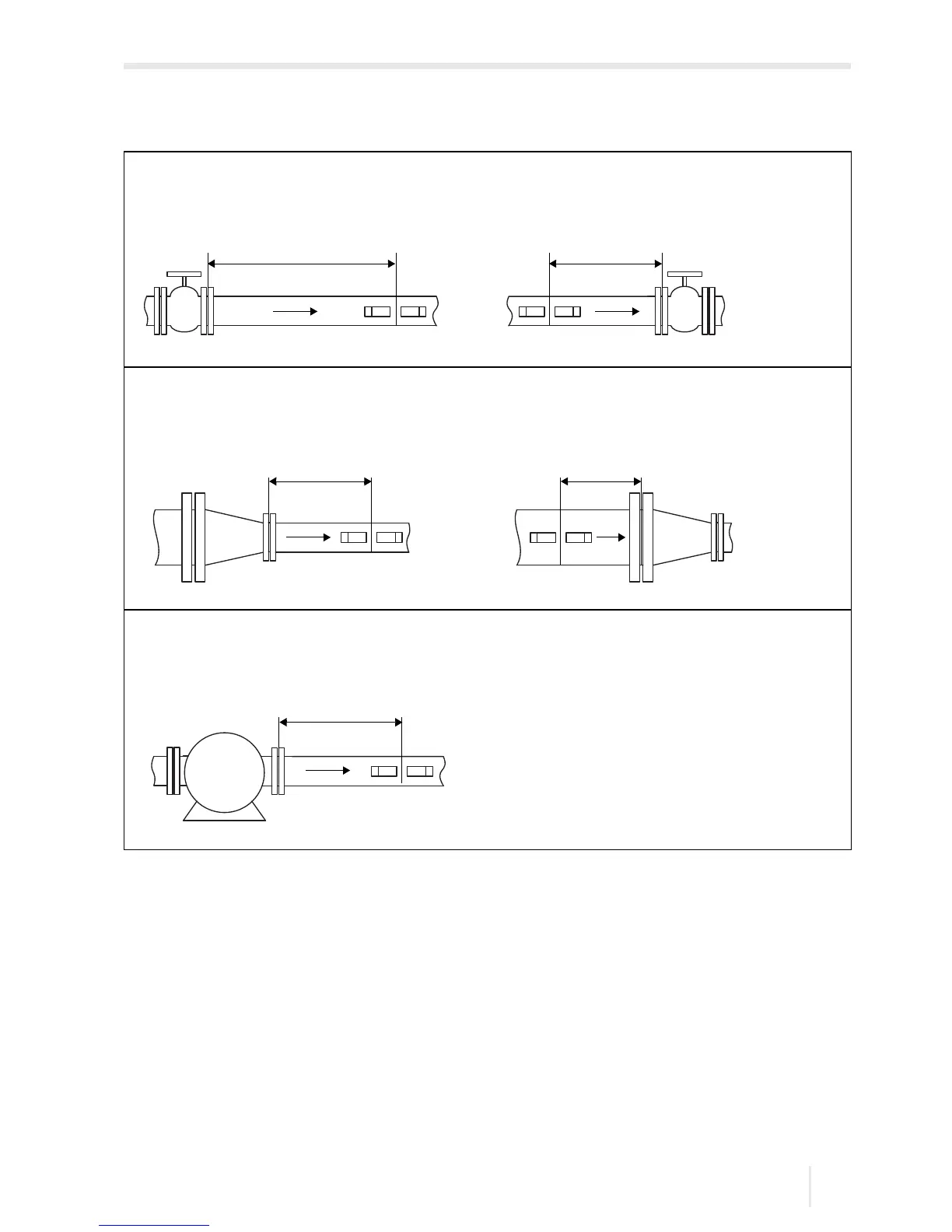

disturbance source: valve

inlet: l ≥ 40 D outlet: l ≥ 5D

disturbance source: reducer

inlet: l ≥ 10 D outlet: l ≥ 5D

disturbance source: pump

inlet: l ≥ 20 D

Tab. 3.1: Recommended distance from disturbance sources

D – nominal pipe diameter at the measuring point

l – recommended distance between disturbance source and transducer position
