6 Installation
FLUXUS F60* 6.3 Temperature probe
43
UMFLUXUS_F60xV5-0EN, 2017-10-16
6.3 Temperature probe
6.3.1 Pipe preparation
The pipe has to be stable. It has to be able to withstand the pressure exerted by the
mounting fixture of the temperature probe.
Rust, paint or deposits on the pipe isolate the temperature at the measuring point. A
good thermal contact between the pipe and the temperature probe is obtained as follows:
Clean the pipe at the selected measuring point.
Remove any insulation material, rust or loose paint.
If present, the paint layer has to be smoothed by grinding. The paint does not need to
be removed completely.

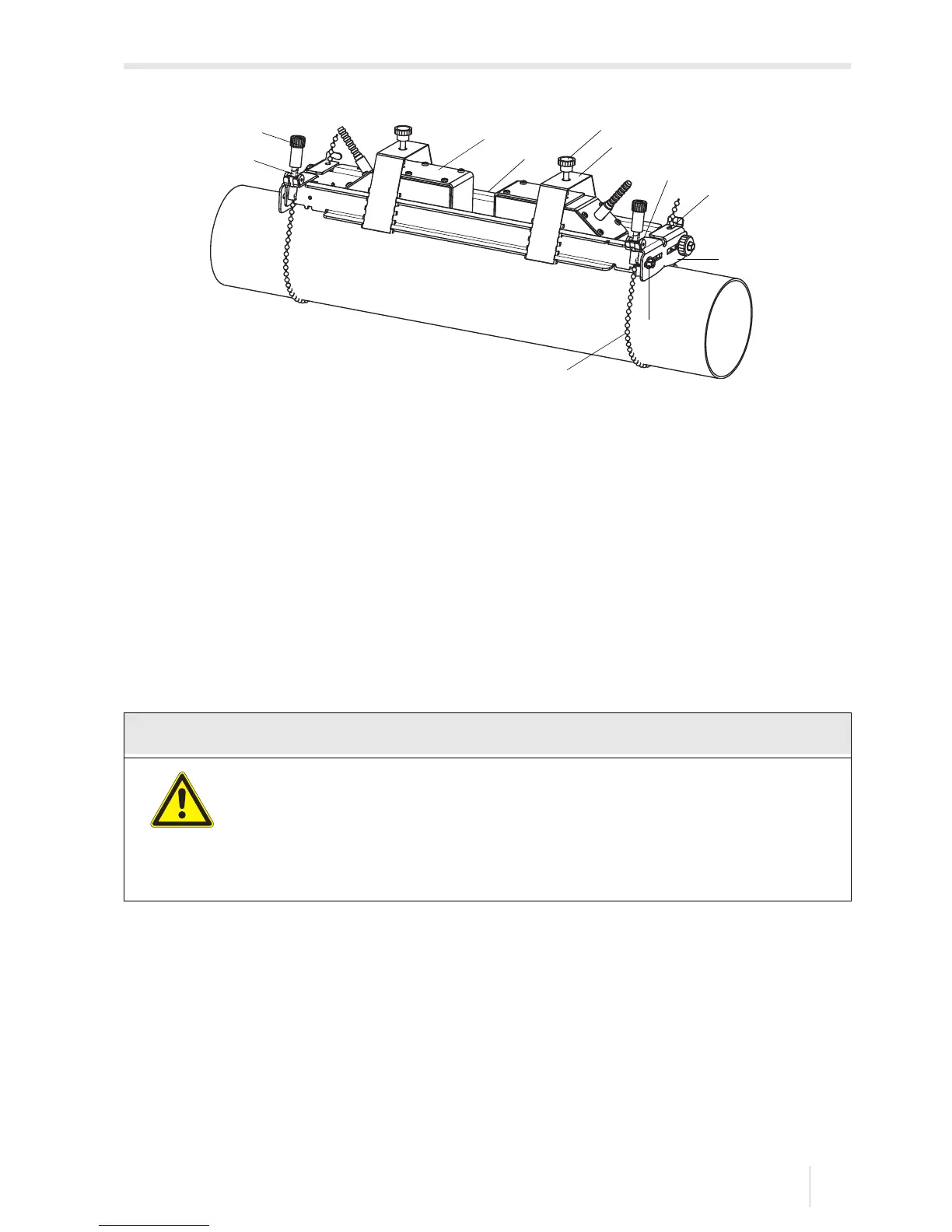

Fig. 6.10: Variofix rail with chains
1 screw
2–rail
3 transducer
4 chain tensioner
5 horizontal groove
6 rail support
7 cylinder
8 ball chain
9 groove
10 spring clip
11 knurled screw
Caution!
Contact with grinding dust
This may result in injuries (e.g., breathing difficulties, skin reactions, eye
irritations).
Wear the required personal protective equipment. Observe the appli-
cable rules.
1
2
3
4
5
6
7
8
9
10
11
