4 Product description
4.1 Measuring system FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
26
4 Product description
4.1 Measuring system
The measurement system consists of a transmitter, the ultrasonic transducers and the
pipe on which the measurement is carried out, see Fig. 4.1.
The ultrasonic transducers are mounted on the pipe. They send and receive ultrasonic
signals through the fluid.
The transmitter controls the measuring cycle, eliminates disturbance signals and ana-
lyzes useful signals. The measured values can be displayed, used for calculations and
transmitted by the transmitter.
4.2 Handling concept
The transmitter is operated via the keyboard.
The selected program branch is displayed in angle brackets and capital letters, see Fig.
4.2. The complete name of the selected program branch is displayed in the lower line.
Select a program branch with key and . Press ENTER.
•par (Parameter)
• mea (Measuring)
• opt (Output Options)
• sf (Special Funct.)

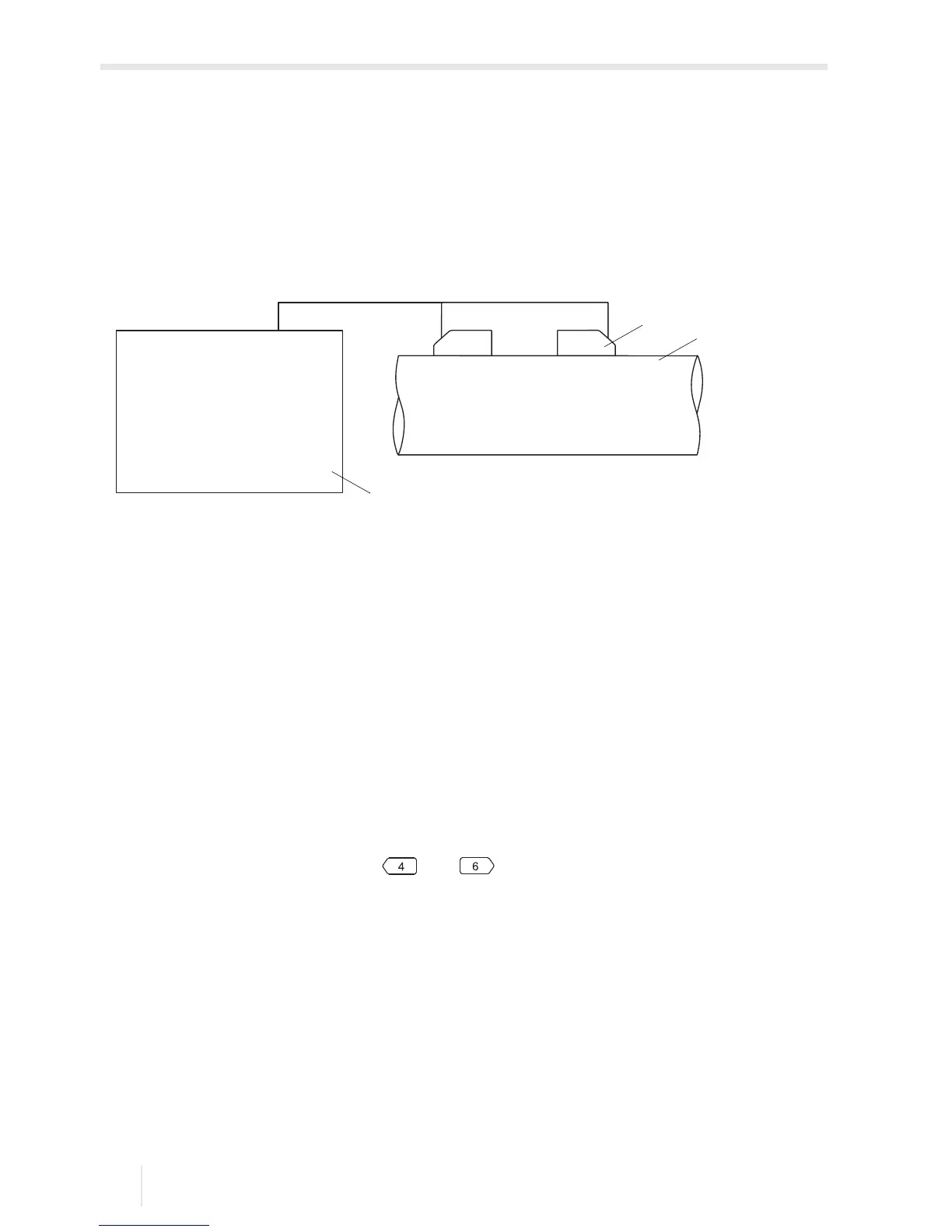

Fig. 4.1: Example of a measurement setup
1 – transducer
2 – pipe
3 – transmitter
