Flexim FLUXUS F60 Series User Manual

6 Installation
6.2 Transducers FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
38

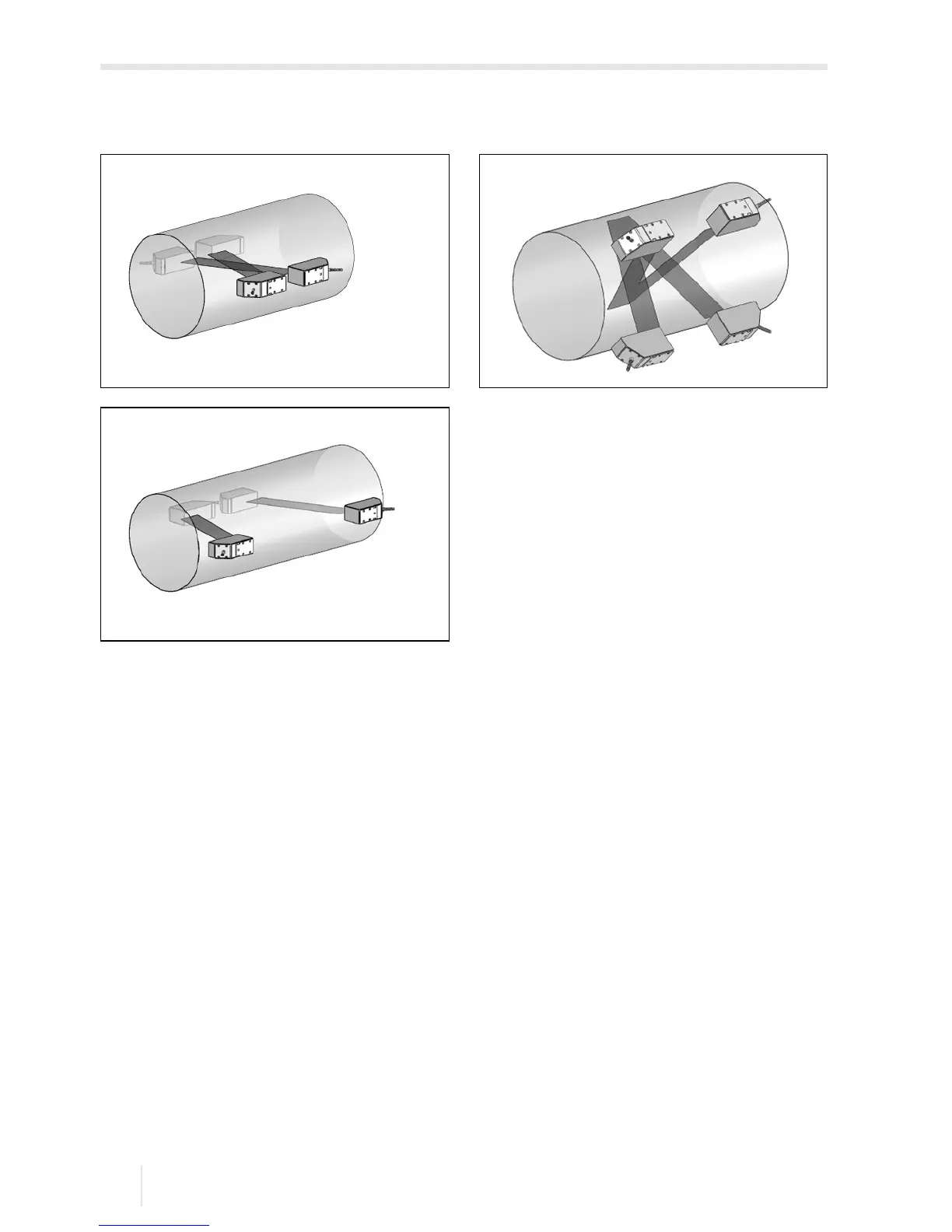

Diagonal arrangement with 2 beams Reflection arrangement with 2 beams
and 2 planes
• same characteristics as reflection ar-
rangement with 2 beams
• additional characteristic:
influences of the flow profile are compen-
sated because the measurement takes
place in 2 planes
• same characteristics as diagonal
arrangement with 1 beam
• additional characteristic:
transverse flow effects are compensated
because the measurement is conducted
with 2 beams
X arrangement
displaced X arrangement
