10 Measurement
10.6 Display of measured values PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
122
Toggling between the channels
If the measurement is started on several channels, the display of the measured values can be adapted as follows:
AutoMux mode
If the AutoMux mode is activated, the measured values of all activated channels (measuring and calculation channels) are
displayed consecutively. The next active channel is selected after 3 s. The toggle time can be changed in the menu item
Special functions\Dialogs/Menus\Toggle time.
HumanMux mode
The measured values of one channel are displayed in the HumanMux mode. The measurement on the other channels
continues.
• Press to display the next activated channel. The measured values for the selected channel are displayed.
Each measurement starts in AutoMux mode. Press to toggle between the modes.
Status line
Important information of the running measurement is summarized in the status line. The quality and precision of the
measurement can be evaluated. Press during the measurement to scroll to the status line.

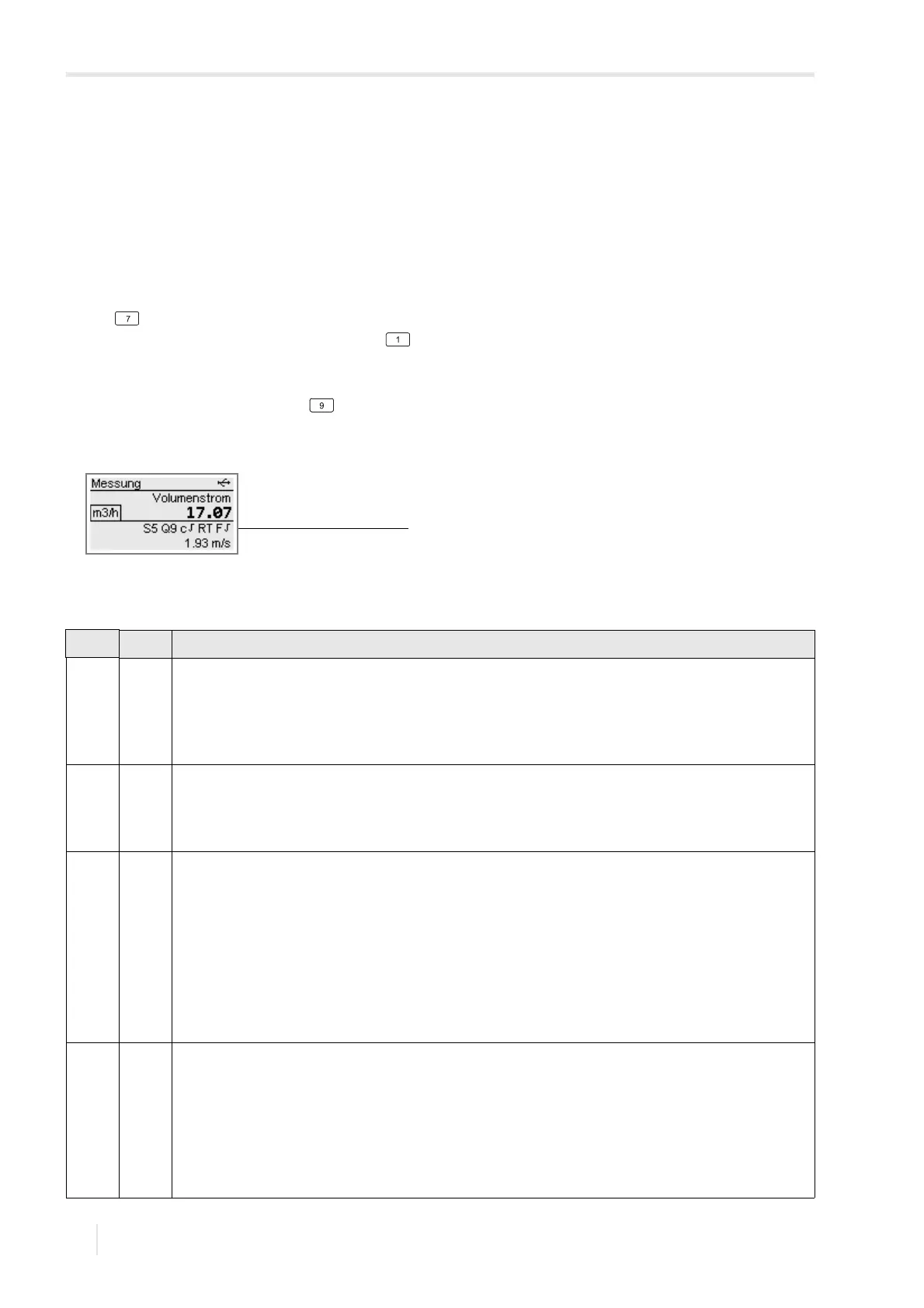

Fig. 10.7: Display of the status line
1 – status line
Tab. 10.7: Description of the status line
value explanation
S signal amplitude
0
…
9
< 5 %
…
≥ 90 %
values ≥ 3 are sufficient for the measurement
Q signal quality
0
…
9
< 5 %
…
≥ 90 %
c sound speed
comparison of the measured and the expected sound speed of the fluid
The expected sound speed is calculated from the fluid parameters.The expected sound speed is calculated from
the fluid parameters.
√ OK, is equal to the expected value
↑ > 20 % of the expected value
↓ < 20 % of the expected value
? unknown, cannot be measured
flow profile
information about the flow profile based on the Reynolds number
T fully turbulent flow profile
L fully laminar flow profile
↕ transition range between laminar and turbulent flow
? unknown, cannot be calculated
