10 Measurement
PIOX S72* 10.6 Display of measured values
123
UMPIOX_S72xV1-9EN, 2022-05-15
Transducer distance
By pressing during the measurement, it is possible to scroll to the display of the transducer distance.
The recommended transducer distance will be displayed in brackets, the measured transducer distance will be displayed
afterwards. The recommended transducer distance might change during the measurement (e.g., due to temperature
fluctuations). A deviation from the recommended transducer distance will be compensated internally.
Transducer temperature
In the SuperUser and SuperUser ext. modes it is possible to display the transducer temperature during the
measurement.
By pressing during the measurement, it is possible to scroll to the transducer temperature display.
F flow velocity
comparison of the measured flow velocity with the flow limits of the system
√ OK, the flow velocity is not within the critical range
↑ the flow velocity is higher than the current limit
↓ the flow velocity is lower than the current cut-off flow
0 the flow velocity is within the limit range of the measuring method
? unknown, cannot be measured

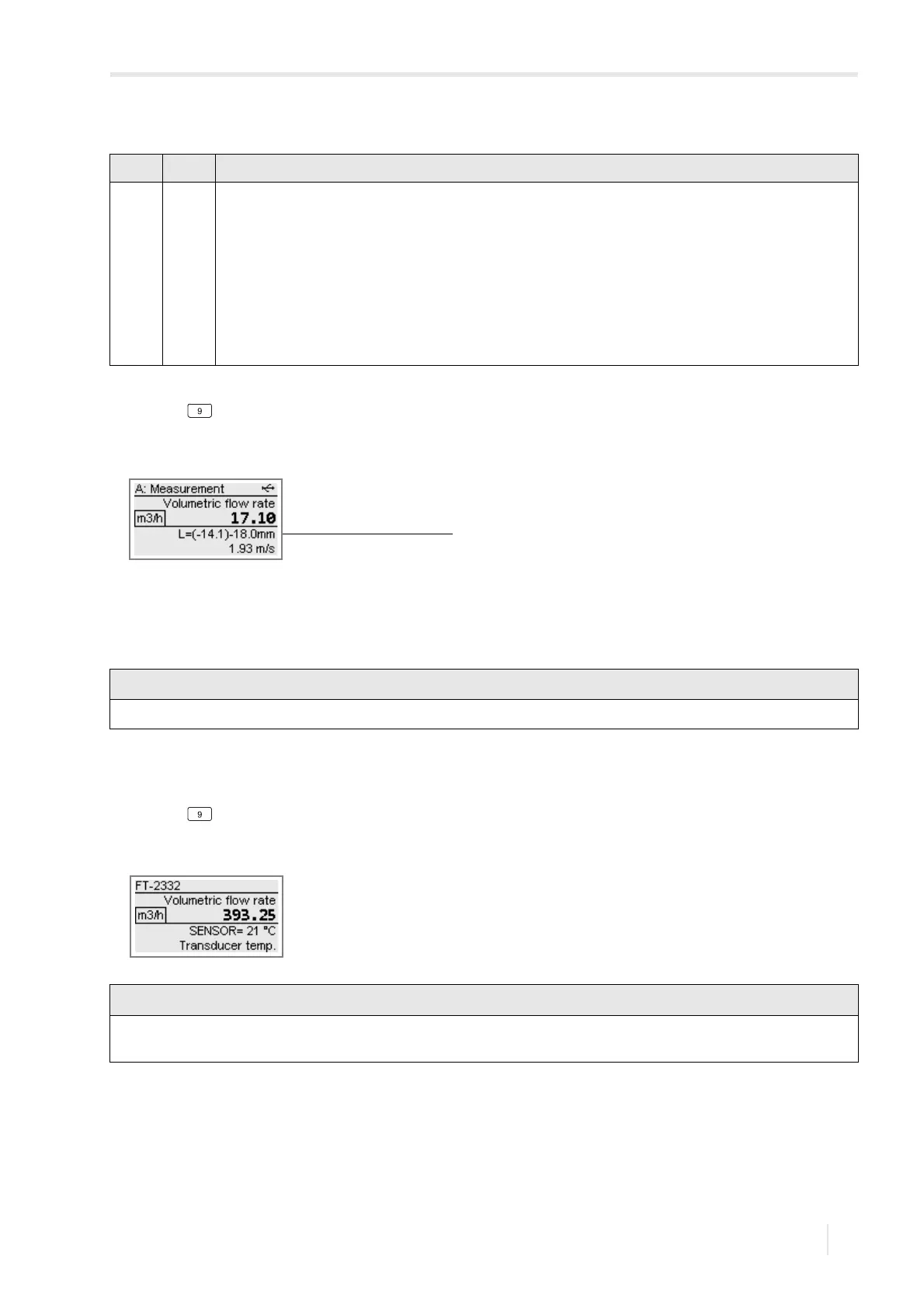

Fig. 10.8: Display of the transducer distance
1 – transducer distance
Never change the transducer distance during the measurement.
Fig. 10.9: Display of the transducer temperature
If the compliance of the specified transducer temperature has to be monitored, an event trigger can be set on the
temperature value.
Tab. 10.7: Description of the status line
value explanation
