7 Mounting
7.1 Transmitter PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
28
Transmitter with aluminum housing
• Close the housing cover pressing it slightly upwards on the side of the screws.
• Hand-tight all screws of the transmitter housing.
7.1.2 Installation of the transmitter
7.1.2.1 Wall mounting
Transmitter with stainless steel housing
• Fix the transmitter to the wall using 4 screws.

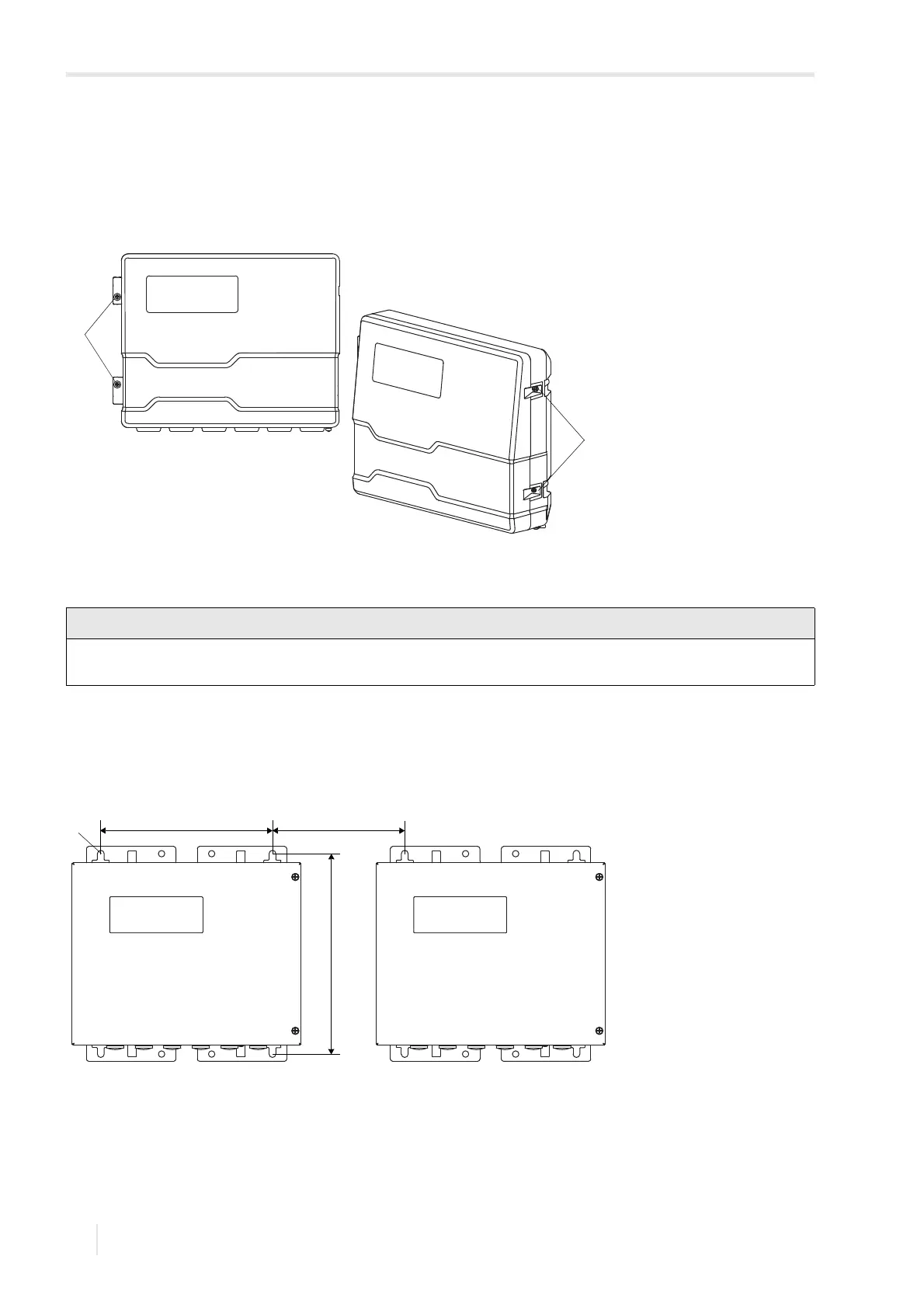

Fig. 7.2: Transmitter
1–screws
Install the equipment in a shady place, the cable glands facing downward. Observe the temperature and weight
indications according to the technical specification when choosing the fixation elements and the place of installation.
Fig. 7.3: Transmitter (dimensions in mm)
1 – fixing hole for wall mounting Ø 9.5
