Flexim PIOX S72 Series User Manual

7 Mounting
PIOX S72* 7.1 Transmitter
29
UMPIOX_S72xV1-9EN, 2022-05-15
Transmitter with aluminum housing
• Fix the wall mount (2) with 3 countersunk-head screws (3) firmly to the wall.
• Attach the transmitter (1) to the lower hooks (7) of the wall mount.
• Fix the transmitter to the wall mount by locking the stop bolt (4) into the destined hole and by firmly tightening the
screw (5).

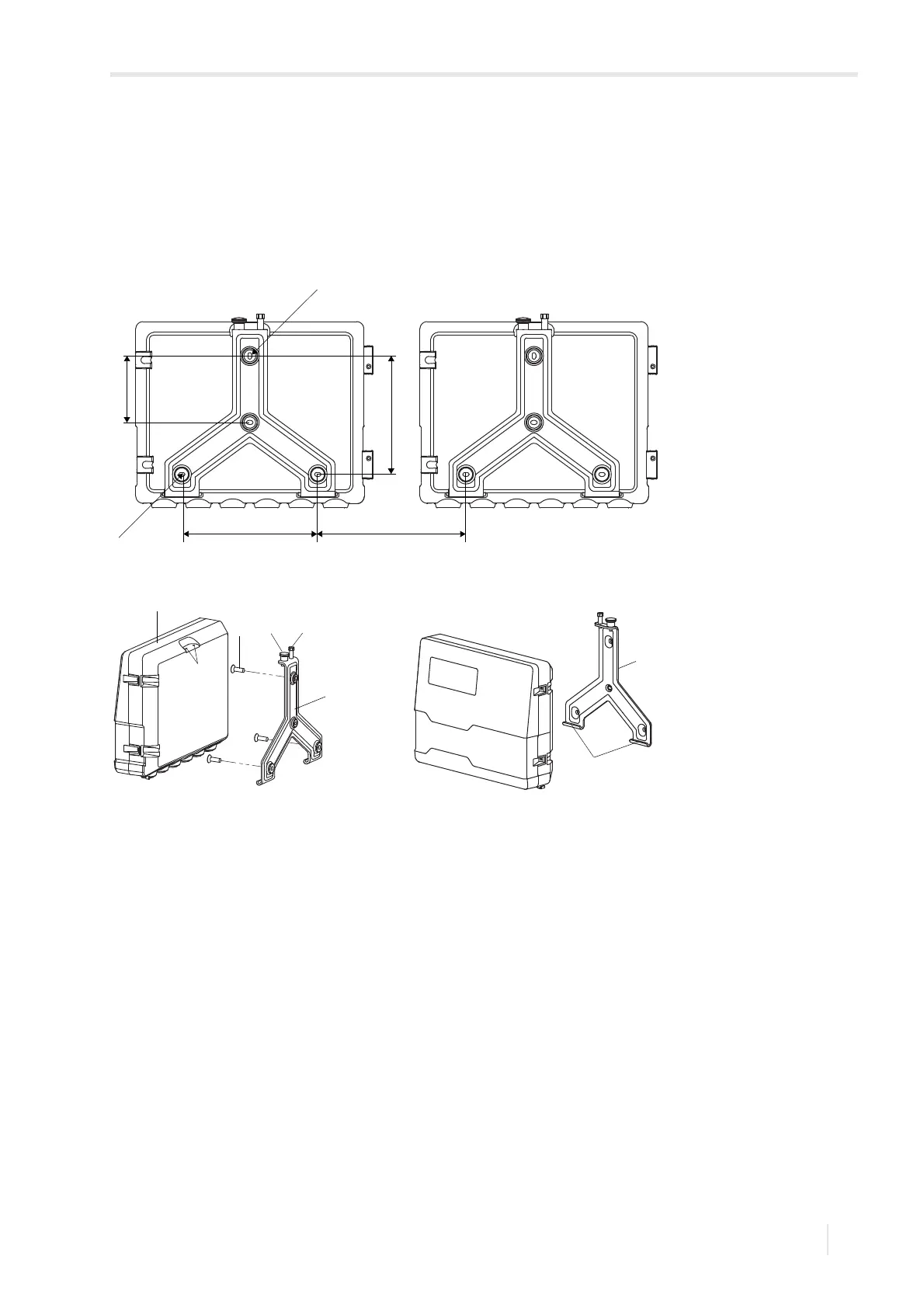

Fig. 7.4: Transmitter (dimensions in mm)
Fig. 7.5: Installation view
1 – transmitter
2 – wall mount
3 – countersunk-head screw
4 – stop bolt
5–screw
6 – hole
7 – hook
165.6
9 × 5
Ø 6
.
2
9 × 5
190.2 min. 180
93
2
1
5
3
6
2
7
4
