7 Mounting
7.2 Transducers PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
56
Remove the cover from the mounted transducer mounting fixture Variofix C as follows:
• Loosen the screws (see Fig. 7.56).
• Use a lever tool to remove the cover.
• Insert the lever tool (max. 3 mm) in one of the 4 openings of the cover (see Fig. 7.57).
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other 3 openings.
• Remove the cover from the rail.

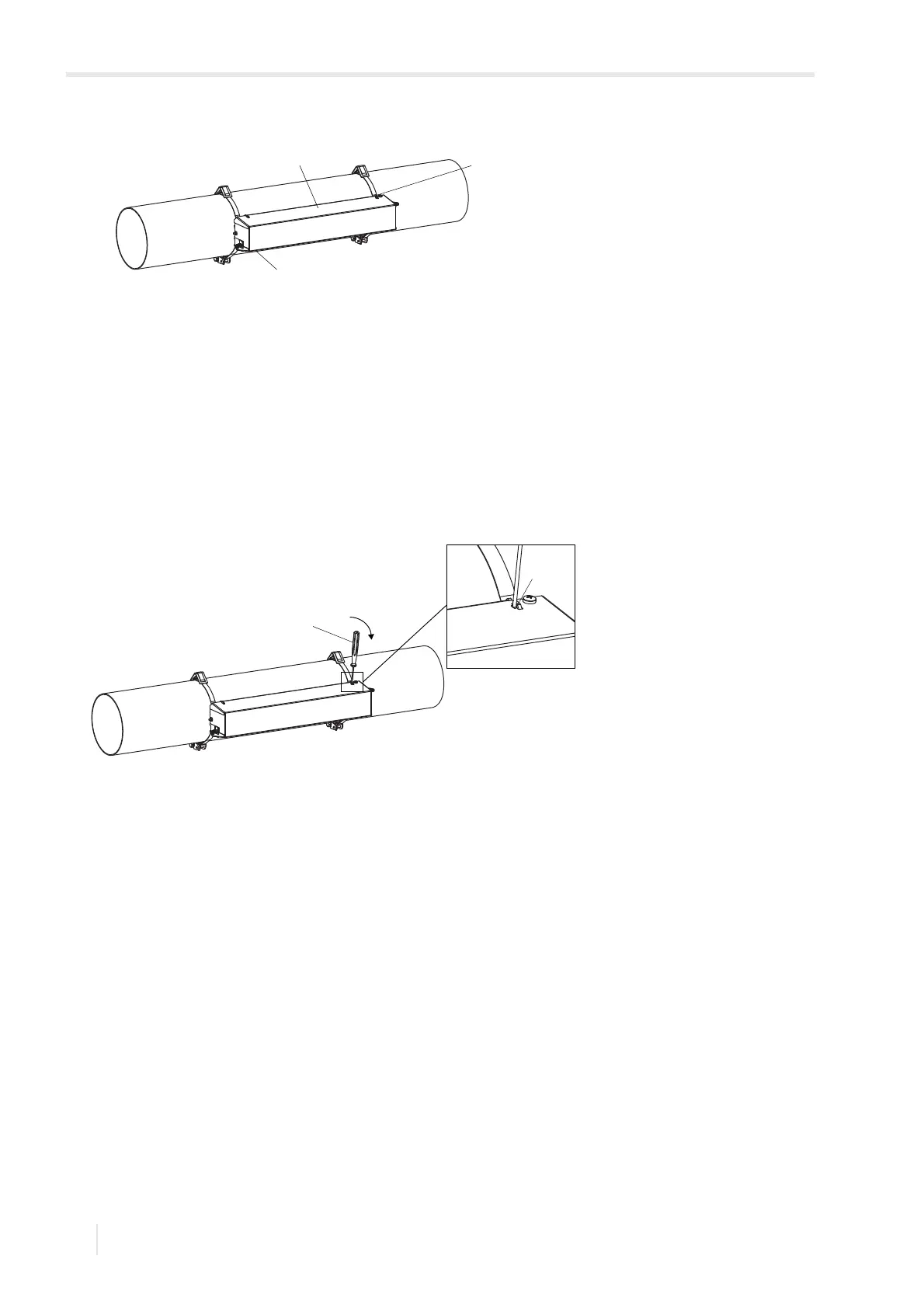

Fig. 7.56: Variofix C with transducers on the pipe
1–cover
2–screw
Fig. 7.57: Removal of the cover
1–lever tool
2 – support
