Step 2: Fixation of the rail to the pipe
• Insert the tension strap through the slot of the tension strap clamp (if present, see Fig. 7.62) or through the rail fixture,
see Fig. 7.63.
• Position the clasp on the pipe.
• Make sure, the clasp rests flatly along the pipe.
• Place the tension strap around the pipe and insert it into the clasp.
• Tighten the tension strap.
• Tighten the clasp screw.
• Repeat the steps for the second tension strap, but do not tighten too firmly.
Before fixing the rail to the pipe, it has to be assured that the rail and the pipe are aligned in parallel position.
• Repeat the steps for the second rail, see Fig. 7.64.

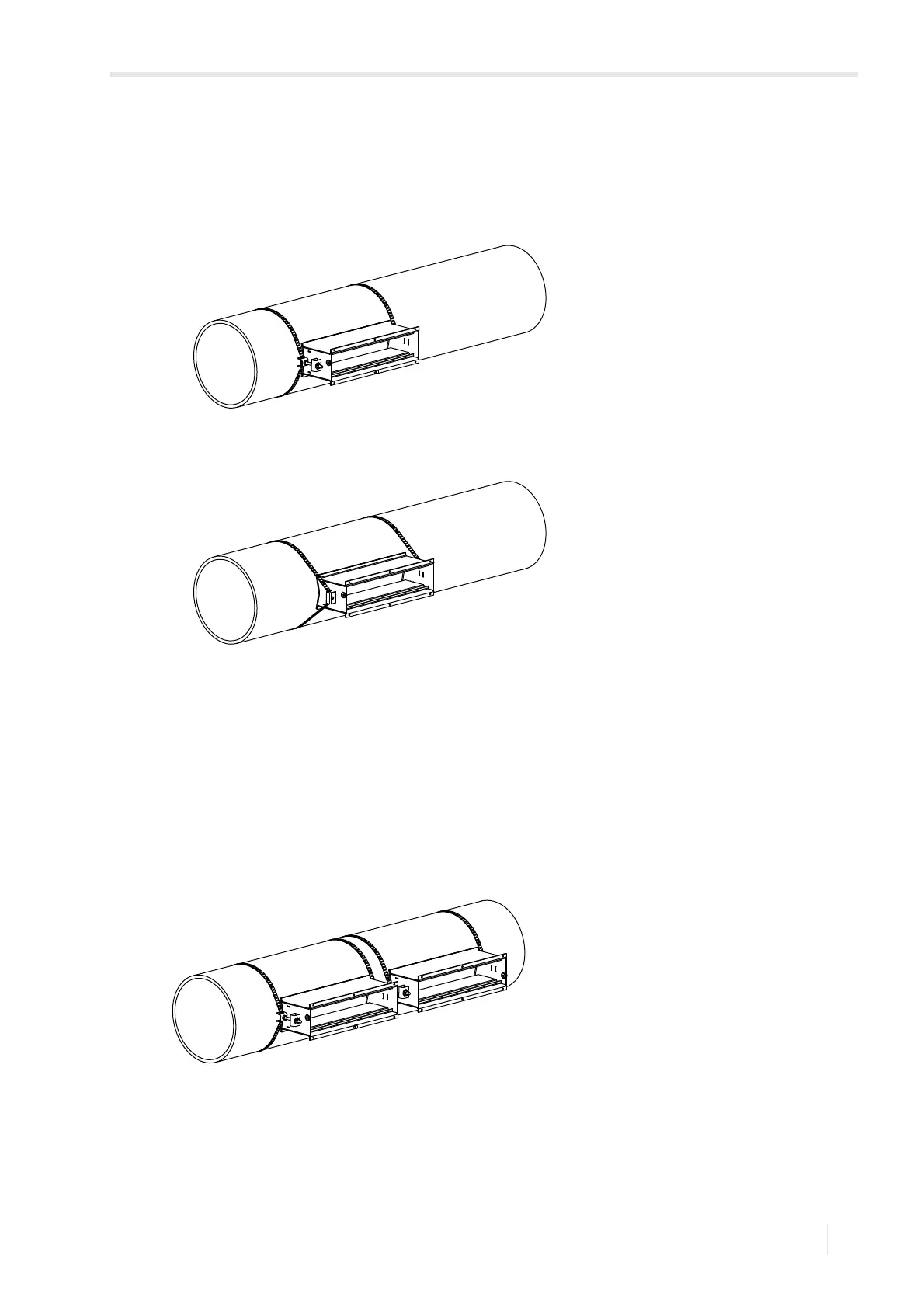

Fig. 7.62: Tension strap through tension strap clamp
Fig. 7.63: Tension strap through rail fixture
Fig. 7.64: Pipe with 2 rails
