7 Mounting
7.2 Transducers PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
58
Mounting
When measuring in diagonal arrangement, the transducer mounting fixtures are mounted on opposite sides of the pipe,
see Fig. 7.59. When measuring in reflection arrangement, the transducer mounting fixtures are mounted on the same side
of the pipe, see Fig. 7.60.
In the following, the mounting of 2 transducer mounting fixtures in reflection arrangement is described (1 transducer
mounting fixture for each transducer).
Overview of installation steps
• step 1
preparation
• step 2
fixation of the rail to the pipe
• step 3
mounting of the transducers in the mounting fixture PermaLok
Step 1: Preparation
• Remove the cover and slider of the PermaLok rail.
• Cut the tension strap to length (pipe circumference + 120 mm).
The clasp is fixed to the tension strap (see Fig. 7.15).

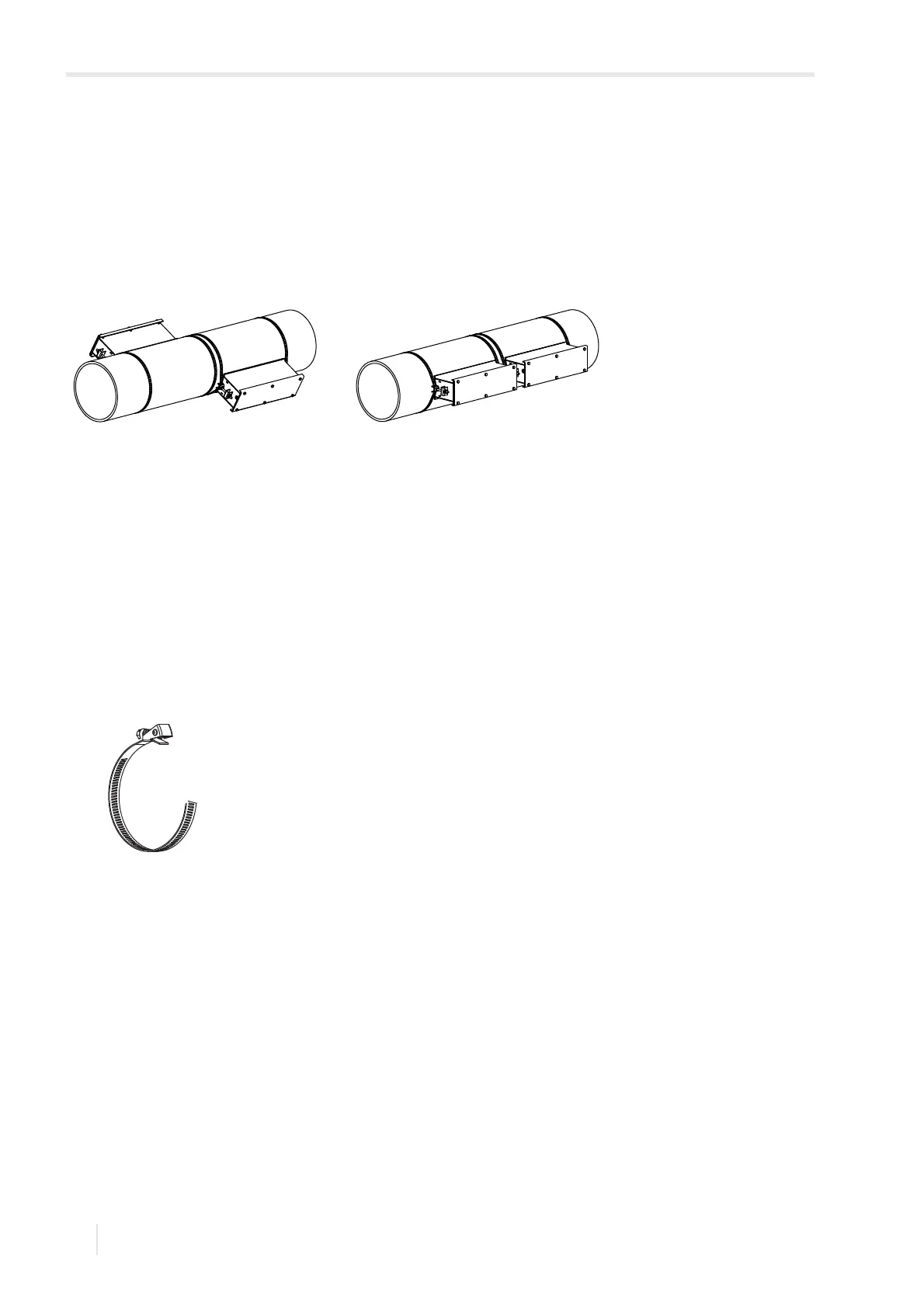

Fig. 7.59: Transducer mounting fixture
PermaLok (diagonal arrangement)
Fig. 7.60: Transducer mounting fixture
PermaLok (reflection arrangement)
Fig. 7.61: Quick release clasp with tension strap
