7 Mounting
PIOX S72* 7.2 Transducers
63
UMPIOX_S72xV1-9EN, 2022-05-15
• Hold the tabs of the clip using pliers and pull the solid band completely through the slot of the clip, see Fig. 7.73.
• Bend the end of the solid band back over the set of teeth, see Fig. 7.74.
• Fold the tabs of the clip over the solid band and cut the protruding band off, see Fig. 7.75.
• Position the tension strap clamp on the opposite side of the clip.
• Measure the distance x, see Fig. 7.76. Repeat the steps for the second band and place it at the measured distance x to
the other.
• Measure the distance x, see Fig. 7.76. Repeat the steps for the second tension strap and attach it to the tube at ate
measured distance x.
• Mount the PermaLok onto the tension strap clamp and tighten the screws.
• Insert the transducers into the PermaLok as described in the section 7.2.2.6.

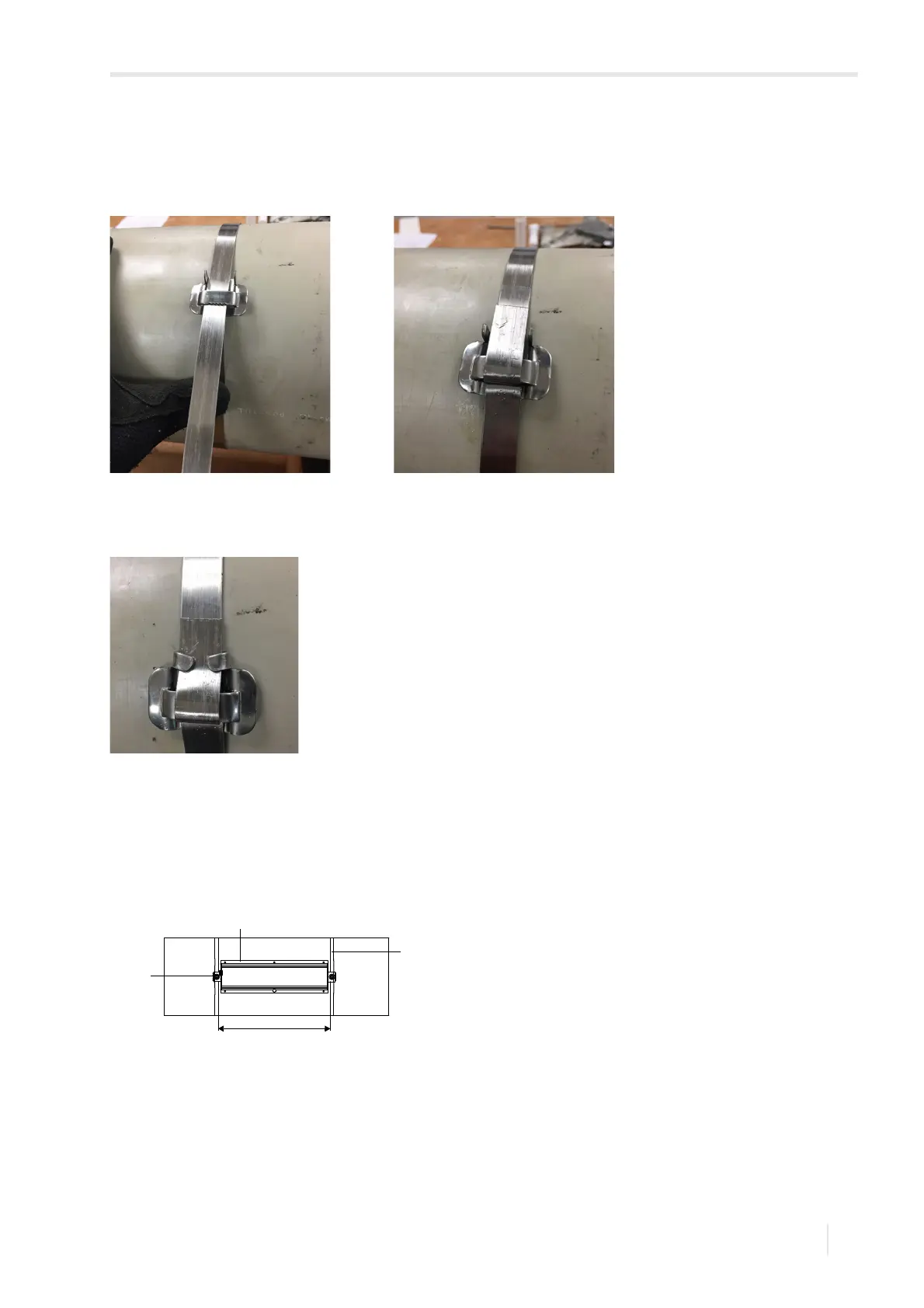

Fig. 7.73 Fig. 7.74
Fig. 7.75
Fig. 7.76
1 – tension strap clamp
2–rail
3 – solid band
