Flexim PIOX S72 Series User Manual

8 Connection
PIOX S72* 8.1 Transducers
69
UMPIOX_S72xV1-9EN, 2022-05-15
8.1.1.2 Transducer cable with plastic jacket and stripped ends
• Remove the blind plug for the connection of the transducer cable.
• Open the cable gland of the transducer cable. The compression part remains in the cap nut.
• Push the transducer cable through the cap nut and the compression part.
• Prepare the transducer cable.
• Shorten the external shield and brush it back over the compression part.
• Screw the sealing ring side of the basic part into the transmitter housing.
• Insert the transducer cable into the housing.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the transducer cable to the terminals of the transmitter.

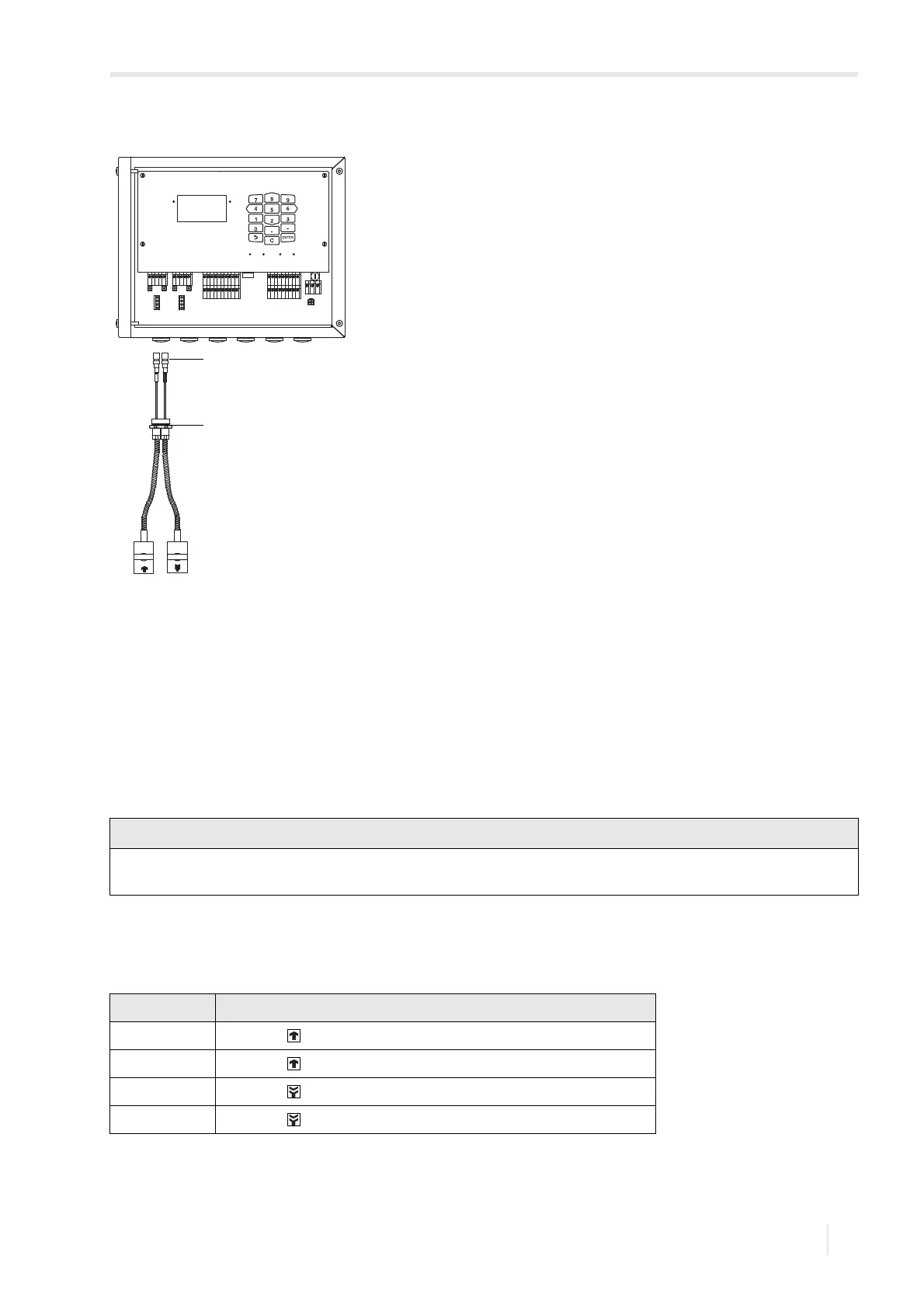

Fig. 8.2: Connection of the transducer cable with SMB connectors to the transmitter
1 – SMB connector
2 – cable gland
Notice!
For good electromagnetic compatibility (EMC), it is important to ensure good electrical contact between the external
shield and the cap nut (and thus the housing).
Tab. 8.2: Terminal assignment
terminal connection
AV transducer (core)
AVS transducer (internal shield)
ARS transducer (internal shield)
AR transducer (core)
A
B
SNAP
DISP
DISP
MODEFAST
MUX
NEXT
Q
ON
Q+Q-
3x Q
OFF
LAN
USB
A+ B- P1+ P2+ P3+ P4+
P5a
P6a P7a
S S P1- P2- P3- P4-
P5b
P6b P7b
X2 X3
X_AV
KL11 KL12 KL7KL8 KL9KL10
KL4
X_AR X_BV X_BR
T1A T1B S1 T2A T2B T3A T3B S3 T4B T4A
T1a T1b S1 T2a T2b T3a T3b S3 T4b T4a
N(-)
PE
L(+)
AV AVS AGN ARS AR BV BVS BGN BRS BR
2
1
