Configuration and Operation
95
Quasar CP-6302 Range User Guide - Ver. 8 - January 31, 2021
To configure RS-485 settings
1. From the Protocol drop-down menu, select PelcoD or PelcoP. The default is PelcoD.
2. From the Baudrate drop-down menu, select the desired baud rate. The default is 2400.
3. The Data bits field is disabled.
4. The Parity field is disabled.
5. The Stop bits field is disabled.
6. In the ID number text box, enter the ID number (1-254). The ID number is provided by the camera
according to the camera model, protocol and dipswitch settings. The default is 1.
7. Click SAVE.
5.8 Log Out

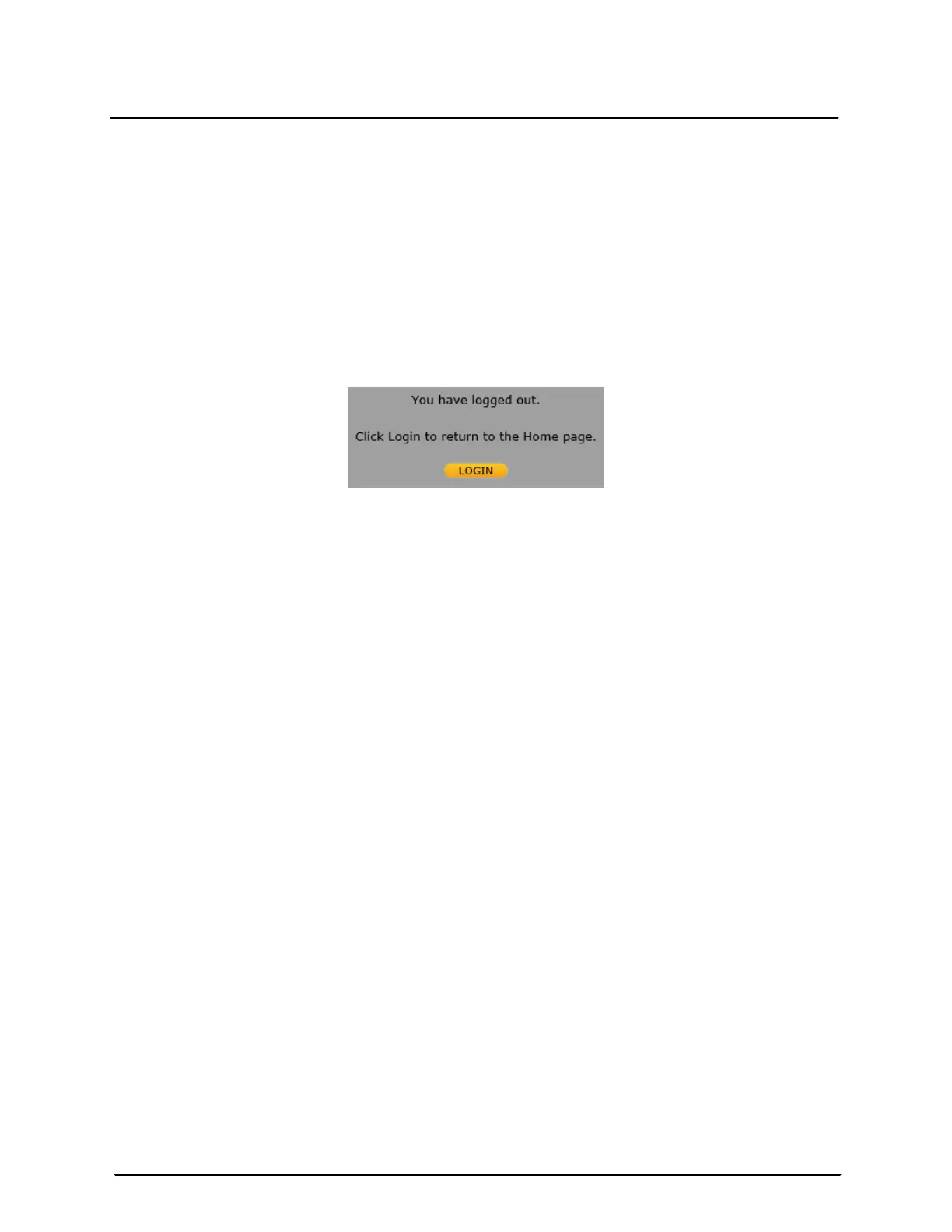

Selecting the Logout link on the Home page to close the session. The following message appears:
Login Message
Upon clicking Login, the Login dialog box opens.
