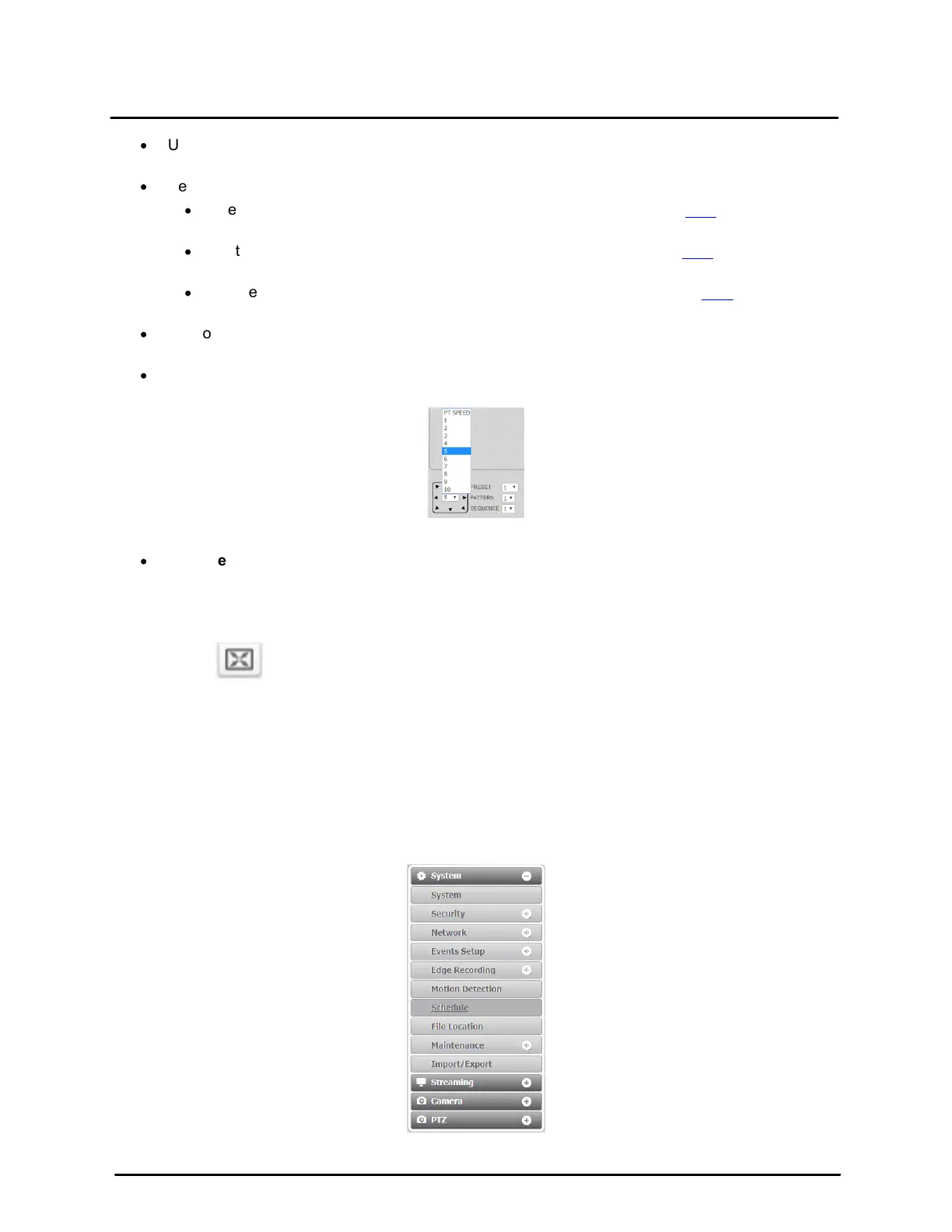

Use the PT control panel to move the camera and to run Presets, Pattern lines, and Sequence
paths.
·
Select a Preset/Pattern/Sequence line.
·
Preset - Select a number from 1-10 from the drop-down menu. Click here for details about
this function.
·
Pattern - Select a number from 1-8 from the drop-down menu. Click here for details about
this function.
·
Sequence - Select a number from 1-8 from the drop-down menu. Click here for details
about this function.
·
To stop running a Pattern or Sequence path, move the cursor to the Live View pane and move
the camera in any direction.
·
The PT Speed setting controls the rate at which the pan and tilt changes. Set a number between
1 and 10 as the PT Speed every time users pan or tilt the camera via the PT control panel.
PT Speed Drop-Down Menu
·
Live View Pane Pan/Tilt Control
Control pan/tilt by left-clicking the cursor in the Live View pane and dragging the pointer in any
direction. Placing the pointer close to the center of the image results in a slow rate of change.
Placing the pointer further from the center results in a more rapid rate of change.
Click this button to view the monitored image in full screen mode when using Digital Zoom Control. Use
the mouse to control zoom effects in Full Screen mode: scroll the mouse wheel (for zoom in/out), and
drag the mouse into any direction. Double-click on the screen to exit Full Screen mode and return to the
Home page.
5.3 System Tab
The Settings tab in the Navigation Bar opens the sections in the sidebar that are used for configuring the
camera. It opens on the System section, which includes the following tabs:
System Section Tabs
To Next Page
