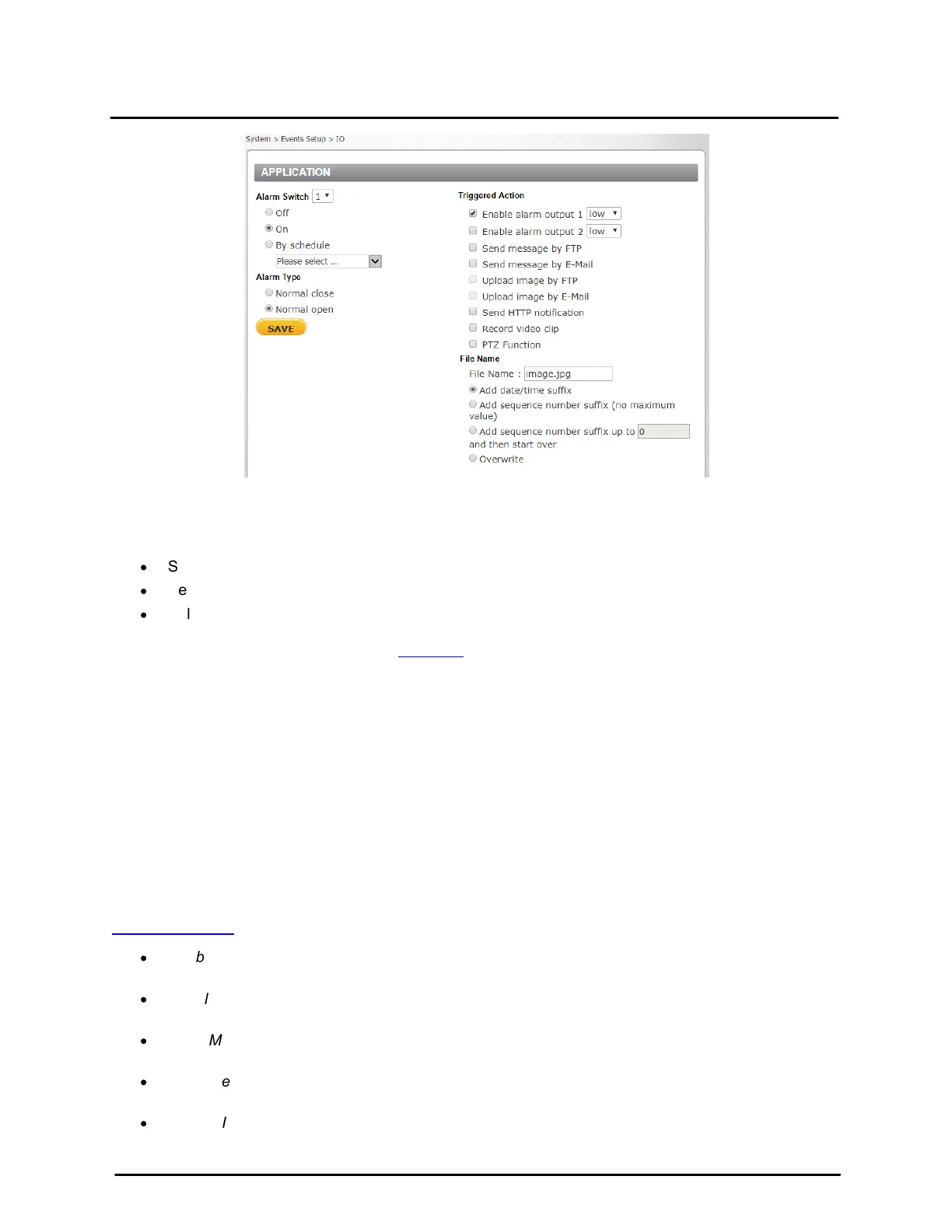

IO Screen
Alarm Switch
Four alarms are available. For each alarm, the Administrator can select from the following options:
·
Select Off to disable an alarm.
·
Select On to enable an alarm (default setting).
·
Select By Schedule to set a schedule. Then click Please Select to select up to 10 schedules from
the drop-down list that opens. The selected schedules are displayed in the Please Select text
box. To set a schedule, open the Schedule tab.
Click SAVE after configuring the settings.
Alarm Type
Select an alarm type (Normal close or Normal open) that corresponds to the alarm application. Normal
open is the default setting. Click SAVE after configuring the settings.
Alarm Output
Define the normal alarm output signal as Output high or Output low, according to the current alarm
application. The default setting is high. Click SAVE after configuring the settings.
Triggered Action
The Administrator can specify various alarm actions to take when an alarm is triggered. See the
Triggered Actions section for a detailed description of the actions. The following options are available:
·
Enable alarm output 1 – Check this box and select the predefined type of alarm output (low or
high) to enable alarm relay when a network failure is detected.
·
Enable alarm output 2 – Check this box and select the predefined type of alarm output (low or
high) to enable alarm relay when a network failure is detected.
·
Send Message by FTP – The Administrator can select whether to send an alarm message by
FTP when an alarm is triggered.
·
Send message by E-Mail – The Administrator can select whether to send an alarm message by
e-mail when an alarm is triggered.
·
Upload Image by FTP – Selecting this option enables you to assign an FTP site and configure
various parameters.
To Next Page
