Fluke Calibration 5322A - Calibrate Insulation Resistance Testers

Multifunction Electrical Tester Calibrator
Calibrate Insulation Resistance Testers
167
Calibrate Insulation Resistance Testers
The Product’s high resistance source function is designed for calibrating
insulation resistance functions on megohmmeters, installation testers, appliance
testers and electrical safety analyzers. The high resistance function can also be
used for calibrating ohmmeters in a specified resistance range. Figures 32
through 35 show connections required for different DUTs for an insulation
resistance calibration procedure.
Fluke 5322A
Fluke 1653
PE
(L2/Green)
L (L1/Red)
iep049.eps

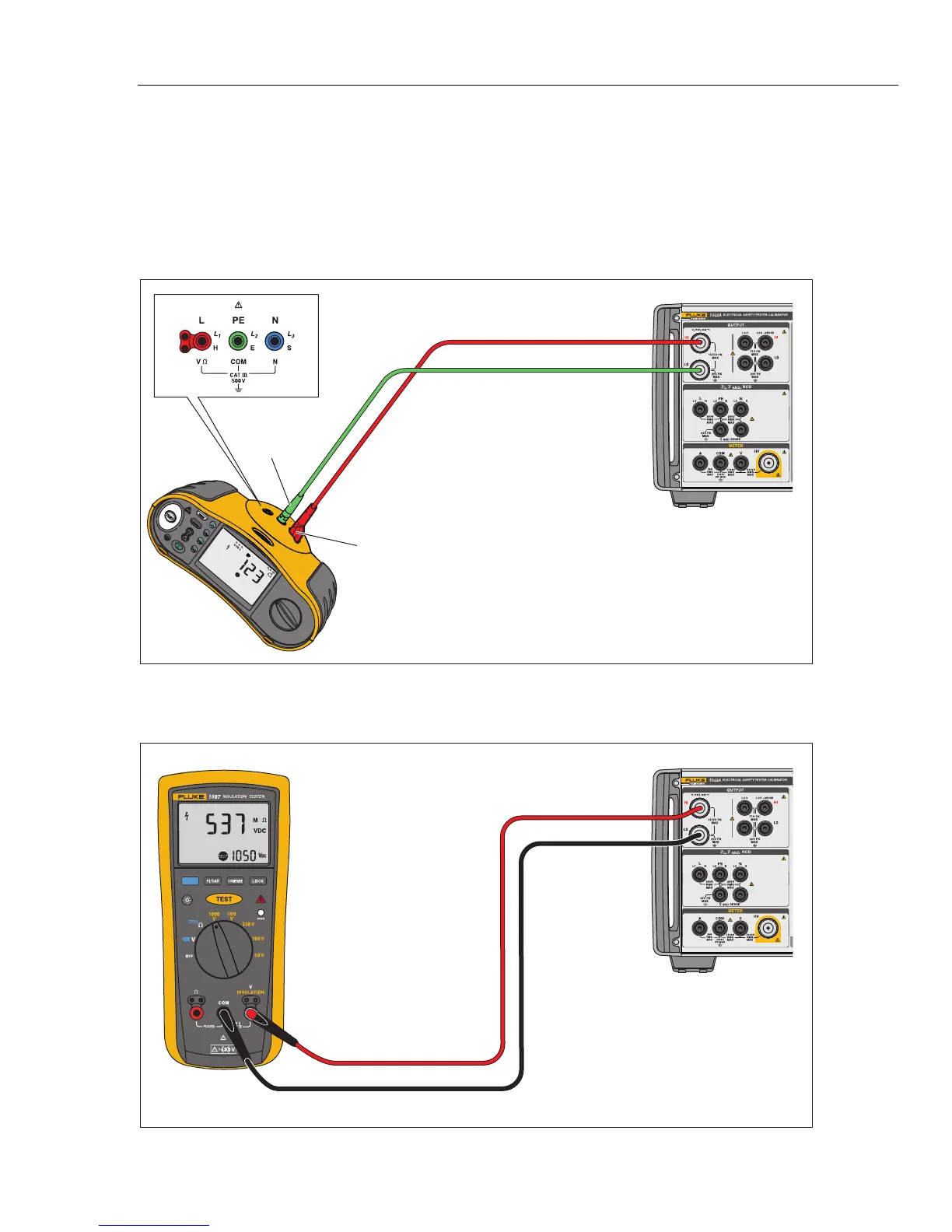

Figure 32. Calibrating Insulation Resistance of an Installation Tester
Fluke 1507
Fluke 5322A
iep047.eps
Figure 33. Calibrating Insulation Resistance of a Handheld Insulation Tester
