Perform Flash Class I and Flash Class II Tests on (PAT) Portable Appliance Testers
199
Perform Flash Class I and Flash Class II Tests on (PAT)
Portable Appliance Testers
PAT testers perform a Flash Class I test by applying a test voltage of 1.5 kV
nominal between the appliance test socket (L+N) and PE test terminals, and a
Flash Class II test by applying a test voltage of 3 kV nominal between the Flash
Probe and the appliance test socket (L+N) test terminals. Any leakage or
breakdown current flowing is detected and displayed, using the same leakage
current detection and measurement circuits for both the Class I and Class II
Flash tests. Therefore, PAT testers are generally calibrated for Flash leakage
current using only their Class I Flash test function. Use the following procedures
for Flash Class I and Class II voltage measurements, and leakage current
measurements:
To do a Flash Class I open circuit output voltage test:
1. Push .
2. Use the Mode softkey to select the Flash V Mode function.
3. Connect the Product and DUT as in Figures 57.
4. Select the function Flash Class I on the DUT.
5. Push the Test button on the DUT.
6. The DUT connects the test voltage between L+N and PE terminals.
7. The Product shows the reading of the DUT test voltage output.
8. Compare the reading on the display with the DUT test voltage specification.
Fluke 5322A
DUT
iep196.eps

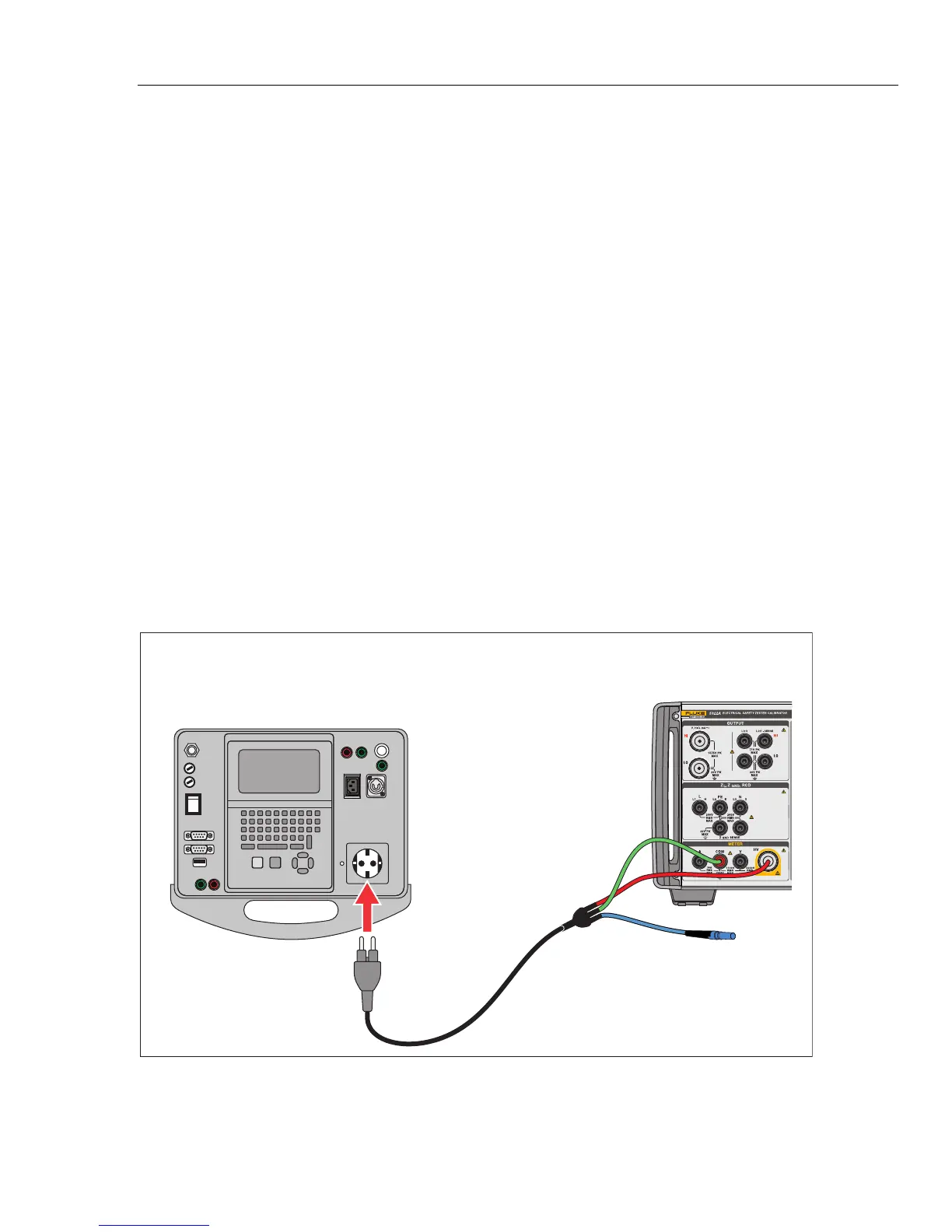

Figure 57. Class I Flash Test Voltage Measurement
