5322A
Operators Manual
70

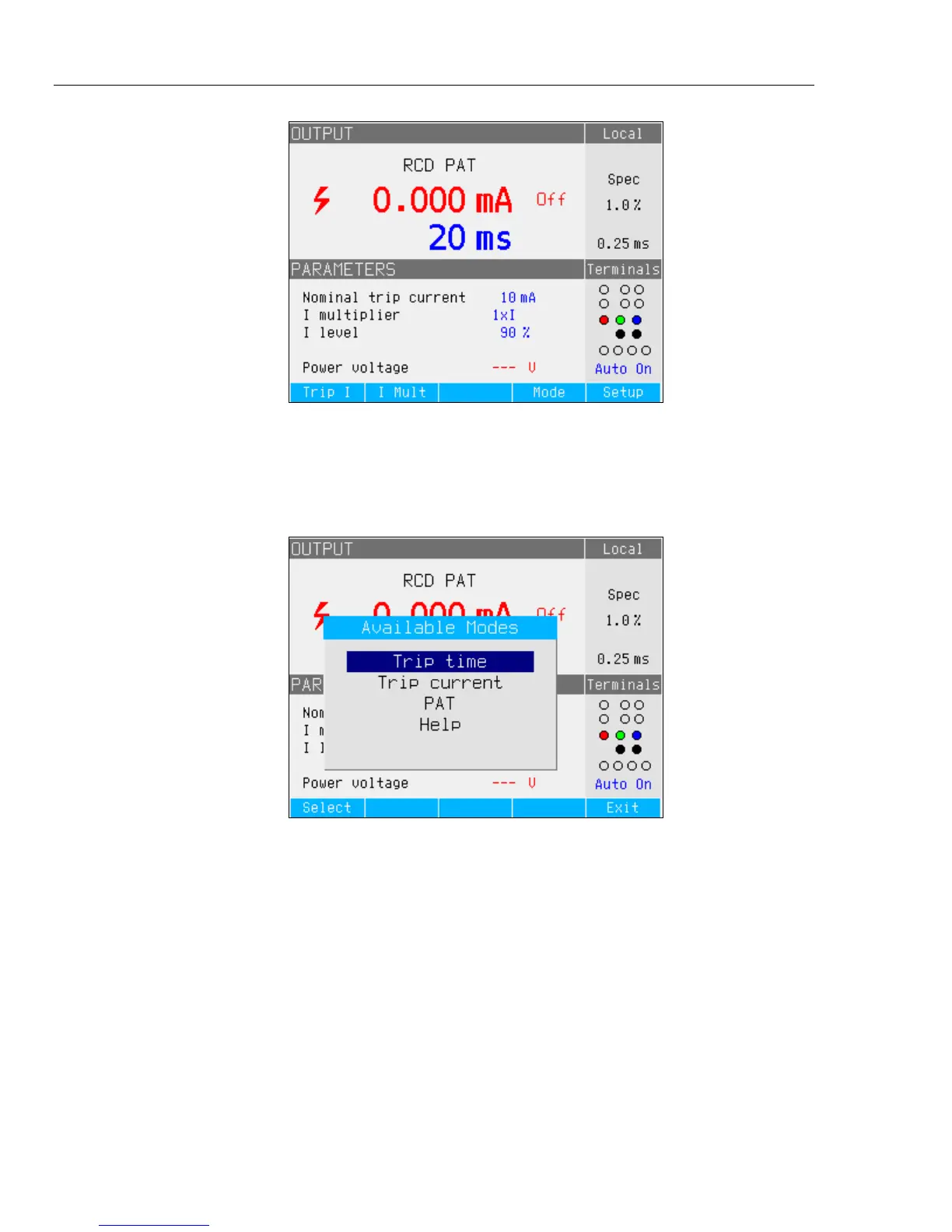

Figure 18. Calibrating RCD Trip Time in PATs
The Product shows the following for an RCD in PAT calibration, see Figure 19:
• Measured trip current as an rms value.
• Power voltage
Figure 19. RCD PAT Modes
AC/DC Voltage Outputs (5322A/VLC only)
The Product calibrates instruments and testers with ac and/or dc voltage
measurement functions up to 600 V. With a burden current over 200 mA at
230 V, the Product also makes a good stable power source for DUTs like
appliance testers.
To perform a voltage calibration:
1. Push .
2. If the Product is not already in the desired mode (ac or dc voltage), push the
AC/DC softkey.
