5322A
Operators Manual
20

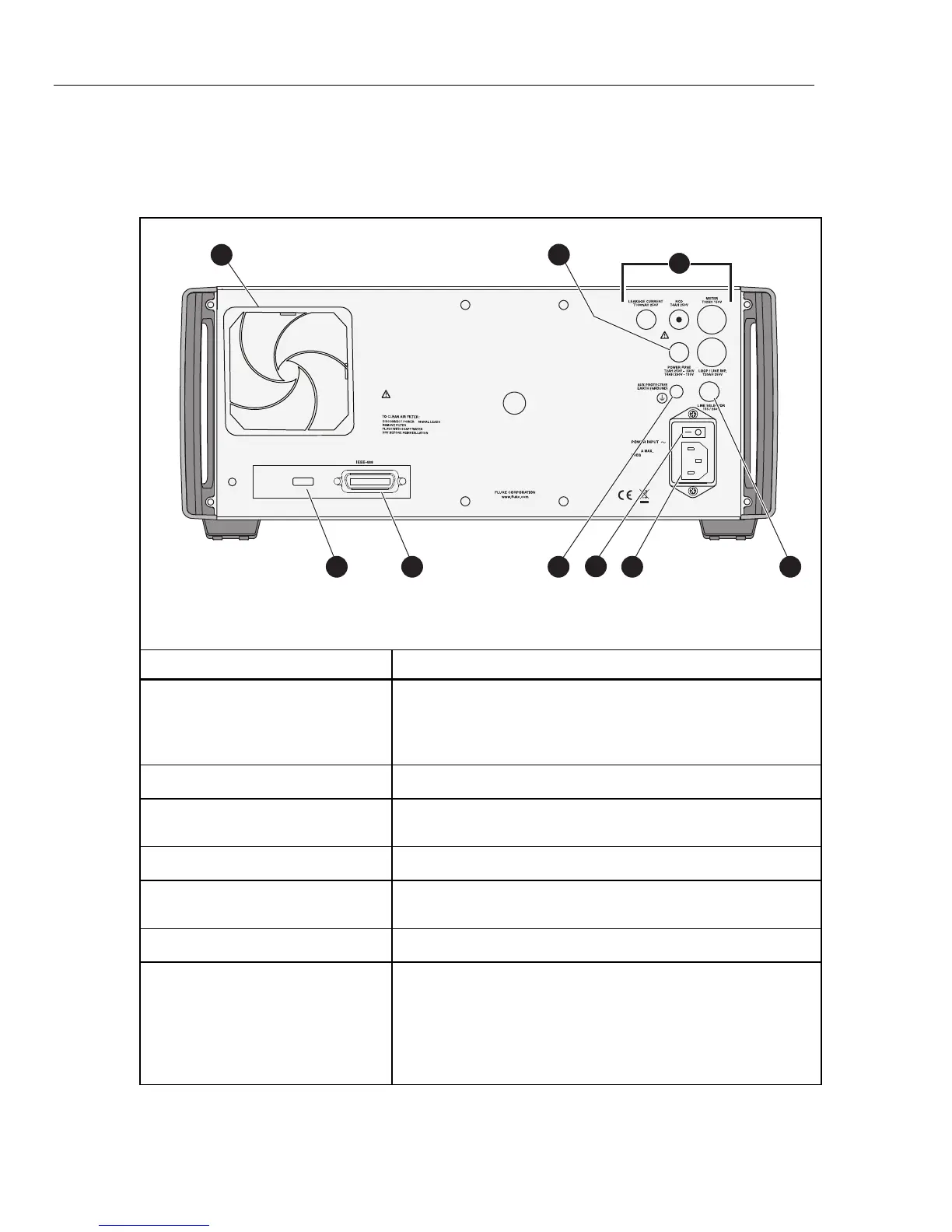

Rear-Panel Features
Table 6 lists the items found on the rear panel.
Table 6. Rear-Panel Features
USB
1250V
50/60 Hz
1
115/230V
7 589 4
6
2
3
&
X
»
iep002.eps
Item Description
Fan Filter
The filter covers the air intake to keep dust and debris out of the
chassis. A fan inside the Product provides a constant cooling air
flow throughout the chassis by blowing air out. See Clean the Air
Filter.
Line Power Fuse Holder
The line power fuse. Refer to Access the Fuses.
Signal Fuse Holders
These fuses protect the signal outputs and inputs. Refer to
Access the Fuses.
D Line Voltage Selection Switch
Selects the line voltage. Refer to Select the Line Voltage.
E AC Power Input Connector
A grounded male three-prong connector that accepts the line
power cord.
F AC Power Switch
Turns Product ac mains power on and off.
G Chassis Ground Binding Post
A binding post that is internally grounded to the chassis. If the
Product is the ground reference point in a system, this binding
post can be used for connecting other instruments to earth
ground. (The chassis is normally connected to earth ground
through the three conductor line cord instead of through the earth
ground binding post.)
