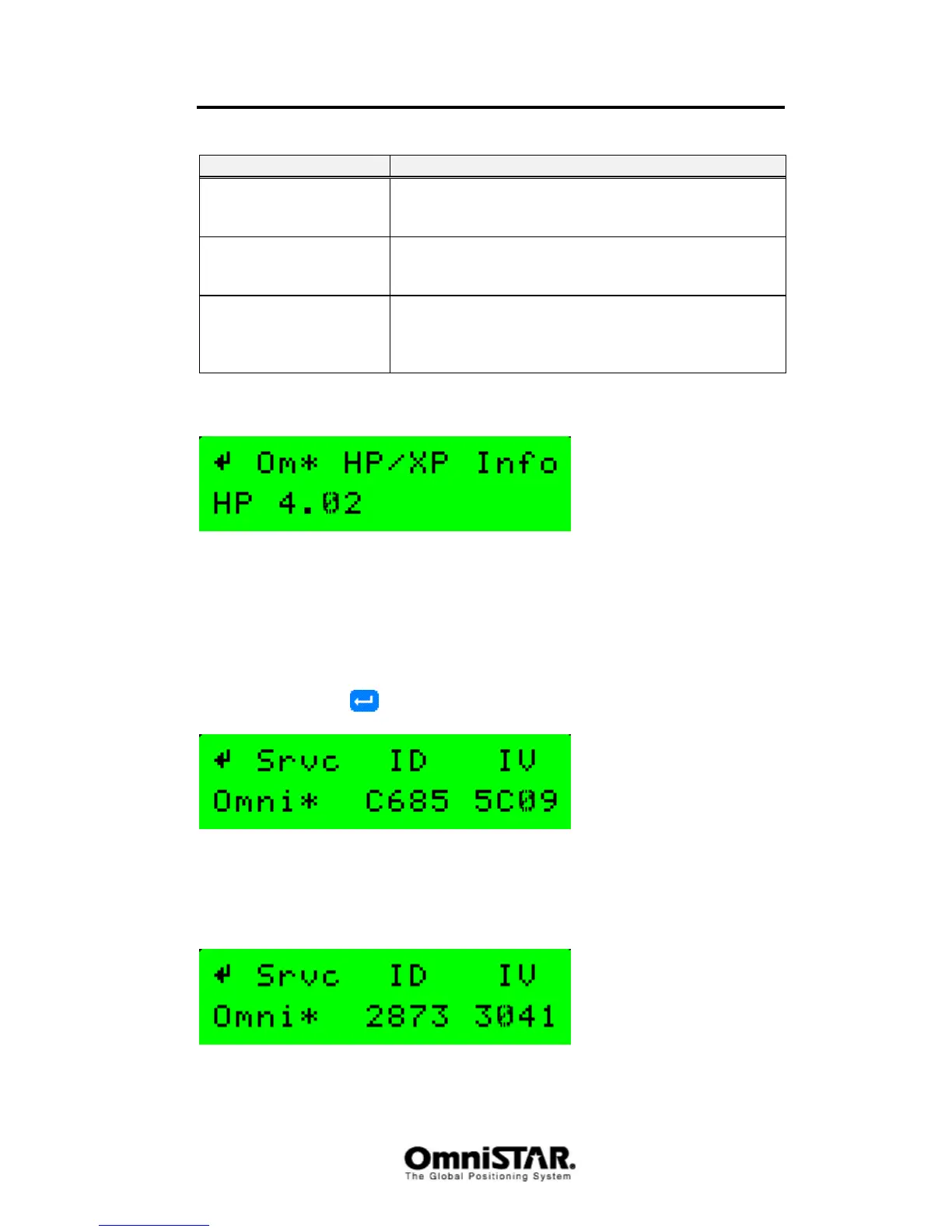

Fugro 8200HP - Figure 40: HP;XP Info Screen: HP Version; Figure 41: XP;HP Info Screen: Srvc ID Screen 1; Figure 42: XP;HP Info Screen: Srvc ID Screen 2; Table 4: XP;HP Subscription Types

OmniSTAR 8200HP User Manual
Issue 1.07, 10/2008
29
Subs. Mode Description
000A
000B (converged)
000C
XP only mode
0014
0016 (converged)
0017
HP only mode
001E
001F
0020
0021 (converged)
HP/XP combined mode (HP
+
)
Table 4: XP/HP Subscription types
Figure 40: HP/XP Info screen: HP version
The HP version screen shows the HP firmware version currently loaded in the
receiver.
Srvc ID
The Srvc ID screen consists of 2 information screens, that can be cycled
through by pressing
repeatedly.
Figure 41: XP/HP Info screen: Srvc ID screen 1
The Service ID screens show information about the OmniSTAR satellite uplink
and initial uplink vectors. Shown in Figure 41 are the satellite uplink ID and
initial vector for the Europe uplink.
Figure 42: XP/HP Info screen: Srvc ID screen 2
