The CAN messages screen is used to control the output messages from the
receiver. Messages displayed in upper case are output, messages displayed in
lower case are not. Default, all three J1939 messages are active.
CAN Msg Rate

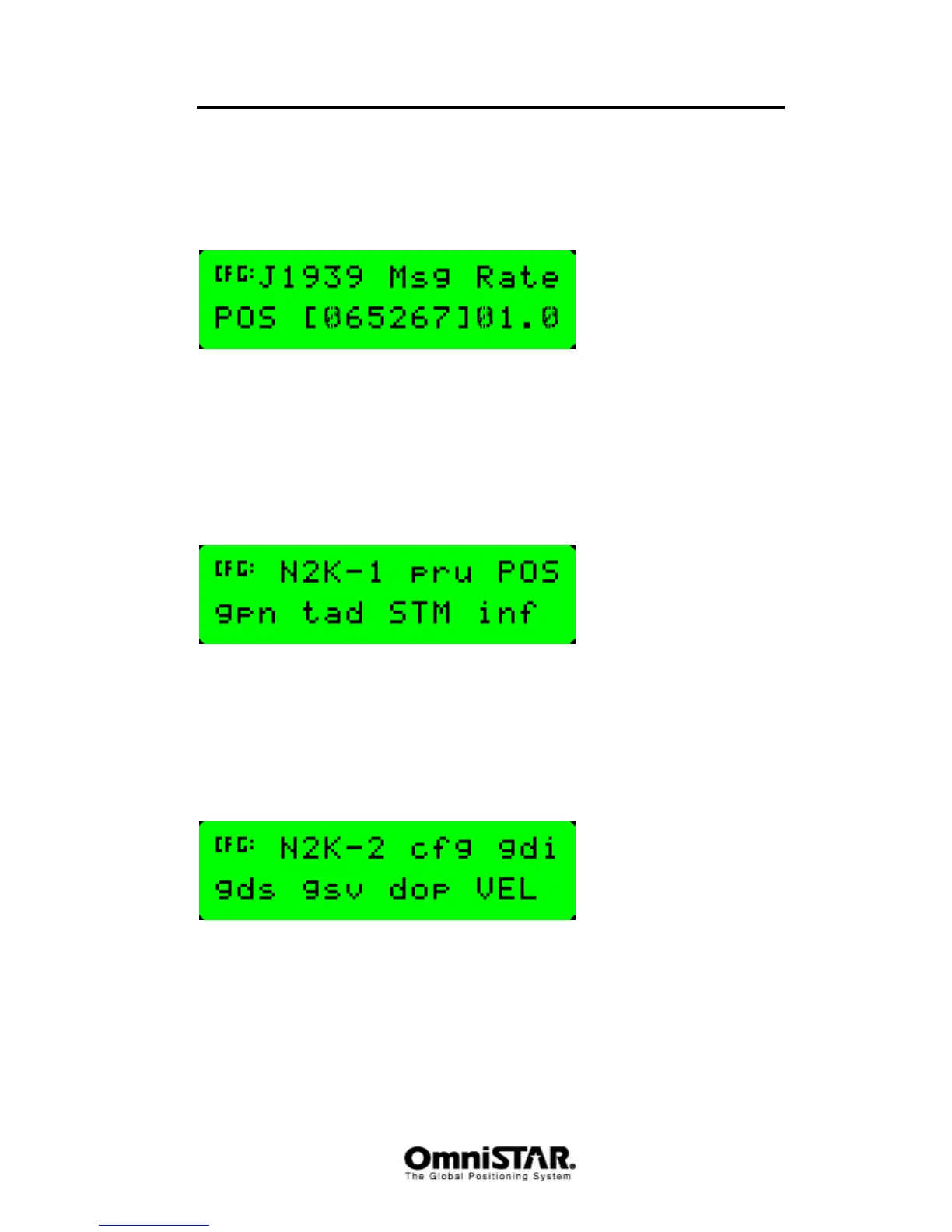

Figure 100: CAN-bus message rates
The CAN Msg Rate configuration controls the message rate of each message
output to the CAN bus. The message rate can be set from 0.2 to 65.4 in 0.2
increments. The message rate indicates the time between two subsequent
messages of the same type. Default setting for POS, TIME and VEL is 01.0,
i.e. 1 Hz output.
NMEA 2000 Messages 1
Figure 101: NMEA 2000 messages 1
The NMEA 2000 Messages screens are used to control the NMEA 2000
message outputs to the CAN bus. Messages displayed in upper case are
output, messages displayed in lower case are not. Default, only the POS and
STM messages are output.
NMEA 2000 Messages 2
Figure 102: NMEA 2000 messages 2
The NMEA 2000 messages 2 screen is similar to the NMEA 2000 messages 1
screen, only controlling different messages to be output.
