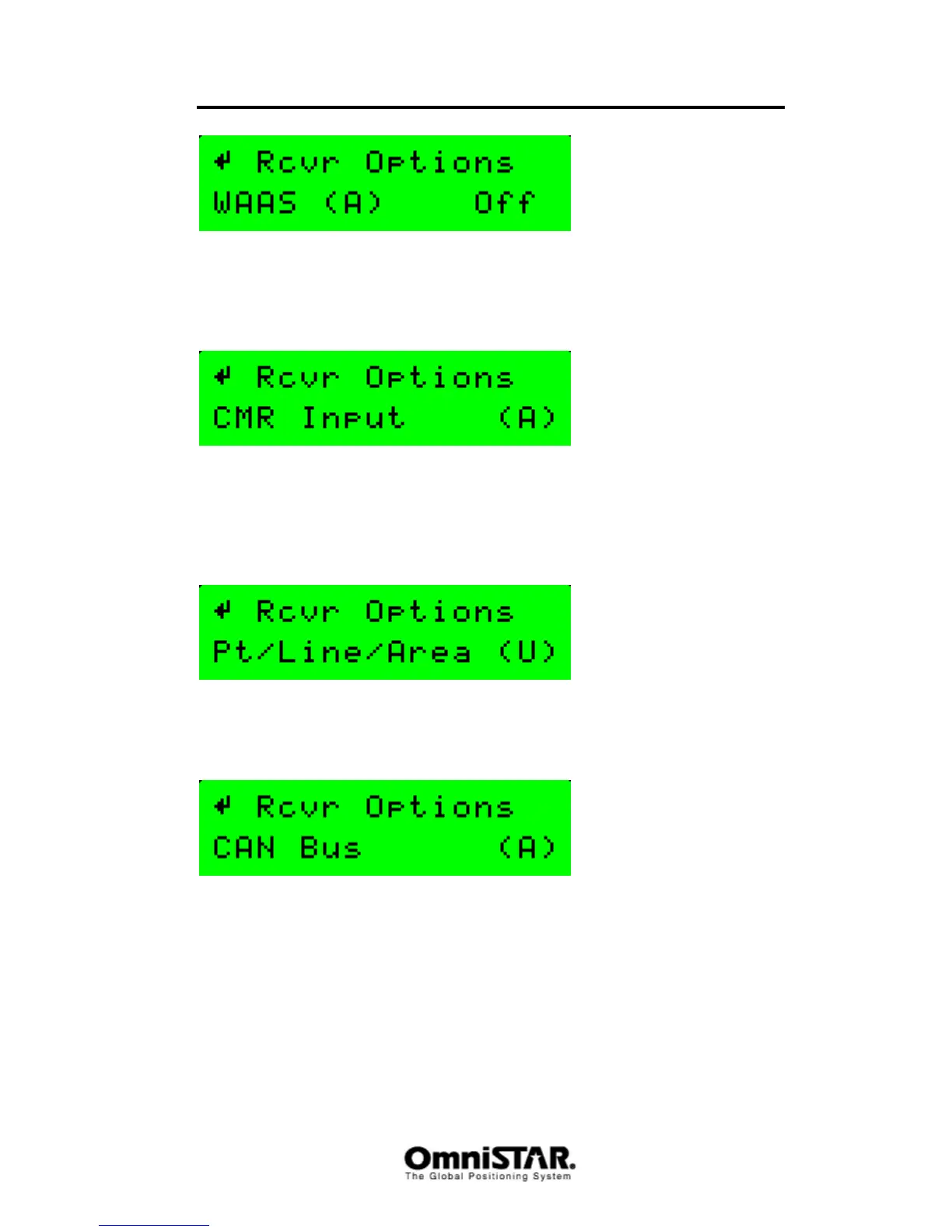

Figure 57: Receiver Options: WAAS
The WAAS screen shows whether or not the receiver is capable of receiving
and processing WAAS, MSAS and EGNOS signals and whether or not the
receiver is currently using either WAAS, MSAS or EGNOS corrections.
Figure 58: Receiver Options: CMR Input
The CMR Input screen shows whether or not the receiver is capable of
processing CMR messages. CMR is a message format used in RTK mode. In
order to be able to receive CMR messages, the data port connected to the
RTK radio receiver should be set to the RtkLnk protocol.
Figure 59: Receiver Options: Point/Line/Area
This option allows the user to navigate DGPS-aided to a point or along a line
or a circular area.
Figure 60: Receiver Options: CAN Bus
The CAN Bus screen shows whether or not the receiver is capable of
supporting the CAN (Controller Area Network) bus protocol.
